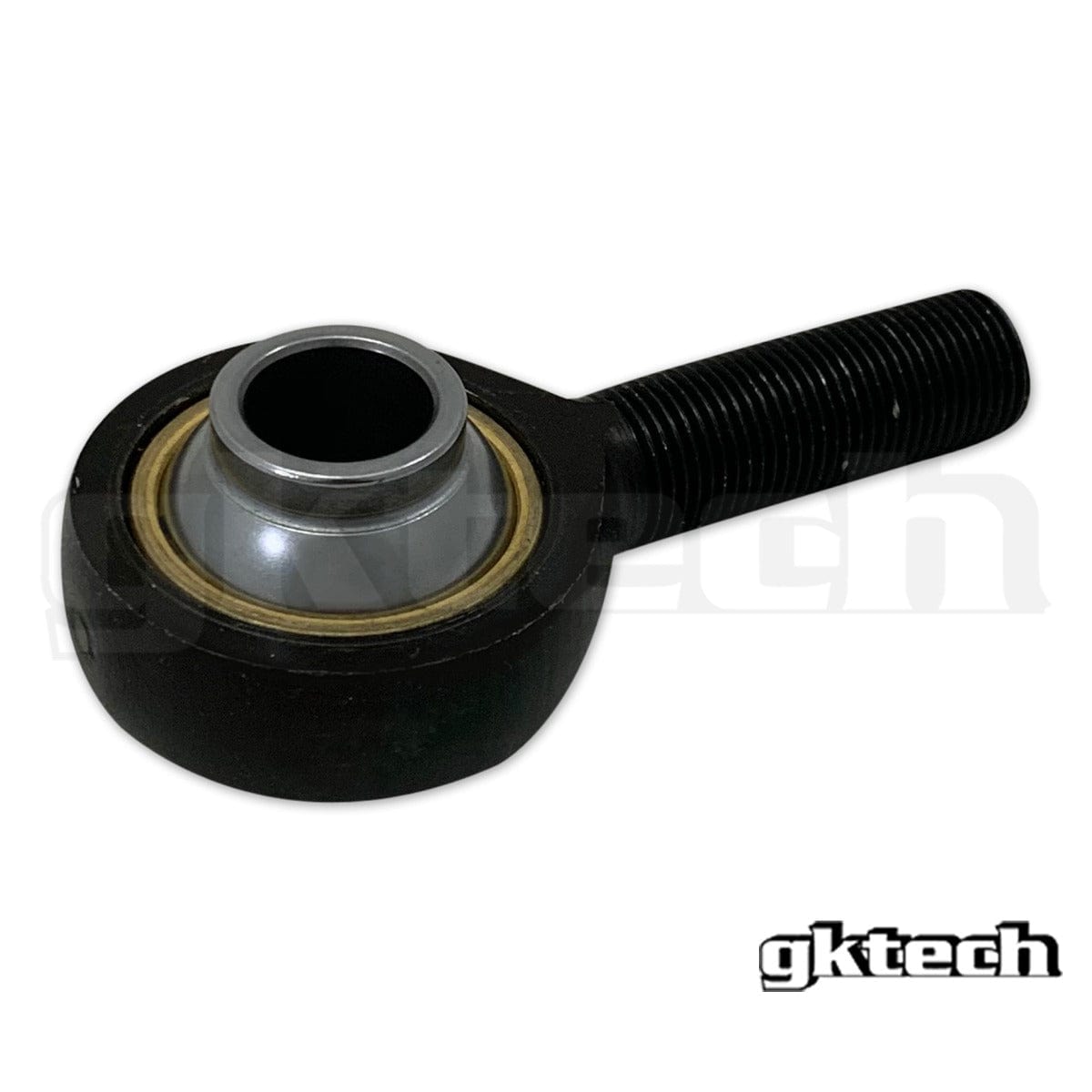

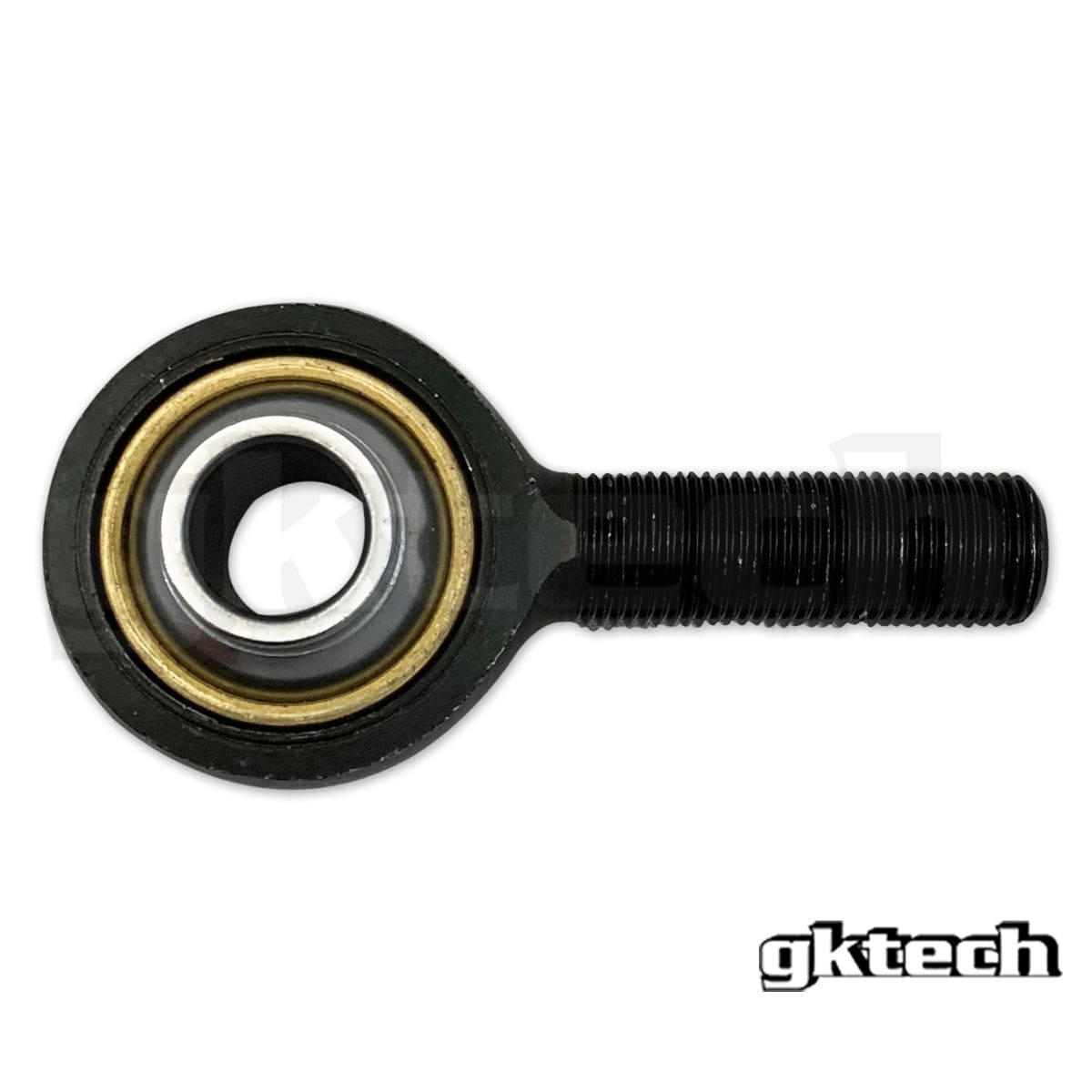

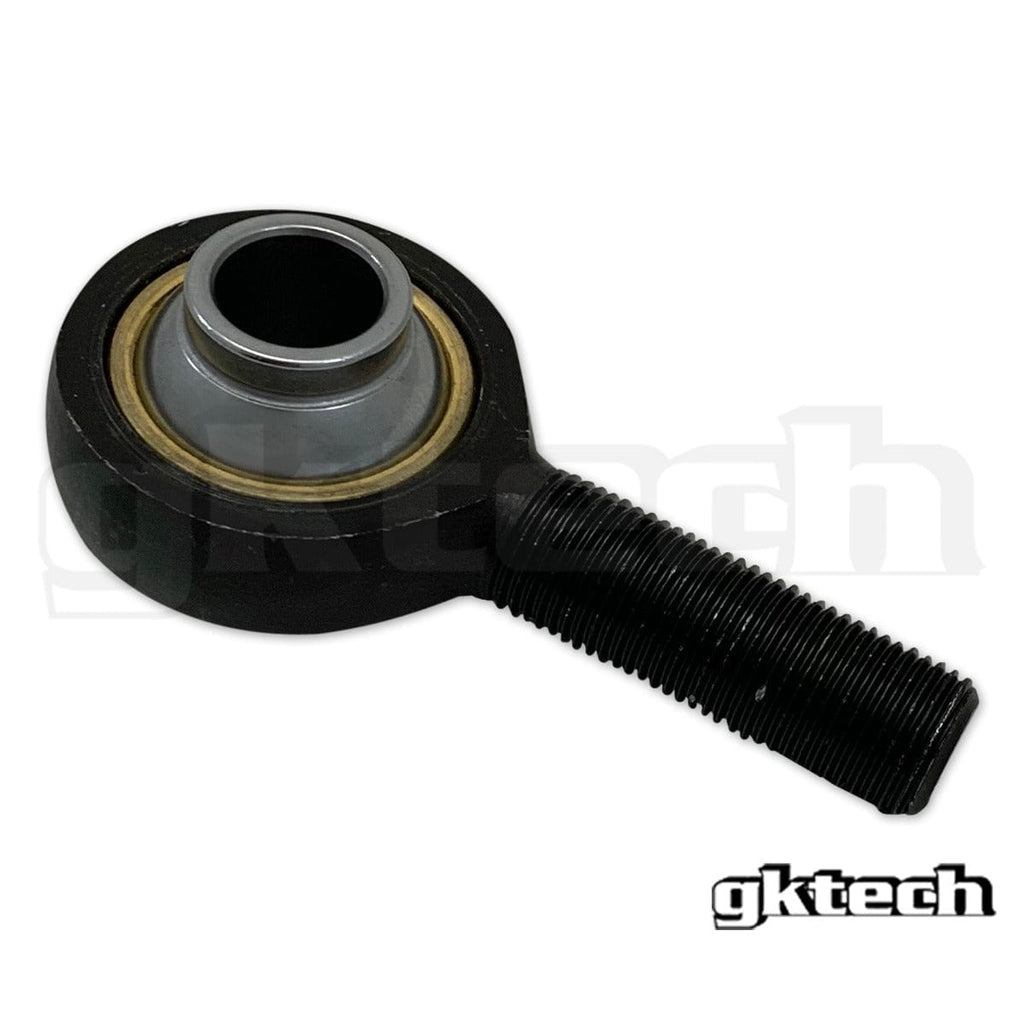

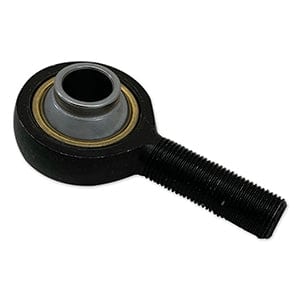

GKTech Replacement tie rod end bearing (PCYML10TS)
Suits a wide range of Nissan, Toyota models
Brand: GKTech
Part Number: PCYML10TS
Description:
GKTech Replacement tie rod end bearing, part number PCYML10TS. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Silvia S14, Nissan Silvia S15, Nissan Skyline GT-R R32, Nissan Skyline GTS-T R32, Nissan Skyline GT-R R33, Nissan Skyline GTS-T R33, Nissan Skyline GT-T R34, Nissan 350Z Z33, Nissan 370Z Z34, Nissan Skyline V35, Nissan Skyline V36, Nissan 300ZX Z32, Toyota 86 ZN6. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Replacement PCYML10TS tie rod end bearing Used in the following GKTECH products:
M12/M14 tie rod ends SKU;
M125-TROD
M145-TROD
Z33X-SSTR
Z34X-SSTR
Z33X-TROD
GTRX-TROD
GT86-SSTR
XE10-SSTR
Sold individually
PCYML10TS
| IMPERIAL |
METRIC |
| ROD END BALL BORE SIZE |
ROD END BALL BORE SIZE |
| 0.6250 in |
15.8750 mm |
| ROD END BALL WIDTH |
ROD END BALL WIDTH |
| 1.3750 in |
34.9250 mm |
| THREAD LENGTH |
THREAD LENGTH |
| 2.0000 in |
50.8000 mm |
| THREAD SIZE |
THREAD SIZE |
| 5/8 - 18 UNF LH |
5/8 - 18 UNF LH |
| ROD END HEAD DIAMETER |
ROD END HEAD DIAMETER |
| 2.0000 in |
50.8000 mm |
| ROD END MISALIGNMENT ANGLE |
ROD END MISALIGNMENT ANGLE |
| 64 degrees |
64 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) |
ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs |
13,739 kg |
| ROD END MATERIAL |
ROD END MATERIAL |
| Chromoly |
Chromoly |
| LUBRICATION |
LUBRICATION |
| PTFE lined |
PTFE lined |
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan 350Z Z33 (2002–2009), VQ35DE
- Nissan 370Z Z34 (2009–2020), VQ37VHR
- Nissan Skyline V35 (2001–2007), VQ35DE
- Nissan Skyline V36 (2006–2014), VQ37VHR
- Nissan 300ZX Z32 (1989–2000), VG30DETT
- Toyota 86 ZN6 (2012–2021), FA20
