GKTech S-chassis car specific handbrake mount
Suits Nissan S13, S14, S15
Brand: GKTech
Part Number: S13X-HBRM, S14L-HBRM, S14R-HBRM
Description:
GKTech S-chassis car specific handbrake mount. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Silvia S14, Nissan Silvia S15. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
When installing a hydraulic handbrake in your car, you'd typically have to drill holes or weld a bracket in place. With the value of S-chassis' on the increase and the desire for people to not want to have to chop/cut/drill/weld to their cars, GKTech has made these brackets.

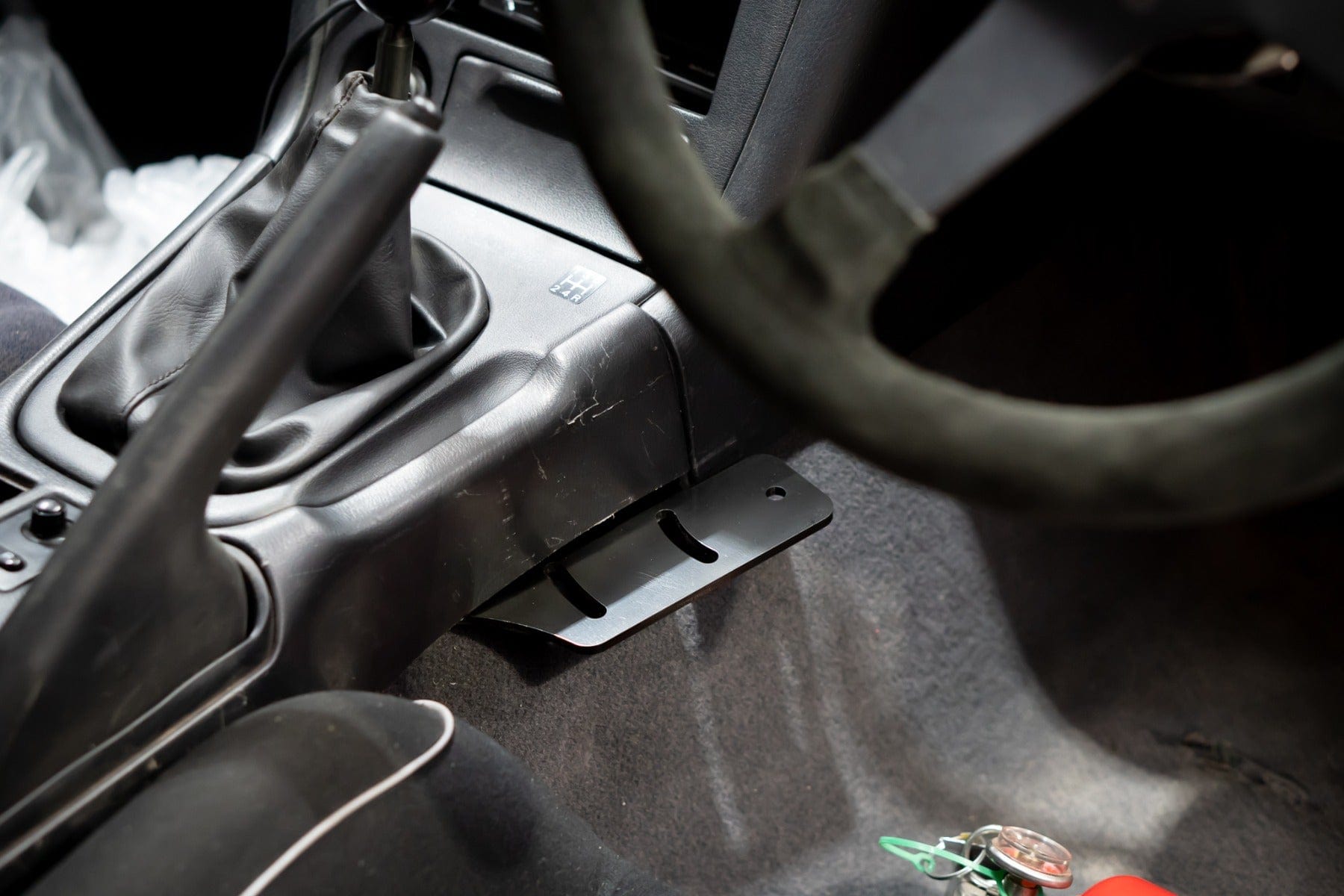

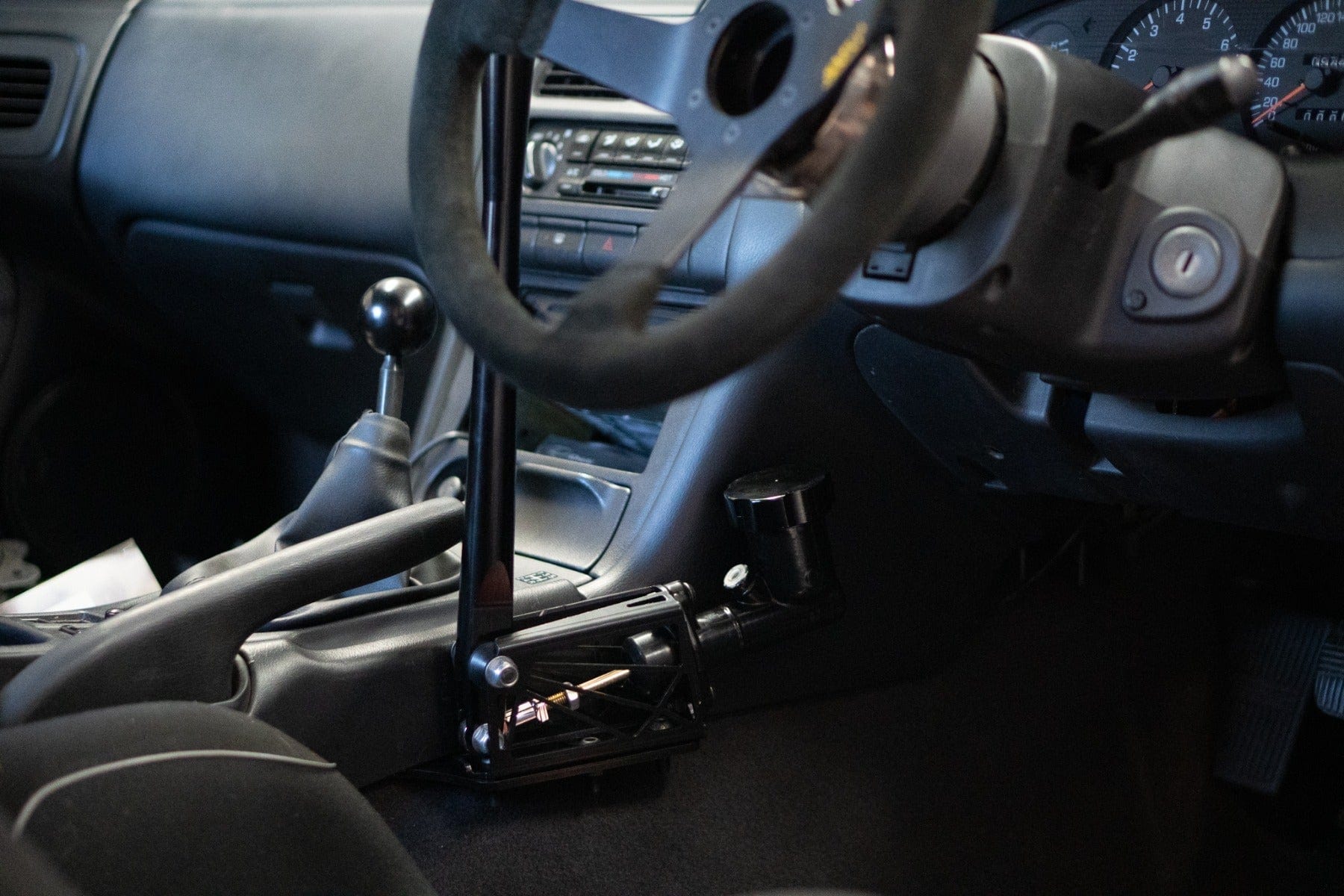

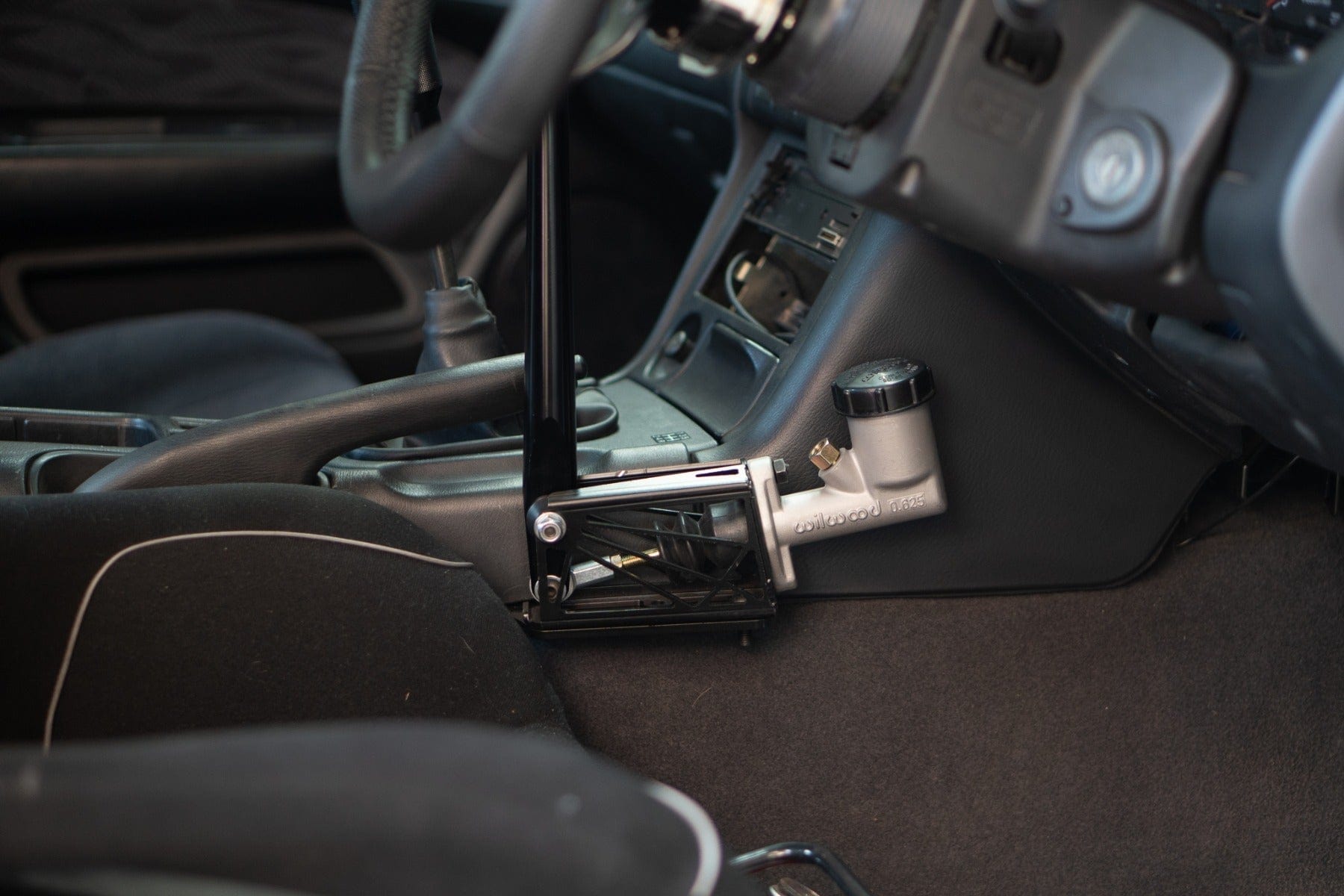

This bracket bolts to the stock gearbox shifter hole and allows you to fit their hydraulic handbrake assembly without modifications to either the gearbox tunnel or even the center console.
- 100% direct fit with no modifications required to the gearbox tunnel or center console
- Available for either S13/180sx/240sx or S14/S15 and fits both LHD and RHD variants.

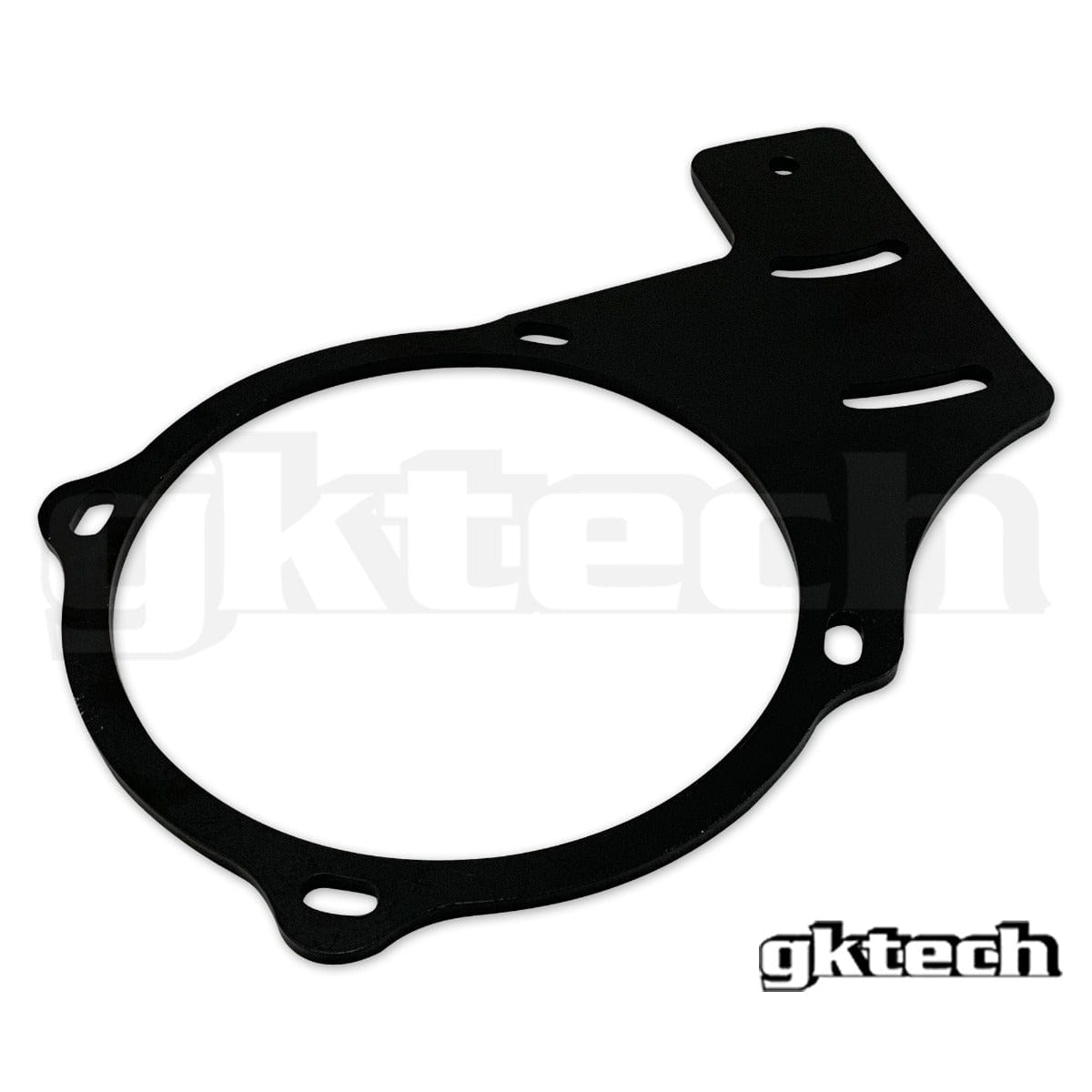

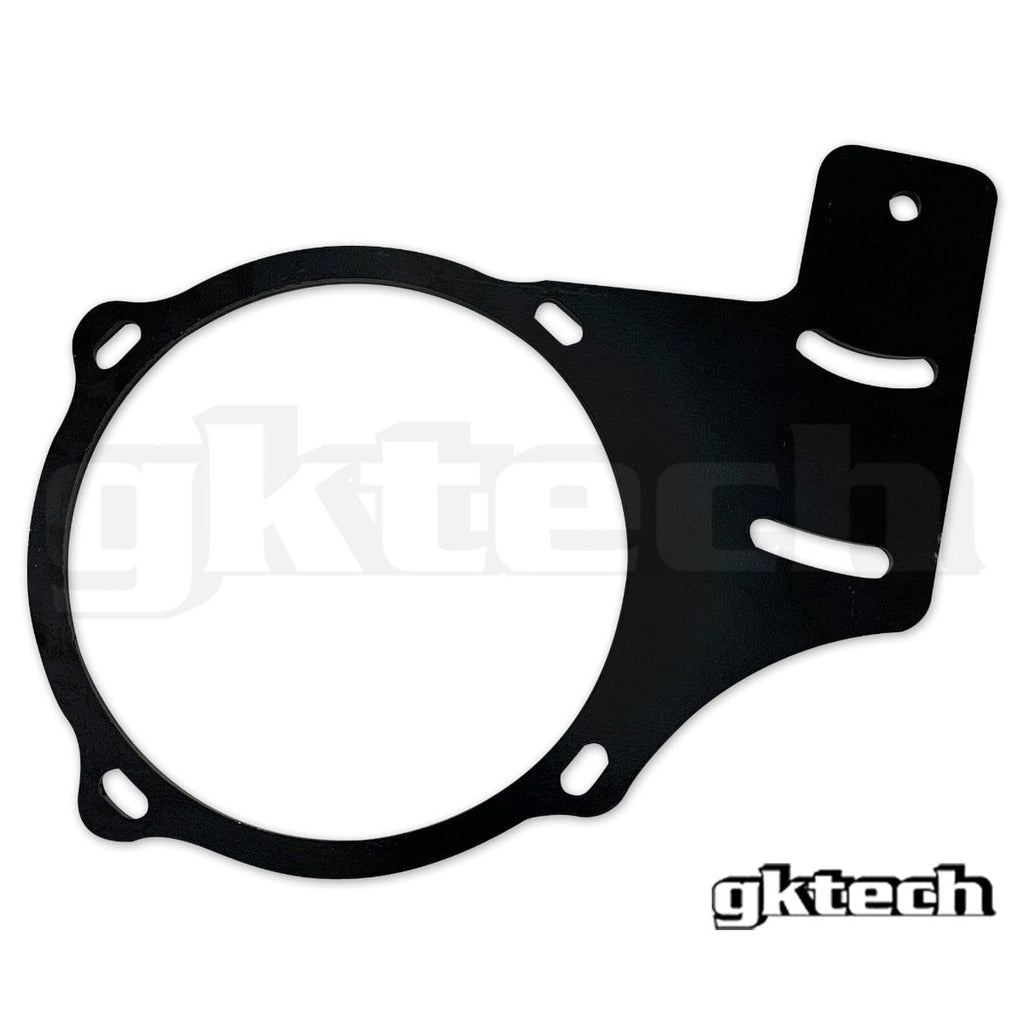

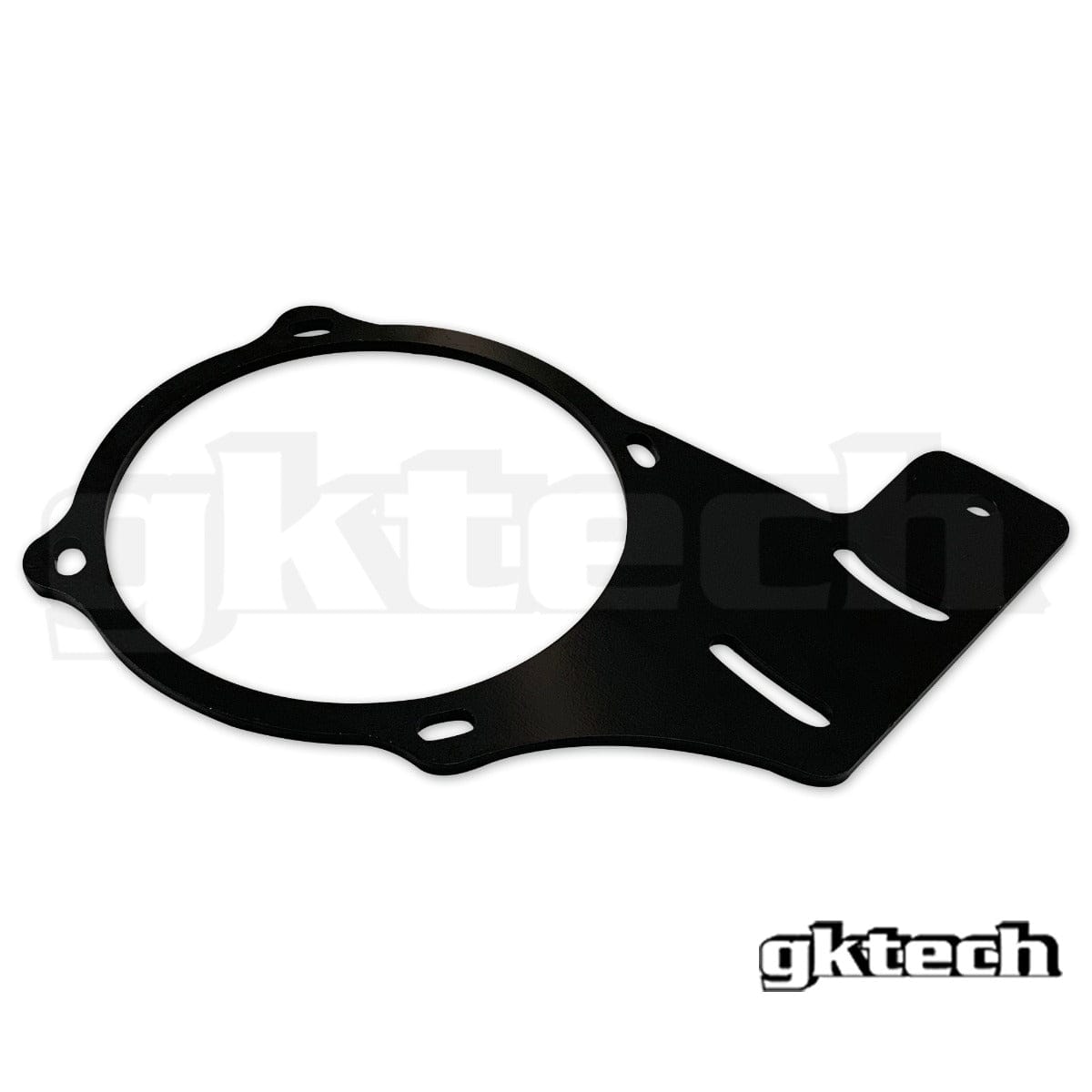

- Laser cut from 5mm thick 4130 Chromoly sheet and zinc coated for longevity
- Includes 4x replacement M6x20mm bolts
NOTE: On an S15, when using the upright Gktech hydraulic handbrake the handle will come close when using an OEM steering wheel, an aftermarket steering wheel is recommended.
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
Part Numbers
- S13/180SX: S13X-HBRM
- S14/S15 Silvia Left side of console: S14L-HBRM
- S14/S15 Silvia Right side of console: S14R-HBRM
