GKTech S13, 180SX, R32 subframe anti-squat reduction weld in kit (S13X-RLCA)
Suits Nissan S13, R32, Z32, A31, C33
Brand: GKTech
Part Number: S13X-RLCA
Description:
GKTech S13, 180SX, R32 subframe anti-squat reduction weld in kit, part number S13X-RLCA. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Skyline GT-R R32, Nissan Skyline GTS-T R32, Nissan 300ZX Z32, Nissan Cefiro A31, Nissan Laurel C33. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.

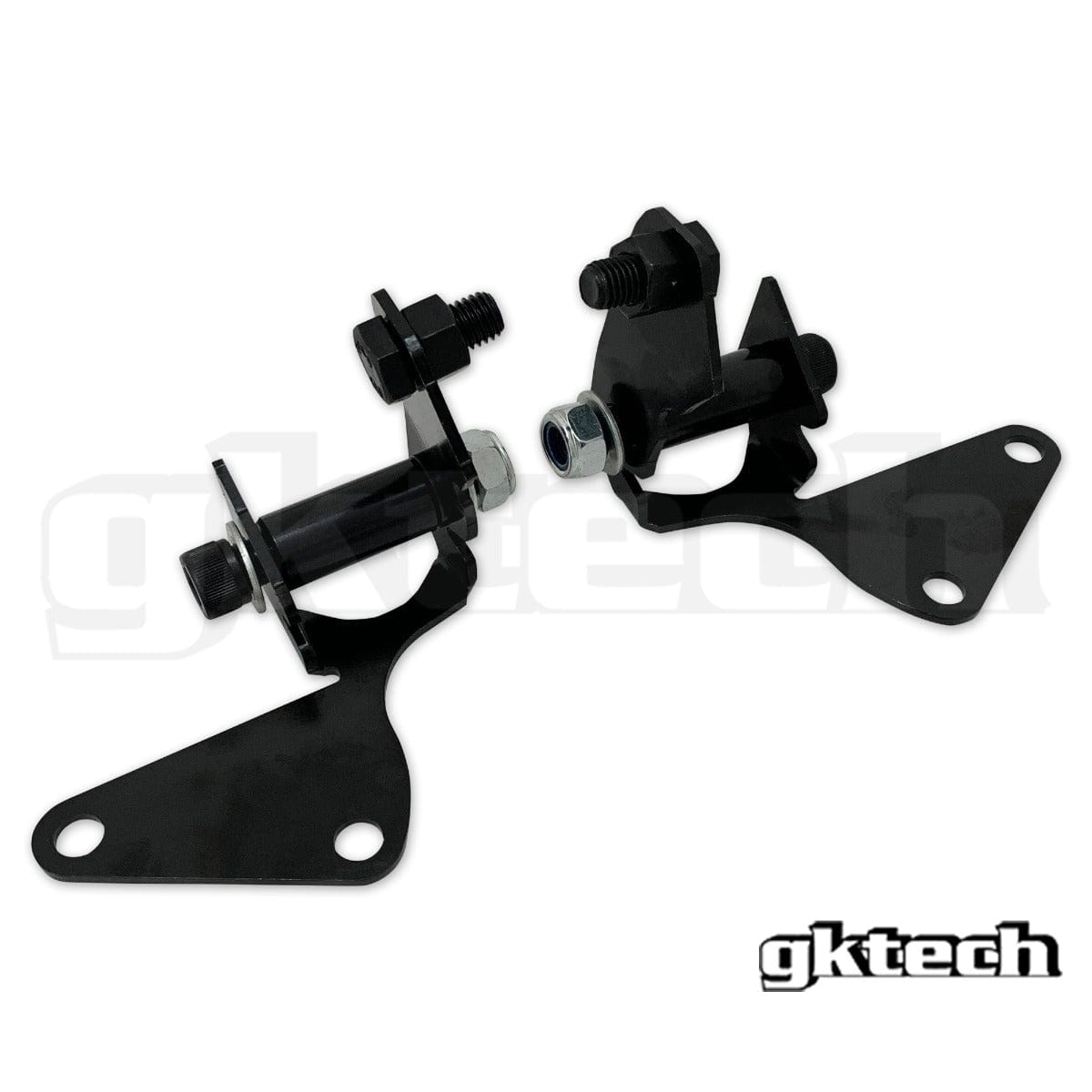

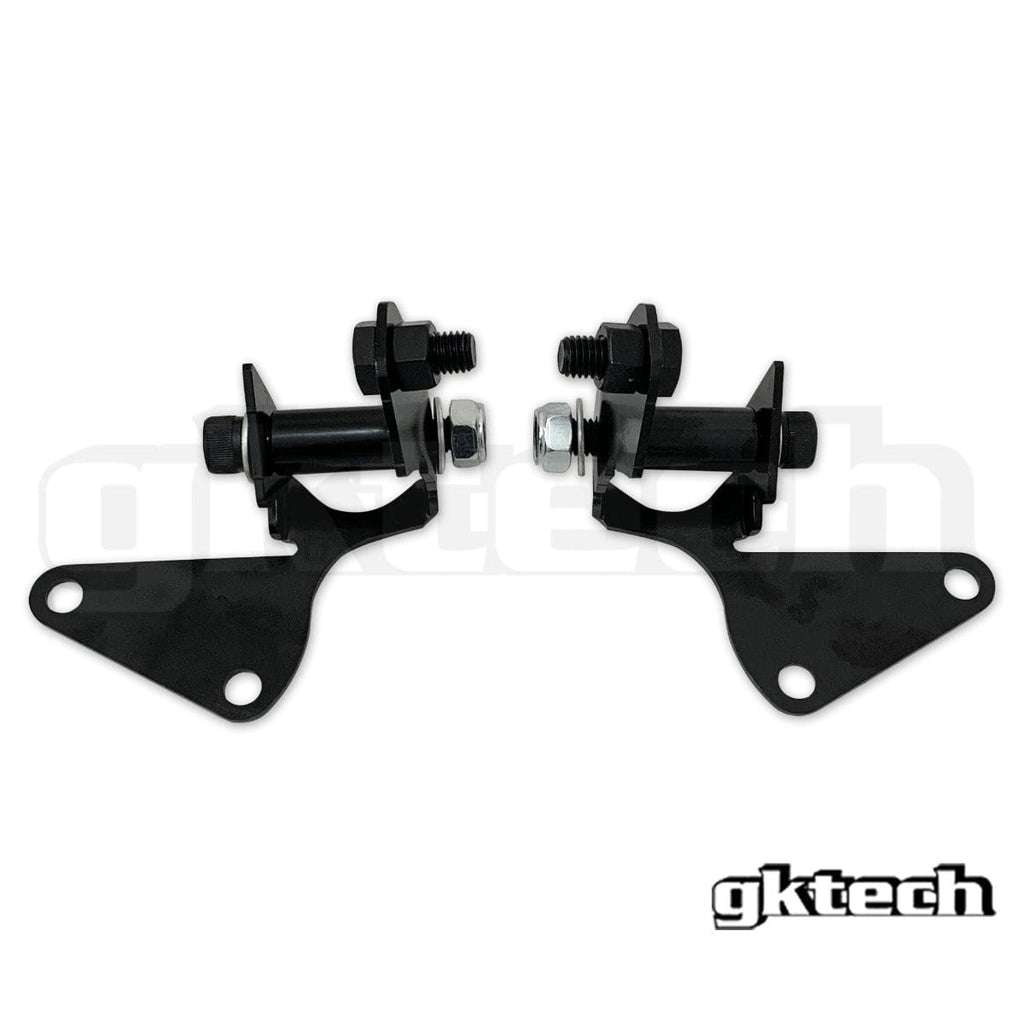

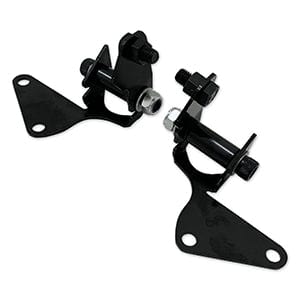

The GKTECH S13 anti-squat reduction weld in kit has been designed for those with an S13 (or R32) rear subframe that want an increase in rear-end grip. Designed from a 3D scan with the addition of CMM data the brackets relocate the front pick up point for your rear lower control arm altering your suspension curves.
Laser-cut, steel, and with simple step by step instructions makes modifying your subframe a heap easier than attempting to do it yourself without guidance.
S13/R32 rear subframes have a higher anti-squat value of 45%, changing the pitch of the rear lower control arm by relocating the front pick up near 2 inches lower you are replicating the geometry of an S14/S15 and changing the anti-squat value to 0%.
This gives further traction through corner exit, bumps etc by allowing the car to squat (and actually use the suspension as intended). This is a common modification for anyone looking to get more forward bite on their S13 and GKTech’ve now made it easier than ever.
In addition to reducing the anti-squat value, roll center is raised 20mm increasing roll stiffness, anti-lift is reduced from 80% to 20% assisting in braking by reducing wheel travel and preventing droop when hard braking.
Bump steer is also reduced by 6mm at 100mm compression/rebound. In short, this is a MUST for S13/R32 owners looking for more traction.
NOTE: due to the increase in misalignment in the rear LCA bushes, using aftermarket LCA's that run spherical bearings/heims or spherical bearing conversion for your OEM rear LCA is recommended as sold here: S/R Chassis OEM rear LCA spherical bearing upgrade (set of 4)
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan 300ZX Z32 (1989–2000), VG30DETT
- Nissan Cefiro A31 (1988–1994), RB20DET
- Nissan Laurel C33 (1989–1993), RB20DET
