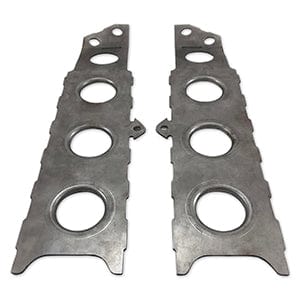

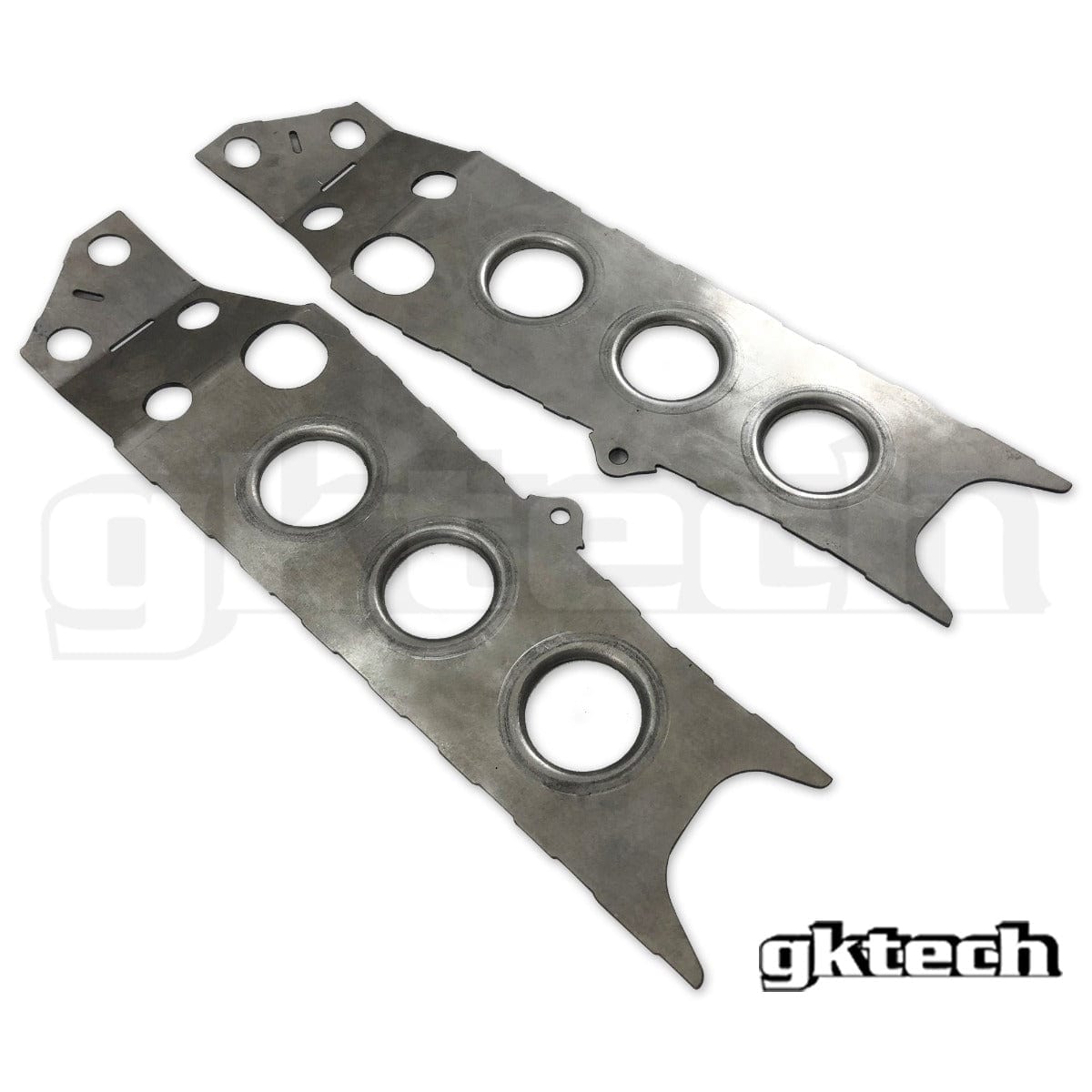

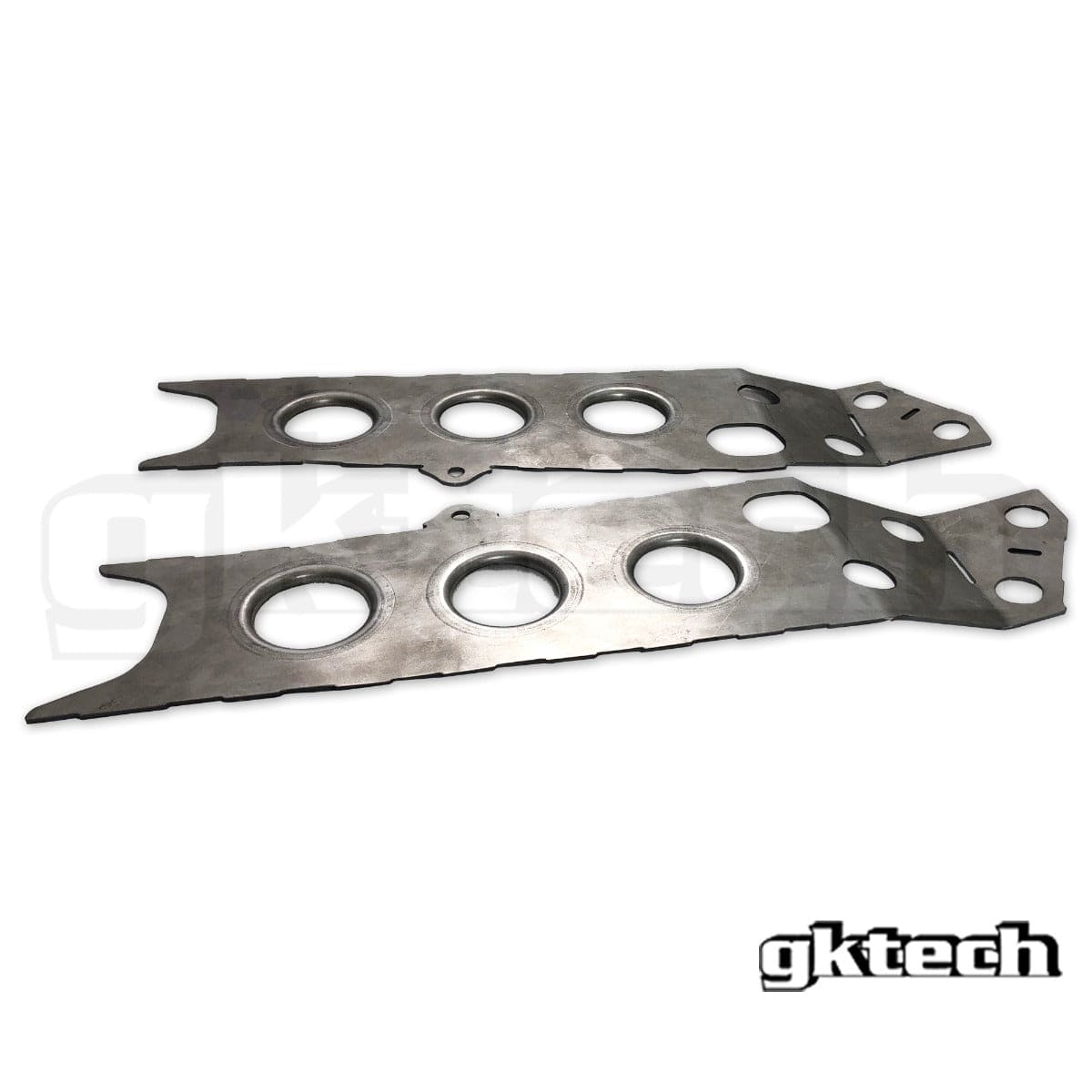

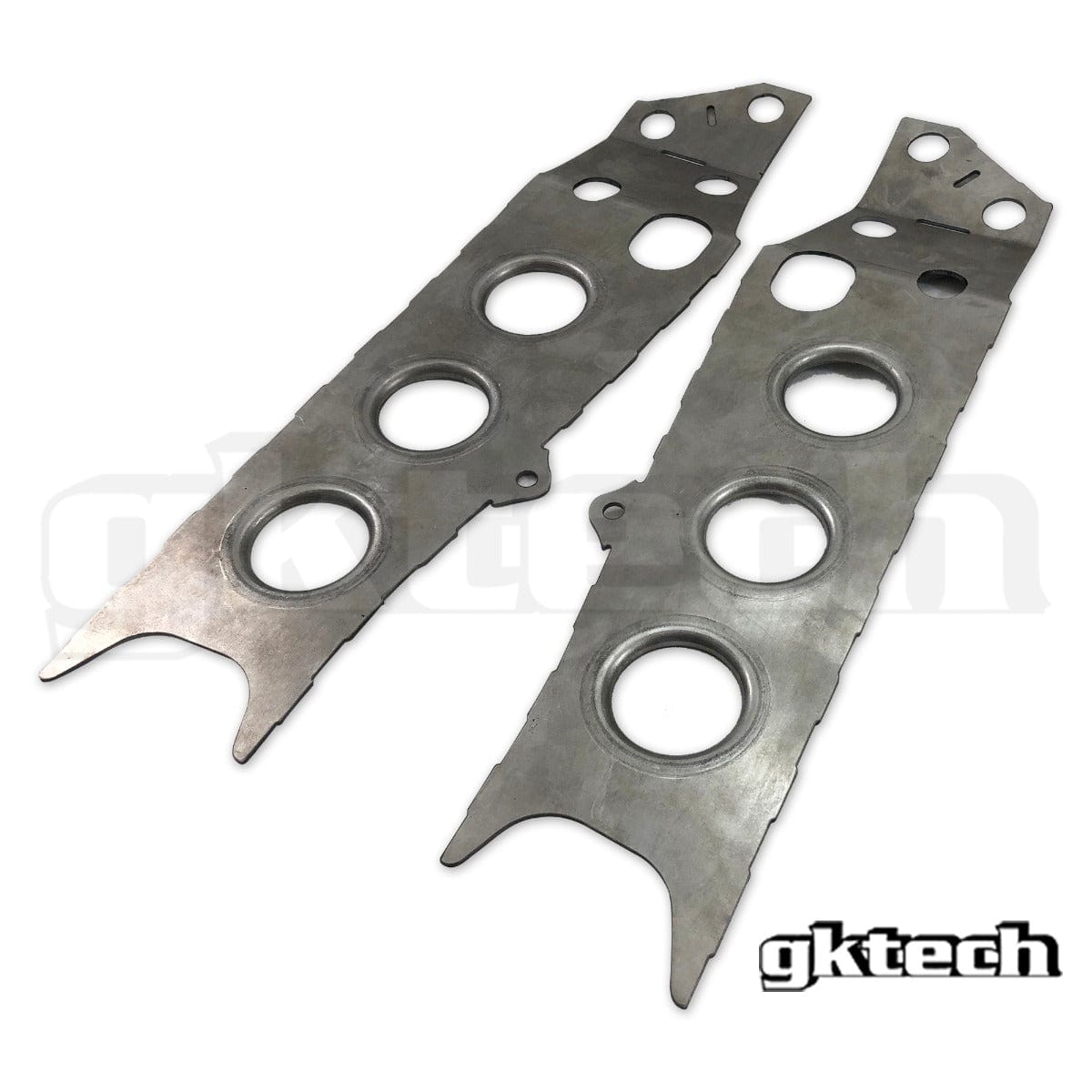

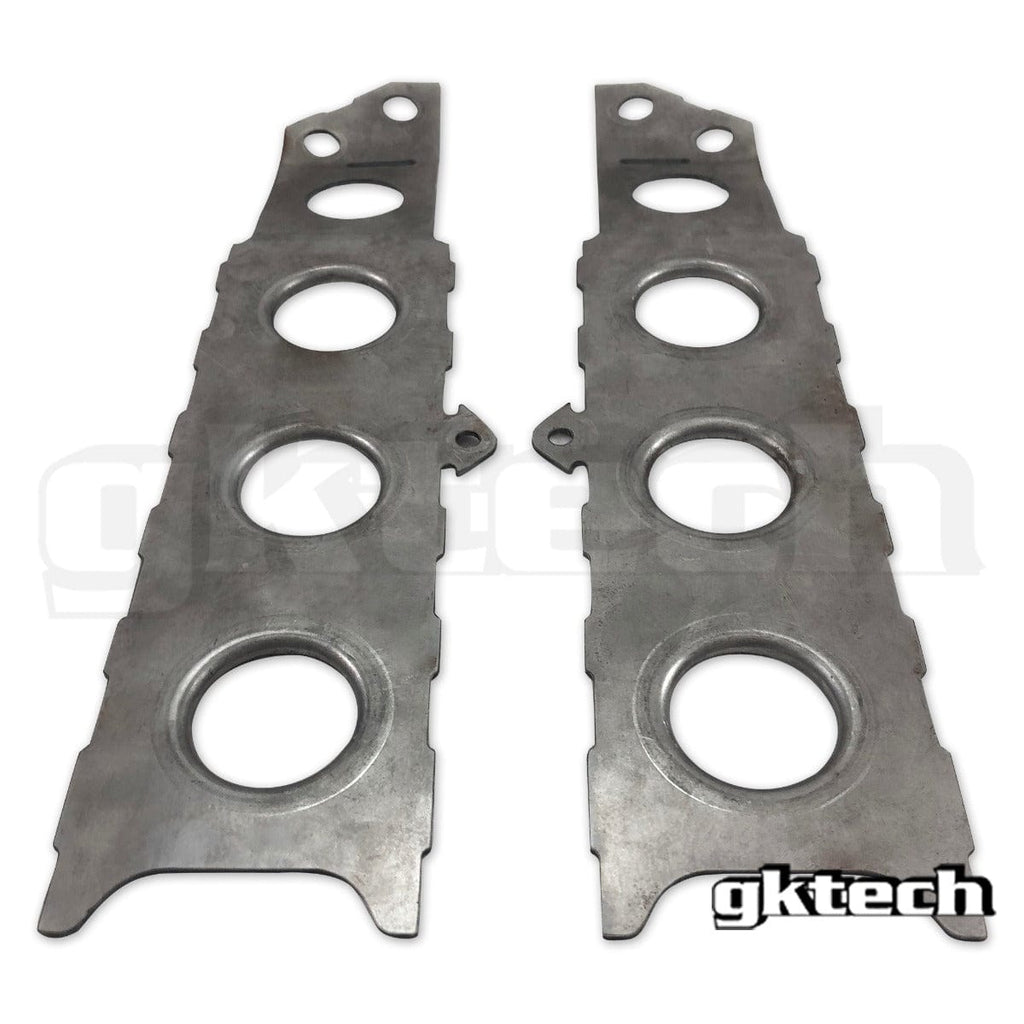

GKTech S-Chassis K-Frame, Caster mount weld in reinforcement plates
Suits Nissan S13, S14, S15
Brand: GKTech
Part Number: S13X-KFRM, S145-KFRM
Description:
GKTech S-Chassis K-Frame, Caster mount weld in reinforcement plates. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Silvia S14, Nissan Silvia S15. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTech weld in K frame/caster rod plates has been designed to help brace one of, if not the most necessary area on your S-chassis. Caster rods put an immense amount of load on the K frame and the K frame itself flexes under load a visually noticeable amount. GKTech's weld in plates will help eliminate this which will result in better overall handling and steering feedback. The added benefit is that if you ride over a ripple strip at the race track (or a gutter on the street) the flat bottom of the K frame will help glide you over rather than you getting stuck and pulling half your car to pieces.
- CAD Designed
- CNC Laser Cut from 2mm C30 steel
- Dimple died for increased rigidity
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
Part Numbers
- S13/180SX: S13X-KFRM
- S14/S15: S145-KFRM
