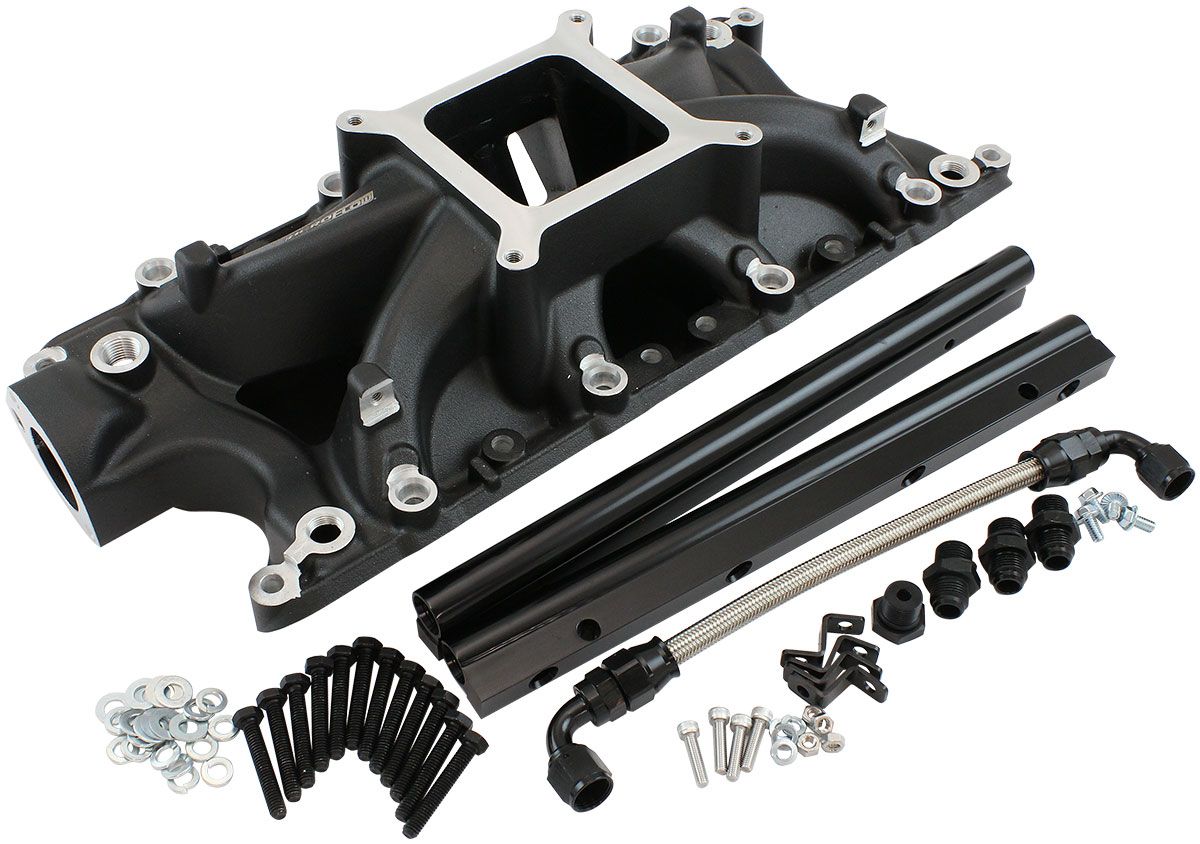

SB Ford 289-302 Windsor EFI Air Gap Single Plane Intake Manifold, Black Finish 2500 - 7500 RPM, Square Bore Carburettor Pad, Non-EGRgines operating in the 2500 to 7500 rpm range. In most cases, these manifolds accept factory OE water necks, air conditioning, alternator and H.E.I. ignition systems.
- Fits Small Block Ford Windsor 289-302 Cubic Inch Engines.
- Single Plane Configuration.
- EFI Applications ONLY.
- Suits 14mm Full Length Injectors (60.65mm).
- RPM operating range - 2500 to 7500.
- Natural Cast Finish.
Get the maximum power from your engine with this Air Gap Small Block Ford Windsor EFI cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies designed for EFI applications.
The fuel injector bores have back-cut exits in the intake runners for better fuel atomization. The fuel rails, brackets and mounting hardware are included with the manifold for easy installation with the injectors that you choose to use for your combination (fuel injector sold separately). Fuel rail is designed to allow a full length 14mm fuel injector (sold separately).
Specifically designed for 289-302 cubic inch small-block Ford Windsor en
