Single Billet Oil Filter Remote Mount Kit AF64-2042

Fast and easy no mess oil changes are now possible thanks to Aeroflow's UniversalOil Filter Relocation System! This kit is great for mountingan engine oil filter away fromyour engine, to make oil filter changes easier or wherespace is limited in the enginebay.

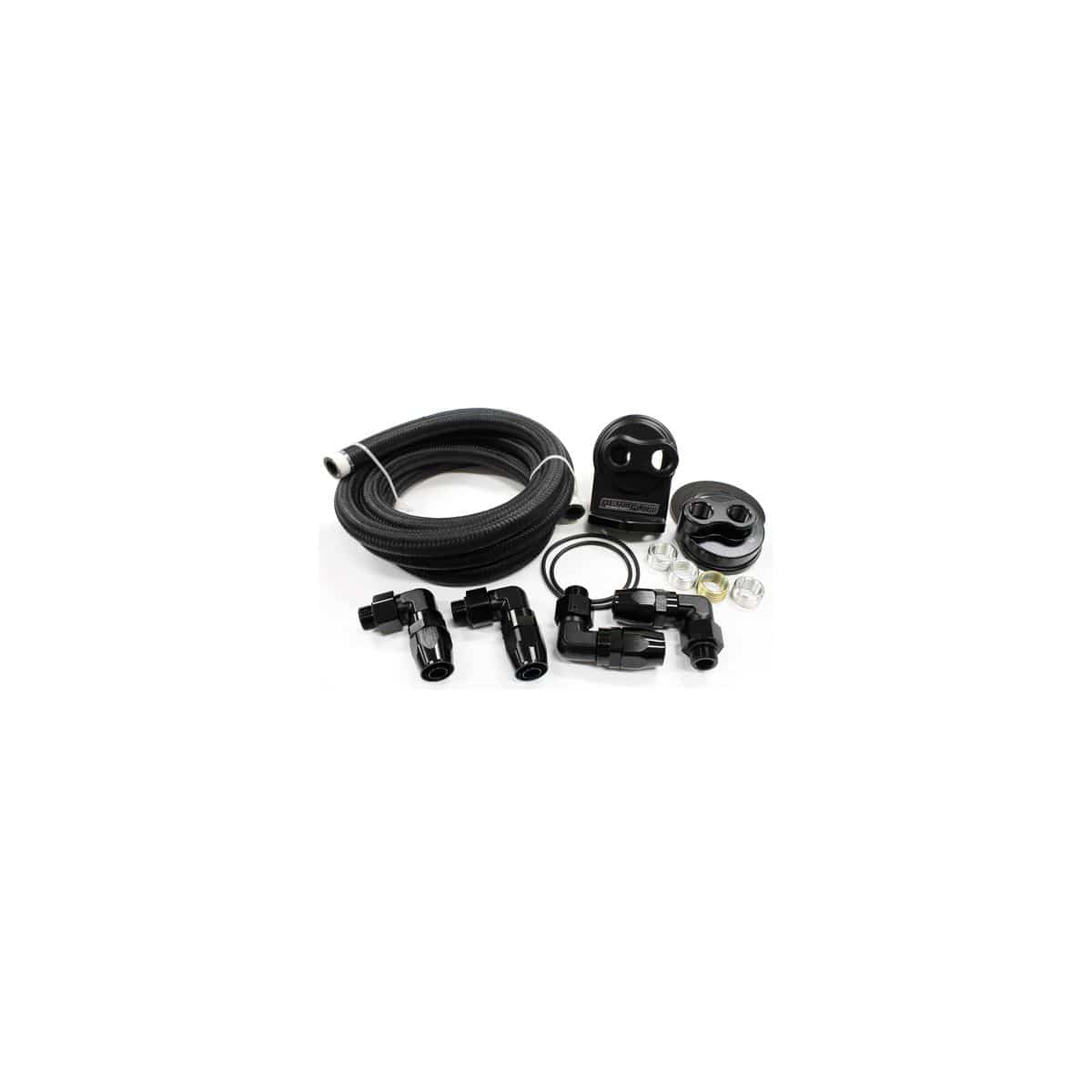

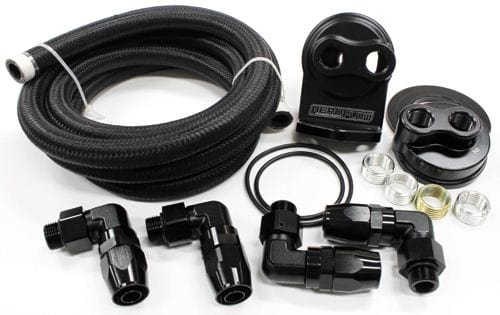

The relocation kit contains a billet remote blockadapter (AF64-2076) to convertthe stock filter landing to anoil passage on the engine block. A billet remote single filter head to mount a single oil filter (AF64-2075). For the universal plumbing we include 2.5 metres (8.2ft) of -10AN 450 series braided hose for custom fit oil lines and 4x anodised black aluminium 90-degree -8ORB to -10AN hose fittings. These one-piece fittings eliminate messy sealants, thread tape and the chance of cracking the housingdue to over tightening.

The AF64-2075 remote oil filter head feature two labelled inlet and outlet -8AN ORB ports provided for plumbing the engine oil to and from theoil filter remote mount. The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Integrated one piece bracket which can be used to make installation easier in variousuniversal applications.

This product has a 3/4-16 filter thread insert supplied with kit. Which can also be purchased separately (AF59-2075) if required.

Oil filters designed to work with this product are either:
AF2296-3001 (RYCO Z9) large oil filter with internalbypass.
AF2296-2008 (RYCOZ145A) small oil filter with no internal bypass

The AF64-2076 remote block adapteris a spin on adapter which converts the oil filter landing on the engine block toan oil passage for use with a remote oil cooler and/or a remote oil filter. The main body is made from billet 6061 aluminium, then anodised blackfor great looks and corrosion resistance. Featuring two -8ORB ports that are labelled inlet and outlet allow you to run custom plumbing braided orrubber hoses. Included in thisremote block adapters are various universal thread adapters to suit a wide variety of engines.

This includes thefollowing thread adapters:
Thread inserts (3/4”-16 internal thread)
3/4”-16 thread insert (Gold)
13/16”-16 thread insert (Blue)
M18 x 1.5mmthread insert (Silver)
M20 x 1.5mm thread insert (Black)
M22 x 1.5mm thread insert (Green)
