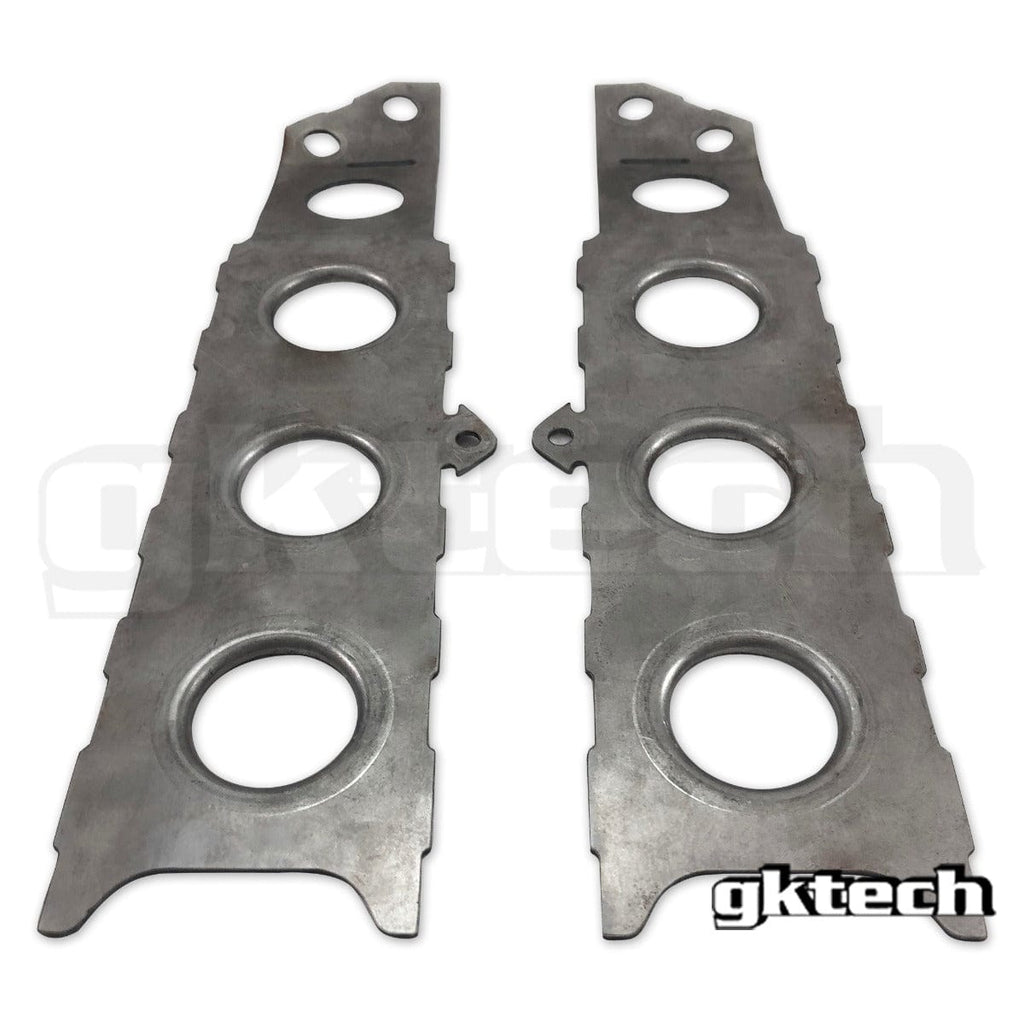

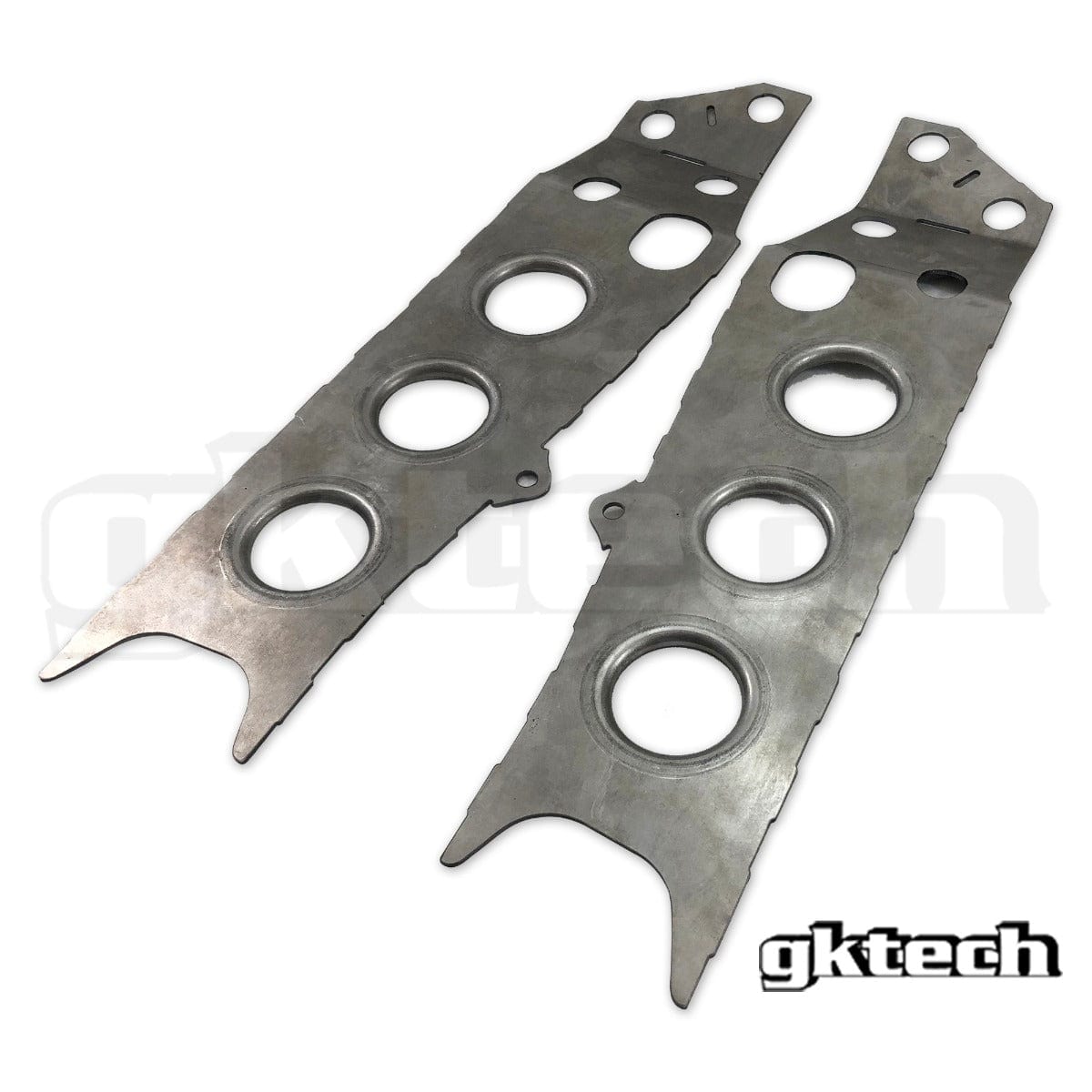

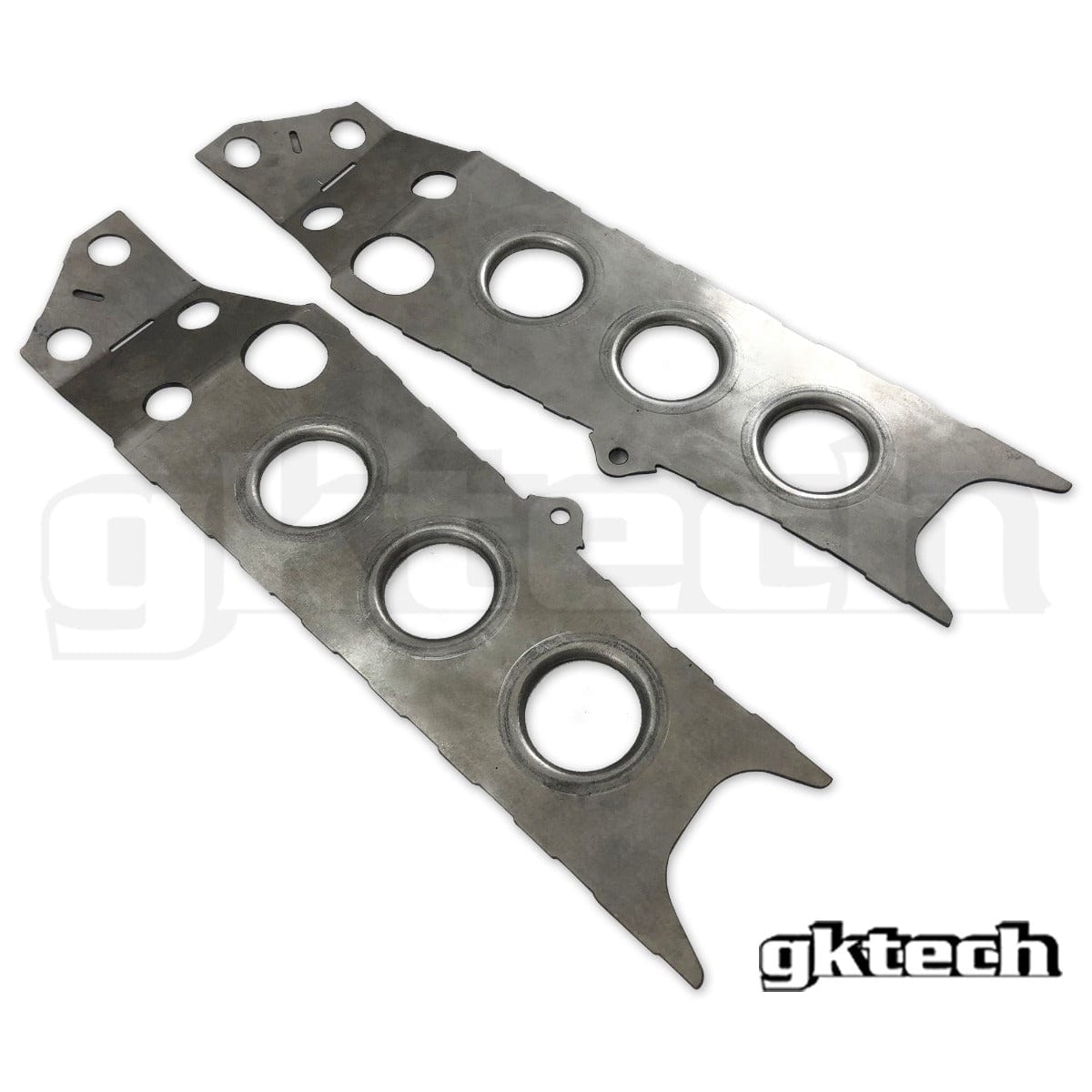

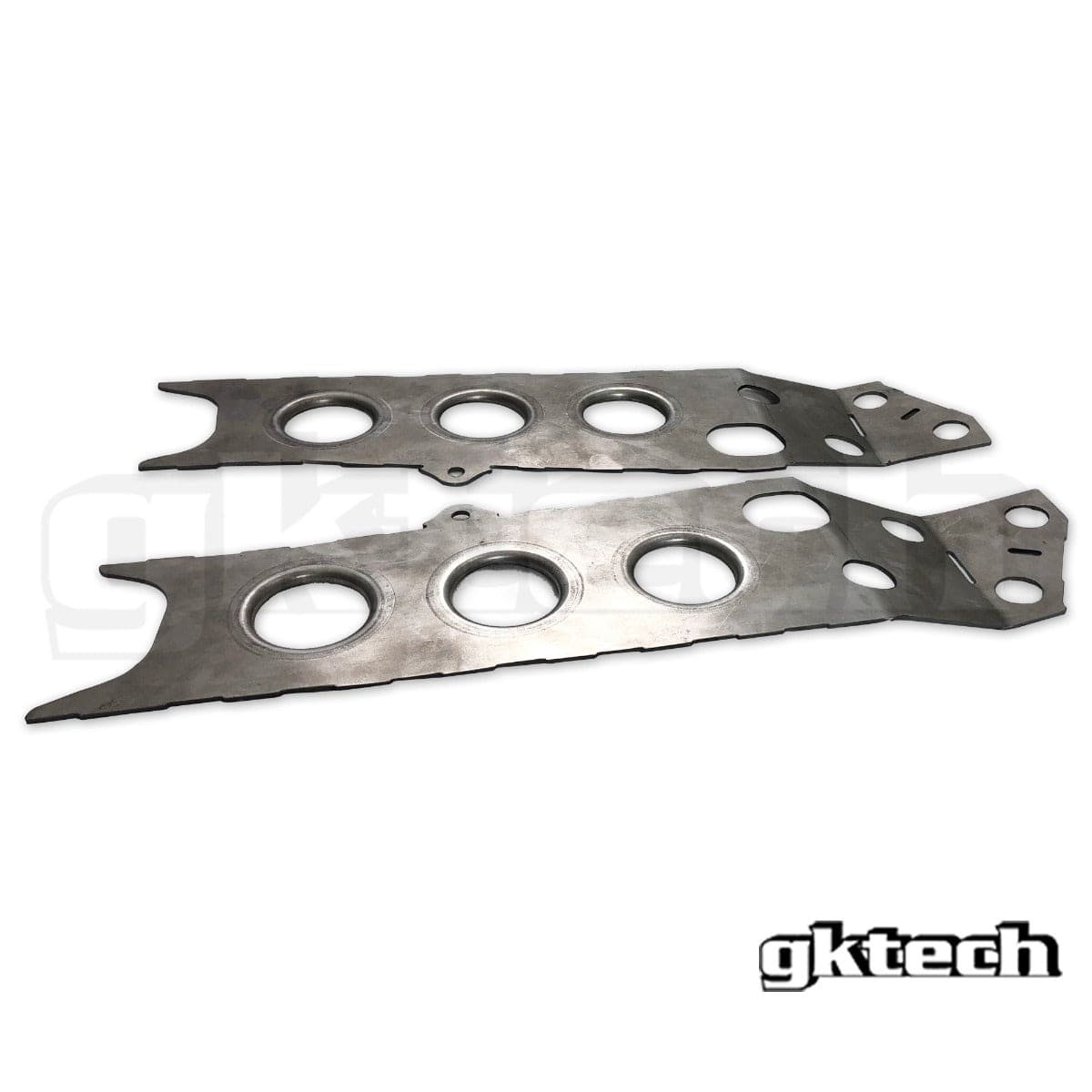

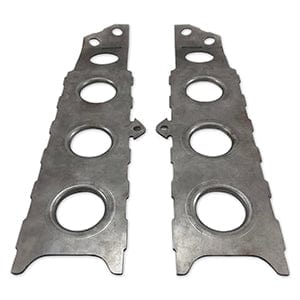

GKTech Skyline K-Frame, tension rod mount weld in reinforcement plates
Suits Nissan R32, R33
Brand: GKTech
Part Number: R32X-KFRM, R33X-KFRM
Description:
GKTech Skyline K-Frame, tension rod mount weld in reinforcement plates. Suits Nissan Skyline GTS-T R32, Nissan Skyline GTS R33, Nissan Skyline GTS-T R33. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTech weld in K frame/tension rod plates has been designed to help brace one of, if not the most necessary area on your Skyline. Tension rods put an immense amount of load on the K frame and the K frame itself flexes under load a visually noticeable amount.
GKTech's weld in plates will help eliminate this which will result in better overall handling and steering feedback.
The added benefit is that if you ride over a ripple strip at the race track (or a gutter on the street) the flat bottom of the K frame will help glide you over rather than you getting stuck and pulling half your car to pieces.
- CAD Designed
- CNC Laser Cut from 2mm C30 steel
- Dimple died for increased rigidity
Suits
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GTS R33 (1993–1998), RB25DE
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
Part Numbers
- R32 Skyline (RWD only): R32X-KFRM
- R33 Skyline (RWD only): R33X-KFRM
