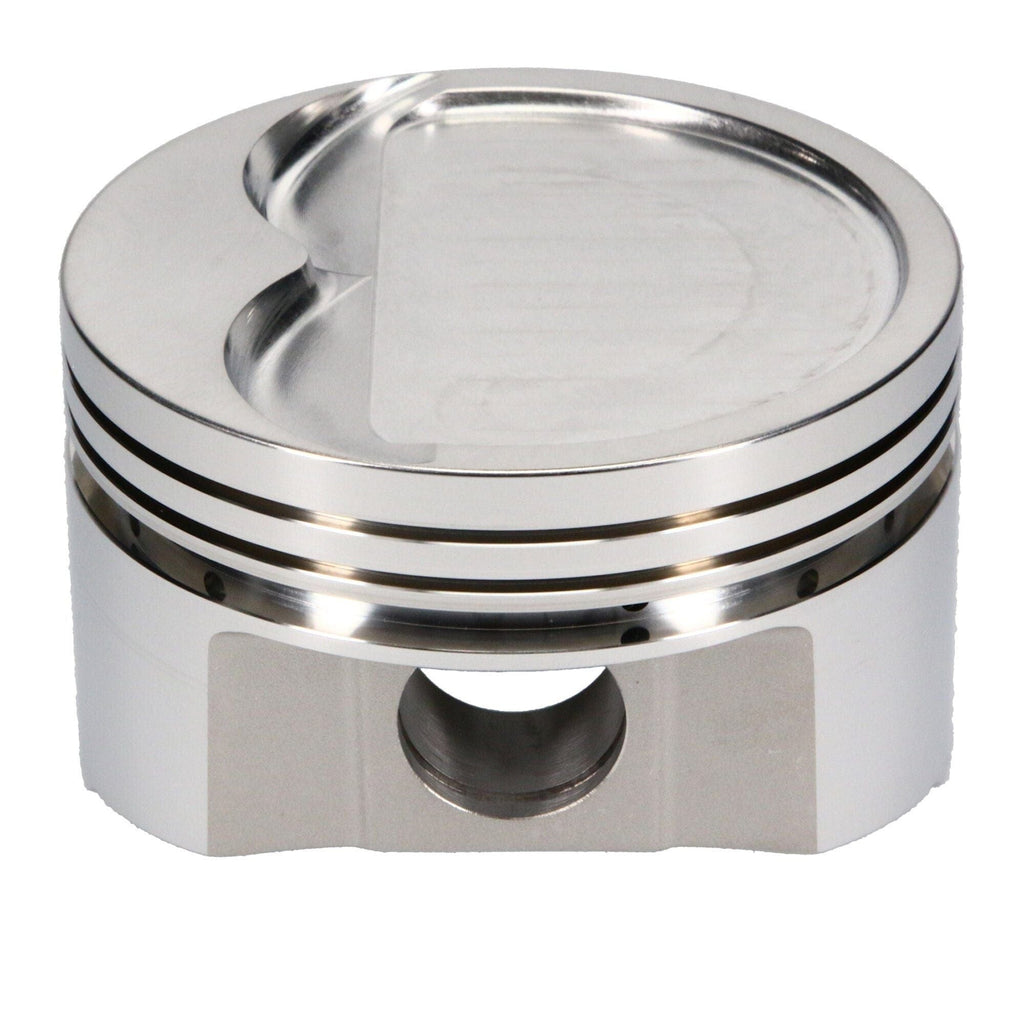

Small Block Chrysler 360 Stroker - Inverted Dome Forged Piston410 c.i., 4.040" bore, 4.000" stroke, 6.125" rod length, -16.9cc dome volumeBrand: SRPPart Number: SRP220157Description: JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminium alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)
Features:
- 4032 low expansion high silicon alloy heat treated to SRP specifications
- Forced Pin Oiler for increased wrist pin lubrication
- Pin fitting and double spiro locks included
- CNC Machined ring grooves accept 1/16, 1/16, 3/16 rings (Sold Separately)
- .984 x 2.750 x .150 straight wall wrist pin included (138 grams)
Specifications:
- Engine: SMALL BLOCK CHRYSLER
- Bore Diameter: 4.040
- Compression Height: 1.460
- Compression Ratio with 60cc chamber volume: 10.8
- Compression Ratio with 65cc chamber volume: 10.3
- Compression Ratio with 70cc chamber volume: 9.8
- Piston Volume: -16.9
- Cylinder Head: 340 WEDGE
- Piston Pin Outside Diameter: 0.984
- Piston Pin Length: 2.750
- Piston Pin Material: 5115
- Ringset Included: No
- Top Compression Ring Thickness: 1/16"
- Second Compression Ring Thickness: 1/16"
- Oil Ring Thickness: 3/16"
- Piston Material: 4032
- Forging Type: FSR
- Piston Avg Weight: 462
- Pin Wall Thickness: 0.150
- Piston Type: Dish
- Ring Set: S100S8-4040-5
