Pro Touring Floater Kit, Less Axles & BrakesWith Cambered Spindles & Toe PlatesSuit 24 Spline AxlesBrand: Part Number: STF5012Description: Simplifies Housing Construction
- Allows weld-endsto be directly aligned with carrier center-line
- Independent spindles available in 0.5°, 1.0°, 1.5° & 2.0° negative camber
- Individual toe plates in 0", 1/16",or 1/8" per side (0, 1/8", or 1/4" total)
Versatility
- Easily alter configuration
- Replace bolt-on spindles or plates to change camber or toe
Safety
- Vehicle weight and side loads are supported by the housing
- Axle shafts only requirement is to transfer torque
- Prevents the possibility of axle flange breakage
Performance
- Each hub is supported by two large taperedbearings
- Drastically increasing load capacity &wheel bearing life
- Solid spacer ensures proper bearing preload
- Eliminates excessive end play
- Prevents piston knock-back
- Pedal travel remains consistent during hard cornering

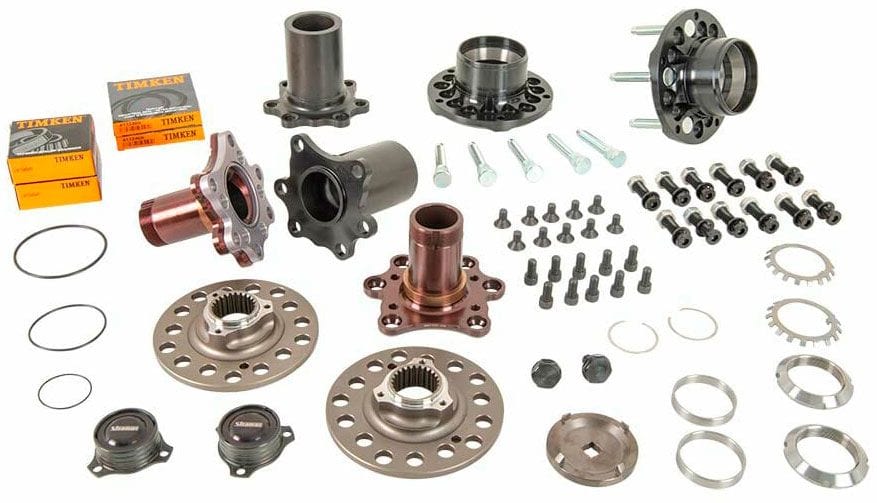

Includes
- 2" OD Floater Spindles
- 4130 steel
- Provides rigid support for hubs & bearings
- Designed for 3" or 3 1/4" OD housing tubing
- 2.800" OD tube end (Requires finish turning to suit axle tube ID)
Steel Hubs
- Machined for 4 1/2", 4 3/4", & 5" bolt circles
- Accepts Pro Touring 1/2" or 5/8"wheel studs
Notes
- Kit comes standard with 1/2" wheel studs
- 5/8" studs can be substituted for an additional charge
Steel Drive plates
- Designed for crowned 24 spline 300M axles
- Inner axle splines can be made to suit other differentials
Timken Tapered Bearings & Races
- Premium components from a trusted name
- Ensures proper fit & long bearing life
Solid Preload Spacer
- Prevents excessive preload
- Maintains consistency during hard cornering
Spindle NutWrench
- Properly mates to spindle nut
- Allows use of torque wrench
- Preventsspindle nut damage
