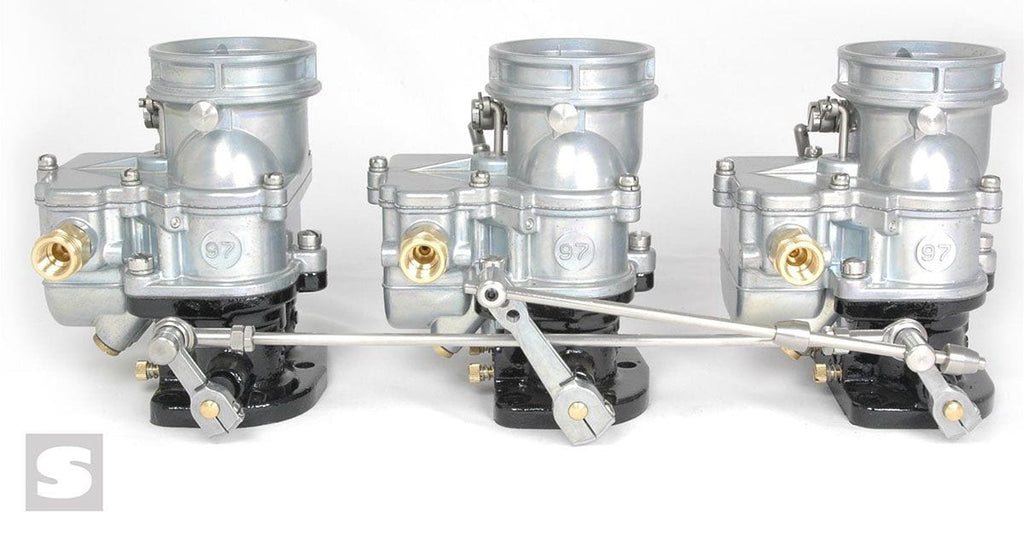

Progressive Carburettor Linkage KitSuit 3 X 2 Ford 38-53 With Edelbrock Tripower ManifoldBrand: STROMBERGPart Number: STROM9245PRODescription: A high quality 3x2 progressive carburetor linkagedesigned for great looks and apositive action (click more for applications and details) Use with intake manifolds thatput each carburetor 5-3/16th inches apart. See above for typical manifold applications.
Designed and manufactured exclusively by Stromberg Carburetor, the TwoStep linkage range combinesclean, traditional looks with maximum leverage and huge versatility. Each kit comes pre-assembled and installs in just two simple steps, withoutthe need for extended throttleshafts. Our kits are not a 'one size fits all' solution. Different intakes use different carb spacing, so we modelled every kit in 3D CAD and offer different kits for specific intakes. If you're indoubt, simply measure your manifold spacing - throttle shaft to throttle shaft.
Features:
- Progressive kits have oppositethreaded rod ends for easy adjustment. Just spin the rod to adjust for the correct lever angles.
- Extendedthrottle shafts are not required.
- Die-cast zinc SuperLink lever arms. Allother parts stainless steel - even the rod ends and lock nuts.
- Every kit comes with two new Stromberg 'Snapback' throttle return springs, which wrap around theend of the throttle shaft. These chemically blacked, stainless steel torsion springs snap the carburetors shut, yet virtually disappear from view.
- TwoStep progressive systems are designed to ensure optimum performance and ensure maximumversatility. The primary leverhas three mounting points to change when the secondary carburetors open, and you can pull the front carburetor or push the rear one open to suitindividual applications. On the top setting (as supplied),the linkage will start to openthe secondary (end) carburetors at around 50% primary (center) carburetor throttle rotation. Lower holeswill open the secondaries sooner.
- To improve leverage, the primary (center)arm was kept as long as possible without hitting the carburetor S-jet. It also has a bigger clamping screw to handle more linkage torque. The sliding progressive rod meets the secondary carb rod at the top of the lever arm - not part way down like some systems. Good leverage is especially important as 97 multi-carb systems have strongspring resistance.
- Special swivels and bolts were developed to clamp the rod ends tight, yet still allow the sliding swivel to rotate. The neat tapered rod stops have discreet set screw fixings. And the rounded bolt has a small blind hole in the head. Simply insert a small hex key (like the one you use for the small rod stop set screws) to stop the swivels turning while you tighten the lock nuts.
- WARNING!To use this linkage with banjofuel fittings (eg. Stromberg 9082K and 9083K), you must addour 9086K banjo fitting spacers. Without them, the banjo and its fuel hose will interfere with the long primary (center) lever linkagearm causing linkage binding orsticking, which could result in uncontrolled engine speed, property damage, serious personal injury or death. Always read the instructions before installation.
- 5-3/16 inches from carb to carb
- Extended throttleshafts not required
- Fits Edelbrock 1108 & 1109 3x2 intakes
- To use with banjo fittings, add 9086K spacers
- Use with Stromberg 9145-59A or 9145-11Afuel line (pictured)
- 9245PRO-KD with auto-trans kickdown leveravailable to Special Order. See 9246PRO-KD for details.
