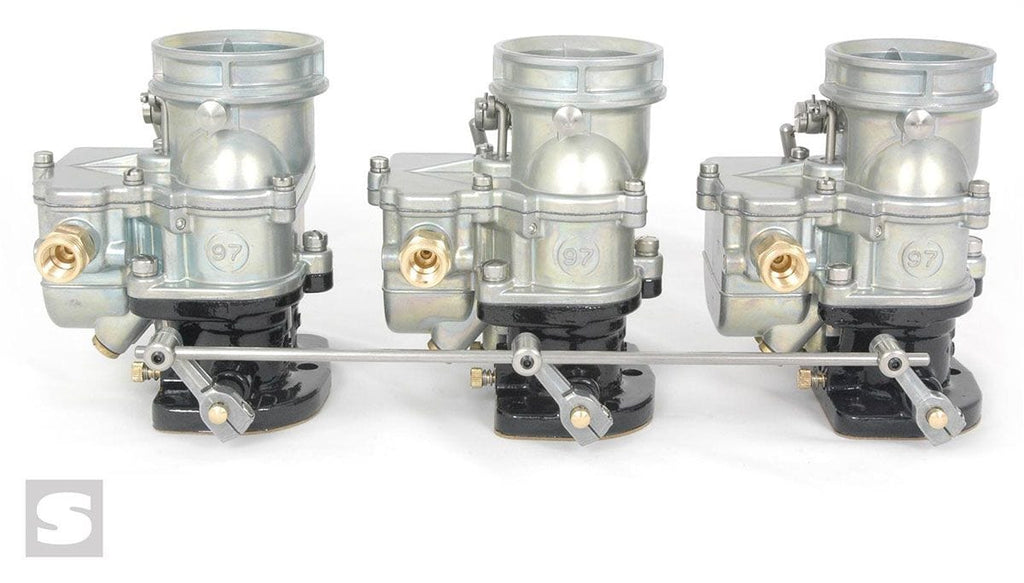

Carburettor Linkage KitTwo Step 3x2Linkage With 4-7/8" Carb SpacingBrand: STROMBERGPart Number: STROM9251SDescription: A competitively priced, 3x2carburetor linkage with clean,traditional looks, die-cast Superlink levers and a stainless steel link rod. Use on intake manifolds with carburetors 4-7/8 inches apart. If in doubt, simply measure your manifold spacing – throttle shaft to throttleshaft. Exclusive to Stromberg Speed Parts, this linkage features 'Snapback' throttle return springs which virtuallydisappear from view. The swivels are positively fixed by a small e-clip on the back,and the small black set-screwson the front have knurled endsfor a strong fix on the stainless rod. The linkage comes pre-assembled, installs in just two simple steps and comes with full instructions. Click the other tabs for help with installation and tuning.
OVERVIEW
- Fits Offenhauser 3x2 intakes for early overhead valve engines, like Ford Y-block and '49-'61 Cadillac, but check carb spacing before ordering
- Use for 3x2 intakes with 4-3/4in carb spacing like Edelbrock 5412 for small block Ford and some Weiand intakes
- For a chrome version, order 9246S-CHR and shorten the rod
- Extended throttle shafts not required
