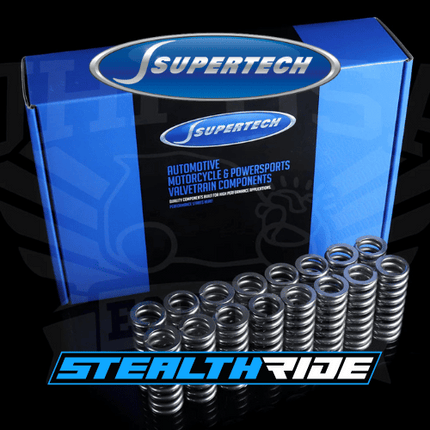

Supertech Dual Valve Spring 80lb F20C F22C S2000 RSX Type S K20A2 SPR-H1022D-01

Name: Supertech Dual Valve Spring 80lb F20C F22C S2000 RSX Type S K20A2 SPR-H1022D-01
Brand: Supertech
SKU: SPT SPR-H1022D-01
Price: 33.86 NZD
Availability: InStock
Rating: 5 (34 reviews)

SupertechSKU: SPT SPR-H1022D-01 Manufacturer's SKU: SPR-H1022D-01

Special Order

Estimated Shipping Time is 5-20 working days

📦 SPECIAL ORDER ITEM

This is a special order item. When you complete your order, we will order it from the supplier.

📦 Returns & Refunds Policy

Special Order Items Are not entilted to returns or refunds for change of mind, incorrect orders, or fitment issues.

Refunds or replacements are only available for faulty or damaged products. Claims must be made within 7 days of receiving your order, with proof of the fault.

Price:

$33.86 NZD

Quantity:

Thanks for shopping at Stealth Ride. Please note - We try to keep on top of all Stock levels - If your order is urgent please let us know in the notes section of your order. Occasionally items are backordered with our suppliers - This can cause an extra 2-3 days added to your shipment. We will cancel your order if we cannot supply within your given time frame

Supertech Dual Valve Spring 80lb F20C F22C S2000 RSX Type S K20A2
Brand: Supertech
Manufacturer's Part Number: SPR-H1022D-01
Stealth Ride Part Number: SPR-H1022D-01
UPC:
Description:

All Supertech valve springs are made with premium Superclean Chrome Silicon Vanadium Steel alloy for higher performance & durability at high rpms. Using high quality steel alloy also provides the added benefit of better structural memory for all of our springs.

Our valve springs are computer designed to ensure that wire stress levels do not overpass the limits of stress defined in the diagrams of fatigue. We also utilize computer software that allows us to ensure that the harmonics are under control. This combined with our high quality steel alloy enables supertech valve springs to be more durable in extreme conditions, giving your performance racing engine a serious competitive advantage in both performance and durability.

Supertech retainers are manufactured with high quality military certified Titanium alloy, and are CNC machined for a tight fit. Our high quality retainers are among the best in the industry.

Dual Valve Spring
TYPE: Dual Spring
OUTSPR.OD: 30mm
OUTSPR.ID: 21.8mm
INNSPR.OD: 21mm
INNSPR.ID: 15.5mm
PRESS.SEAT: 80 @ 40.4
PRESS.OPEN: 215 @ 12
MAX LIFT: 18.30mm
COIL BIND: 22.00mm
RATE: 11.2mm

More Information
Vendor Name Code Part Number	SPR-H1022D-1
Availability New	In Stock / Available
Note	Use with Supertech retainer part number RET-K20A2/T2 and and seat part number SEAT-H1020DS.
Shipping Weight (Dimensional)	0.360000
Clearance Sale	No
Availability	Available
Part Type	Valve Springs
Make	Honda / Acura
Model	Civic Si 06-11 FA5 (Sedan), Civic Si 06-11 FG2 (Coupe), CR-V 02-06 RD4-RD9, RSX Type S 02-06 DC5, S2000 00-03 AP1, S2000 04-09 AP2, TSX 04-08 CL9, Accord 06-07 CM4-CM8, Accord 08-12 CP2/CS1, Accord 03-05, Element 03-06, CR-V 07-11 RE1-RE5
Engine	F20C, F22C, K20A2, K20Z1, K20Z3, K24A1, K24A2, K24A4, K24A8, K24Z2, K24Z3, K24Z
Inner Spring OD	21.00mm
Inner Spring ID	15.50mm
Outer Spring OD	30.00mm
Outer Spring ID	21.80mm
Open Pressure	215lbs @ 12mm
Max Lift	18.30mm
Coil Bind	22.00mm
Brand	Supertech
Valve Spring Type	Dual
Seat Pressure	80lbs @ 40.40mm
Valve Spring Rate	11.2lbs/mm
Carb Legal	Unspecified
