Sway Bar Link
To suit Hyundai iX35, Kia Sportage and Toyota FJ Cruiser, HiLux, Prado
Brand: Whiteline
Part Number: KLC220
Description:
Not many enthusiasts are aware that OEM and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling. Knock, knock, knock! That's the sound you hear when your sway bar links are not doing their job. Links are a common service item due to either worn or over compliant bushings/ joints and possibly bent or snapped centre bodies. Upgrade from the old units to Whiteline sway bar links with superior features that outlast and outperform the original equipment.
Key Features
- Adjustable Ball/Ball Style - 12mm Ball Stud125-150mm - horizontal heavy duty ball joints
- Adjustable extra heavy duty
Fitment
- Foton Tunland P201 4WD (2012–on) – Adjustable extra heavy duty
- Hyundai ix35 IX35 LM (2010–2015) – Adjustable extra heavy duty - suits models with horizontal ball joints
- KIA Sportage SL (2010–2015) – Adjustable extra heavy duty - suits models with horizontal ball joints
- Toyota 4 Runner GRN210, 215 (2002–2009) – Adjustable extra heavy duty
- Toyota FJ Cruiser GSJ15 (2009–2018) – Adjustable extra heavy duty
- Toyota Fortuner GUN156 4WD (2015–on) – Adjustable extra heavy duty
- Toyota Hilux GGN25R, KUN26R (N70) 4WD (2005–2015) – Adjustable extra heavy duty
- Toyota Hilux GGN125R, GUN126R, 136R (N80) 4WD (2015–on) – Adjustable extra heavy duty
- Toyota Hilux GUN126R GR Sport (N80) 4WD (2023–on) – Adjustable extra heavy duty
- Toyota Land Cruiser Prado 120 Series (2002–2010) – Adjustable extra heavy duty
- Toyota Land Cruiser Prado 150 Series (2009–on) – Adjustable extra heavy duty - suits models without KDSS
- Universal fit – 125-150mm - horizontal heavy duty ball joints

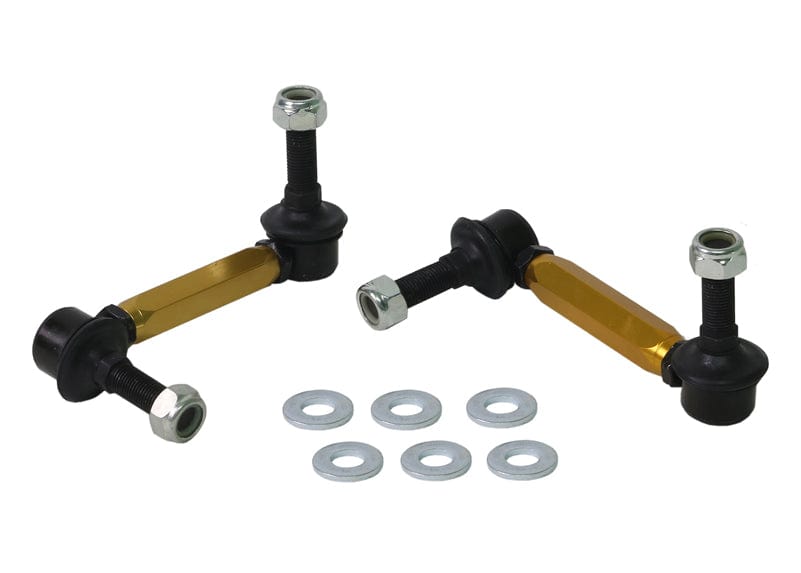

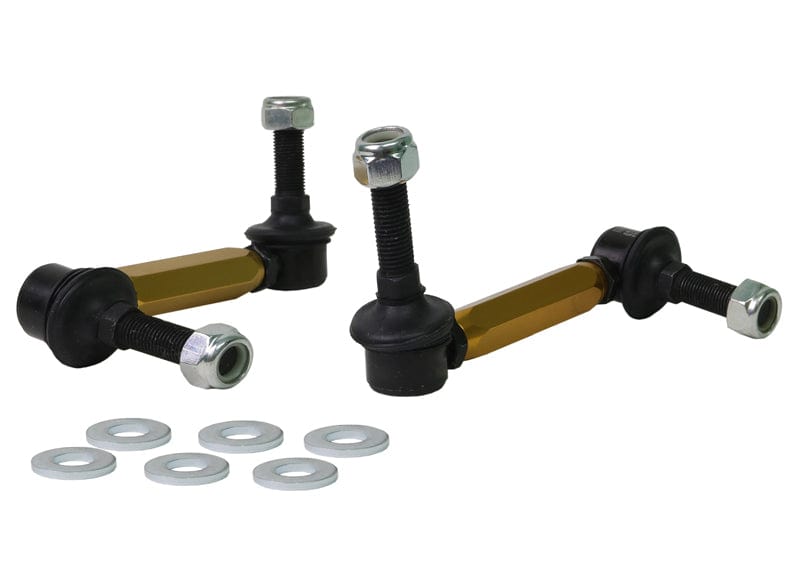

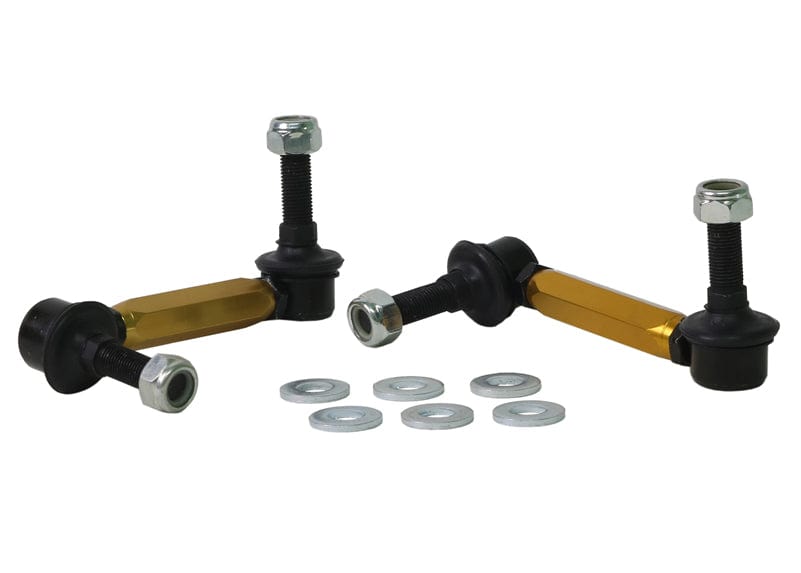

What's in the Box
2 Links, 6 Washers
Specifications
-
Position: Front Axle
-
Range: Whiteline Performance
-
Warranty: 3 Year / 60,000Kms
-
Installation: Moderate – specialist tools needed
-
Typical install time: 1 Hour
-
Wheel alignment: Recommended after fitting
