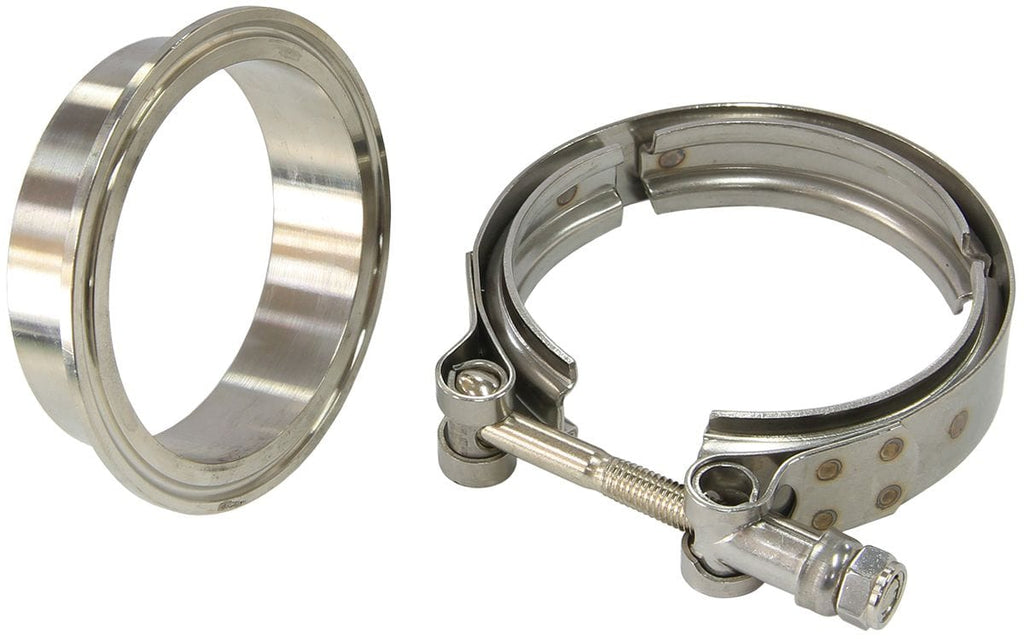

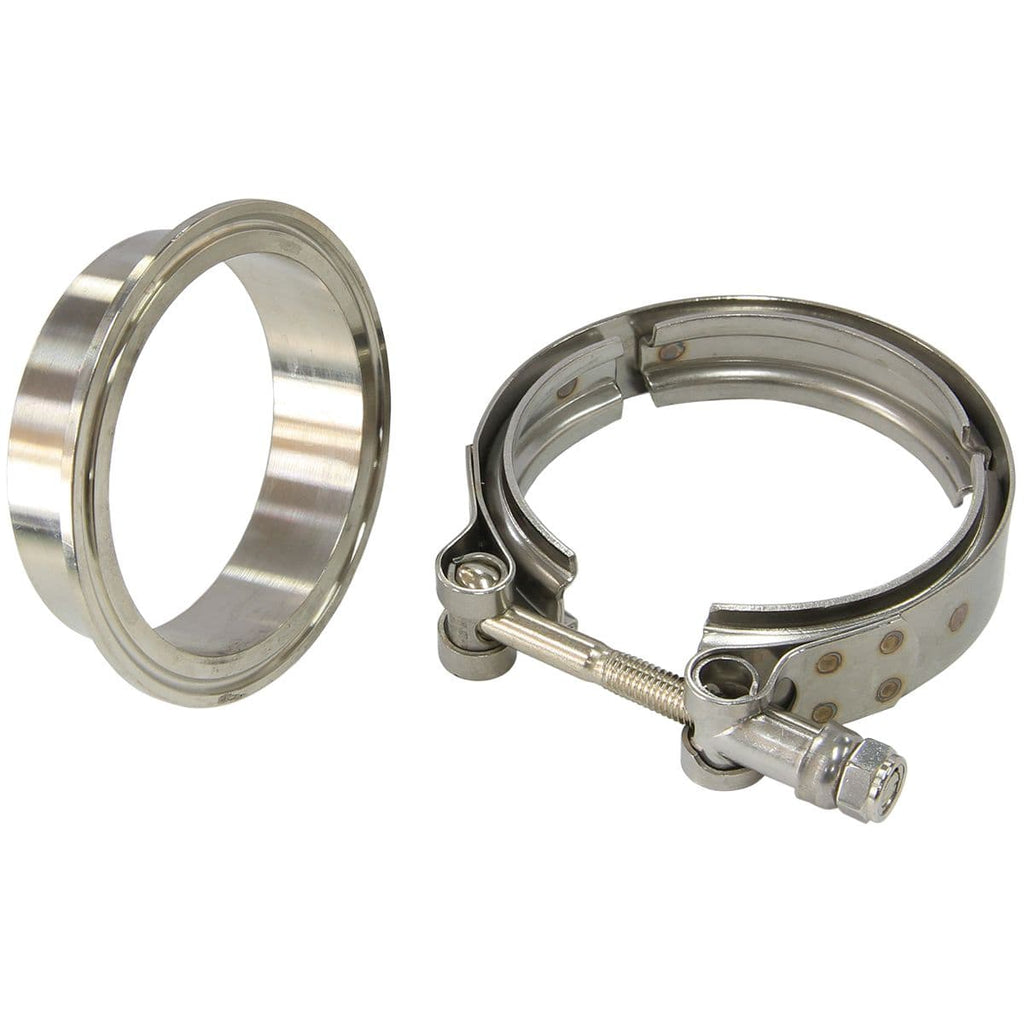

Boosted Turbine Outlet3.62" O.D Stainless SteelV-Band KitSuit Boosted 6766 TurbochargersBrand: AEROFLOWPart Number: AF8080-1003Description: These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.
Note: Molygrease all threads before installation and removal.
Material is 304 Stainless Steel.
Suits Boosted Turbocharger Turbine Outlet Flange.
Replacement V-band clamp isAF8080-3001.
AF8080-1003 Aeroflow Performance V-Band Suits Boosted Turbos below:
- AF8005-4025 / AF8005-4025BLK
- AF8005-4026 / AF8005-4026BLK
- AF8006-4006 / AF8005-4006BLK
Suits Boosted Rear Housings below :
Additional Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 82.4mm (3-15/64").
- V-Band Weld on Ferrule Outside Diameter - 92.1mm (3-5/8").
- V-Band Weld on Ferrule Lip Outside Diameter - 73mm (2-7/8").
- Suits Exhaust Tube Outside Diameter - 88mm (3-29/64").
