TURBOSMART 40MM COMPGATE GEN-V 14PSI

filler

Colour: Black
Price:
Sale price$517.99

GST included Shipping calculated at checkout

Stock:
In stock

Description

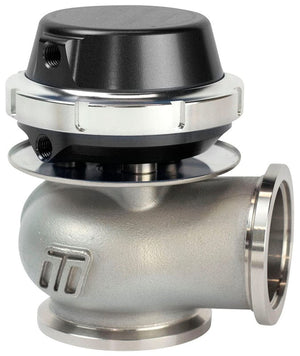

Turbosmart™ Wastegate 40mm Comp-gate - V Band Wastgate

The Comp-Gate40 GenV (40mm) external wastegate was designed to fit into tight engine bays while still offering superior flow and heat handling capabilities. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

They are also available in Motorsport and compressed gas-only versions for those requiring specific applications.

Features:
Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates
40mm valve size
High temp spring combinations from 3 – 26psi supplied in the box
1/8”NPT ports
V-band clamp mounting system to suit 1-3/4” OD pipe
Locking collar for compact size and easy spring changes
Available in Motorsport and Compressed Gas versions
Hall Effect, Non-Contact Position Sensor Option Available

Supplied with
Wastegate unit (pre-assembled with spring as per order)
SS316 Valve seat
Inlet V-Band
Inlet SS304 weld flange
Outlet V-Band
Outlet SS304 weld flange
Collar tool (master/slave)
17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
Sticker
Instruction card
