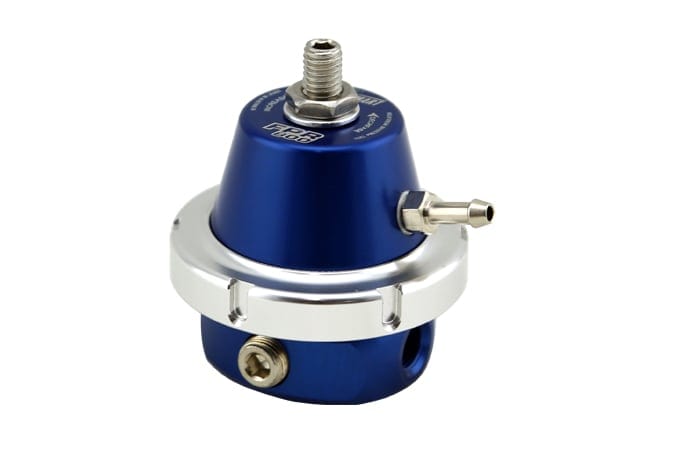

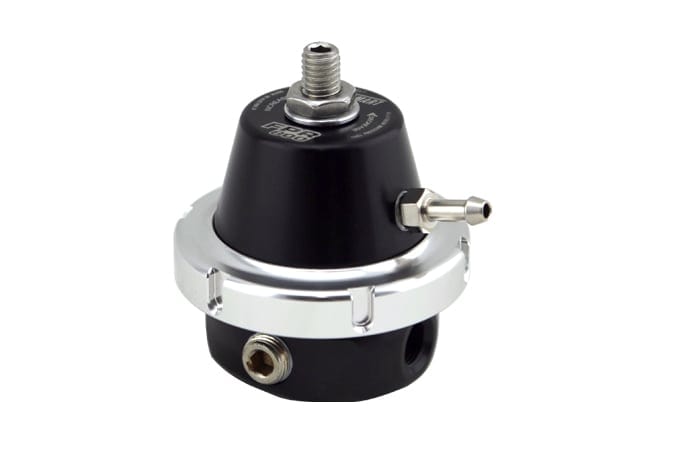

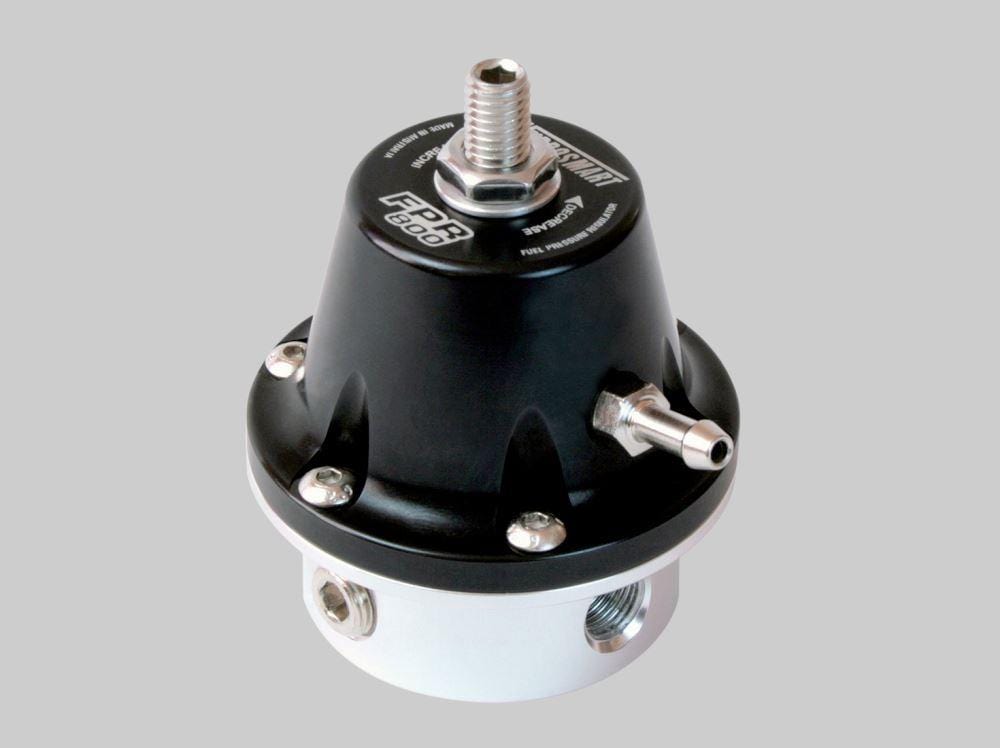

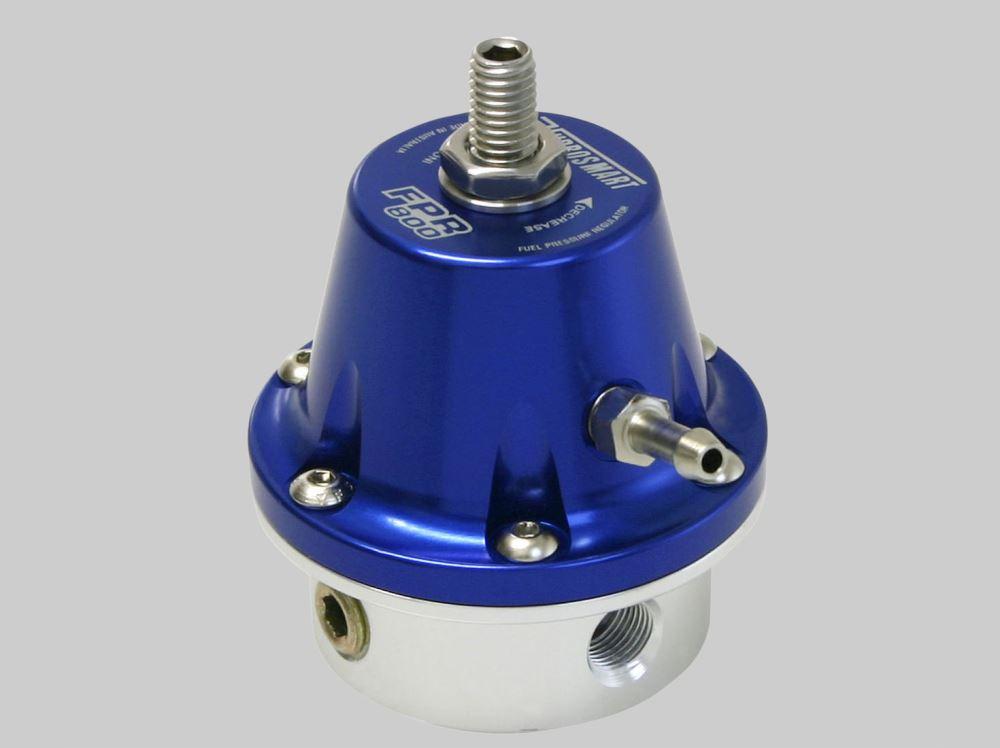

Turbosmart™ Fuel Pressure Regulator 800hp - FPR800
Turbosmart's High-performance EFI fuel pressure regulator is smaller, lighter and better! Featuring two 1/8" NPT inlet ports, one 1/8" NPT return port and 1/8" gauge port, 30-90 PSI base pressure adjustment, 1:1 ratio, premium diaphragm and stainless steel valve + seat allow for ANY fuel type including E85 and is suitable for engines with up to 800hp fuel systems. FPR's feature a non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same. Factory tested.
* EFI fuel regulator
* 3 x 1/8" NPT ports
* 1/8" NPT Gauge port
* Capable of regulating up to 800hp of fuel flow
* 1:1 manifold pressure ratio with no load losses
* 30-90psi base pressure range
* Stainless steel internals providing maximum integrity and reliability
* Suitable for all fuel types
* Operational between -35ºC to +200ºC
* MILSPEC diaphragm
* 12 Month Warranty
* Mounting bracket and retaining clip
* Vacuum fitting and gauge port blank.
* Pressure port 1/16 NPT with nipple supplied
