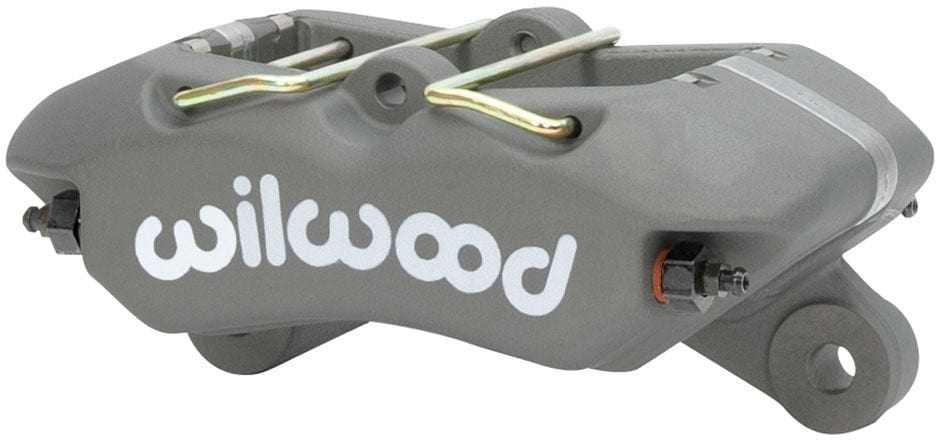

Dynapro Low Profile 4-Piston Dust Seal Caliper1.12 Piston Dia, .81" Rotor ThicknessBrand: WILWOODPart Number: WB120-15585Description: The Forged DynaPro-Low Profile Lug Mount Dust Seal (FDPLP-DS) forged billet caliper represents the newest generation of calipers available as an upgrade or replacement for applications previously using the long-standing Dynalite model series. FDPLP calipers combinepure race technology with several new exclusive Wilwood performance enhancements. A sleek profile with superior strength and a forged machinedfinish provide the performanceand looks for competition or show. Especially designed for limited outboard rotor hat clearance and narrow swept area rotors. Dust seal calipers also include Wilwood's proprietary dust seal technology.
The strength of the Forged DynaPro-Low Profile is a combination of process and design. The DynaPro caliper series is designed using stress-flow forged from premium grade billet. Stress-flow forging realigns the grain structure of the metal within the contour of the body design. This process produces a part with superior strength over parts simply machined from straight grainedblocks of billet. The FEA generated body design incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in thiscritical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequentdecreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power.
The DynaPro-Low Profile is loaded with other enhancements for performance and wider application. The calipers feature Quick-E-Clip pad retainers that support a new design 4812 type brake padfrom the top. Not only does itallow for fast pad service without caliper removal, the bottom pad supports have been removed to create a slimmer profile that can be more easily fitted into tight clearance applications.
