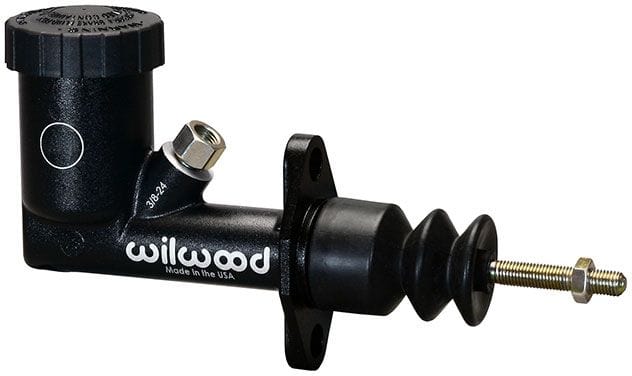

GS Compact Integral Master Cylinder5/8" Bore, Aluminium Black E-Coat FinishBrand: WILWOODPart Number: WB260-15096Description: Wilwood's new GS Compact Integral Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminium body with a protective e-coat finish. Integral cylinders feature a positive seal internal bellowscap.
- Newly tooled high pressure die-cast aluminum bodies with protective e-coat finish
- Newly designed internal piston and return spring assembly assures a quick and positive release with extended service life
- Fully rebuildabledesign
- All twist-on caps used on the integral reservoir models include positive seal bellows gaskets
- Remote reservoir models use 7/16-20 male union inlet fittings withaluminum sealing washers
- High displacement capacity with full 1.25" stroke in all models
- Use for brake or clutch
- Direct mounting to Wilwood and all similar brand pedals using 2.25" bolt hole center mounting flanges
- Optional remote fill kits with choice of 4oz or 10oz capacity include the reservoir, filter,mounting bracket, rubber hose,clamps and fittings
