Description

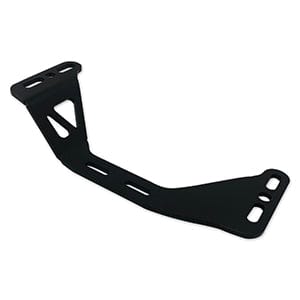

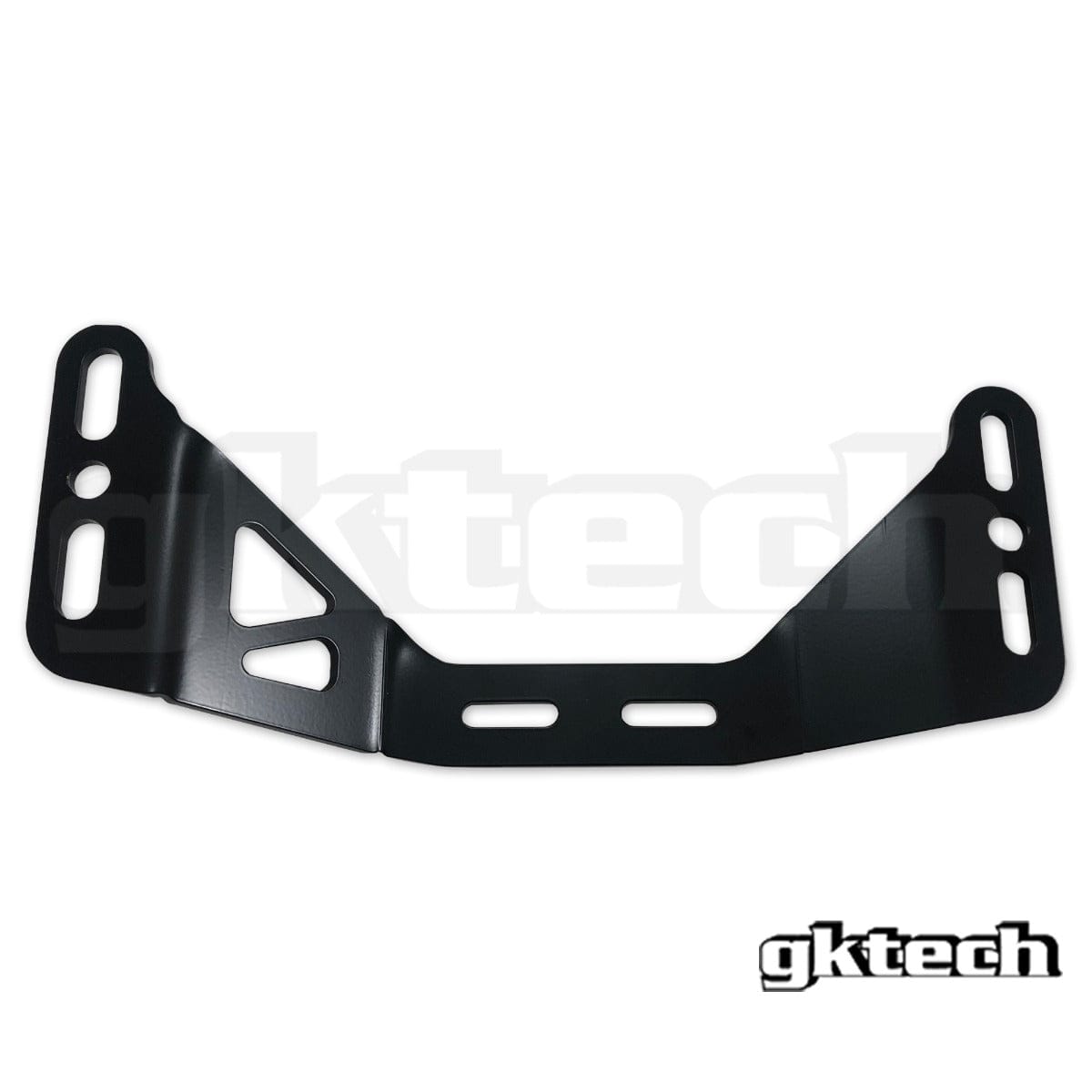

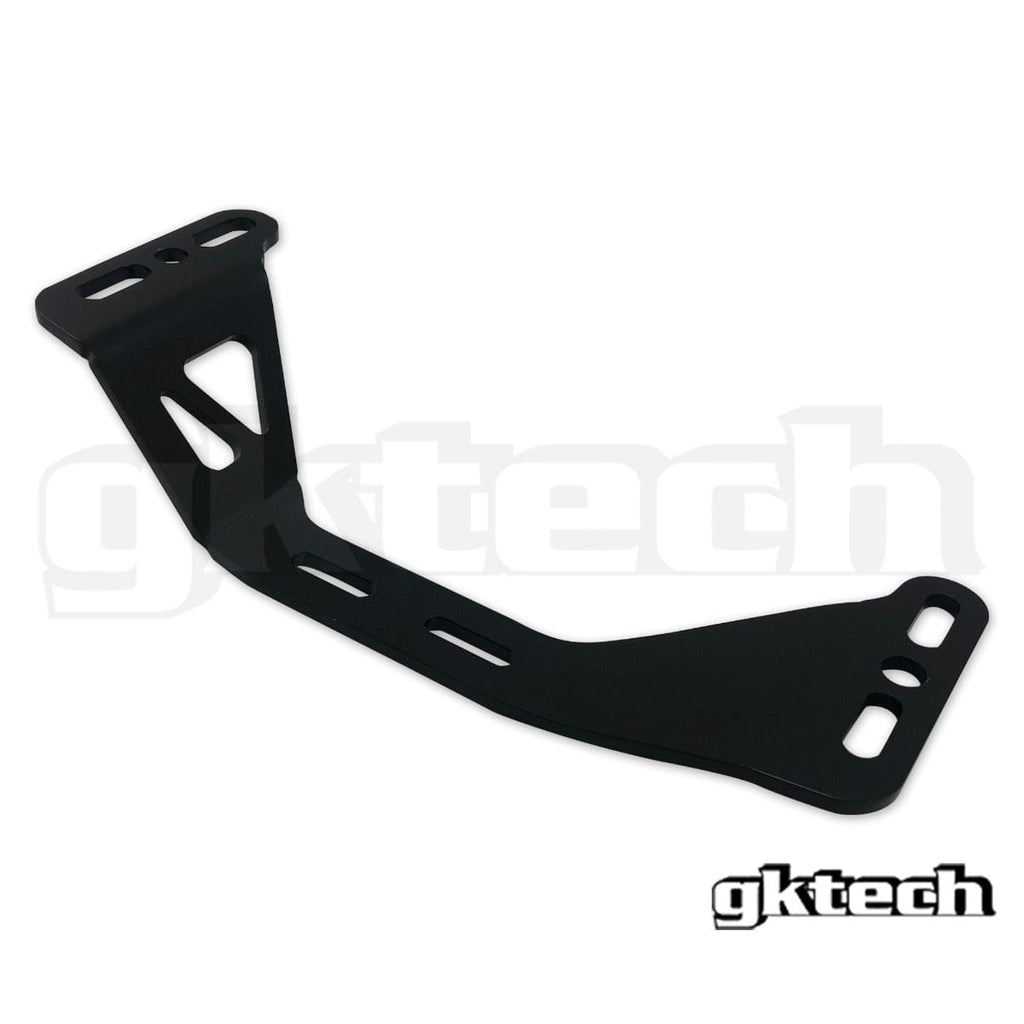

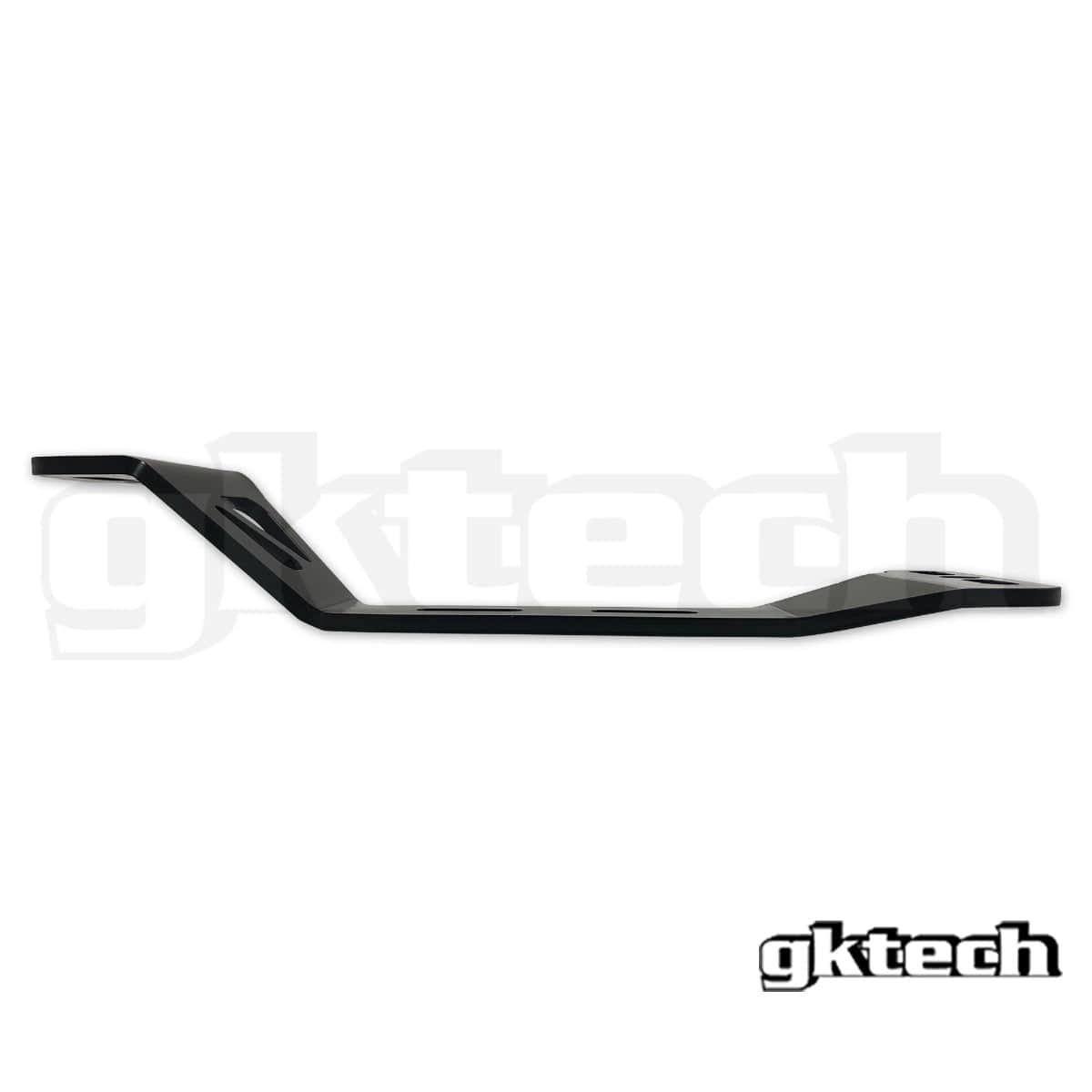

The GKTECH Z33 350Z/Z34 370z gearbox cross member has been designed as a bolt on solution when fitting these gearboxes to an S chassis when running either an SR20/KA24 motor.
The gearbox cross member has been designed to use an OEM S13/S14 gearbox mount such as our polyurethane/ solid mount that we also make, seen here;
Solid - S13/S14/S15/ R32 GTS-T SKYLINE BILLET ALUMINIUM SOLID GEARBOX MOUNT
Polyurethane - V2 POLYURETHANE GEARBOX MOUNT
- 6mm steel plate, laser cut and press bent

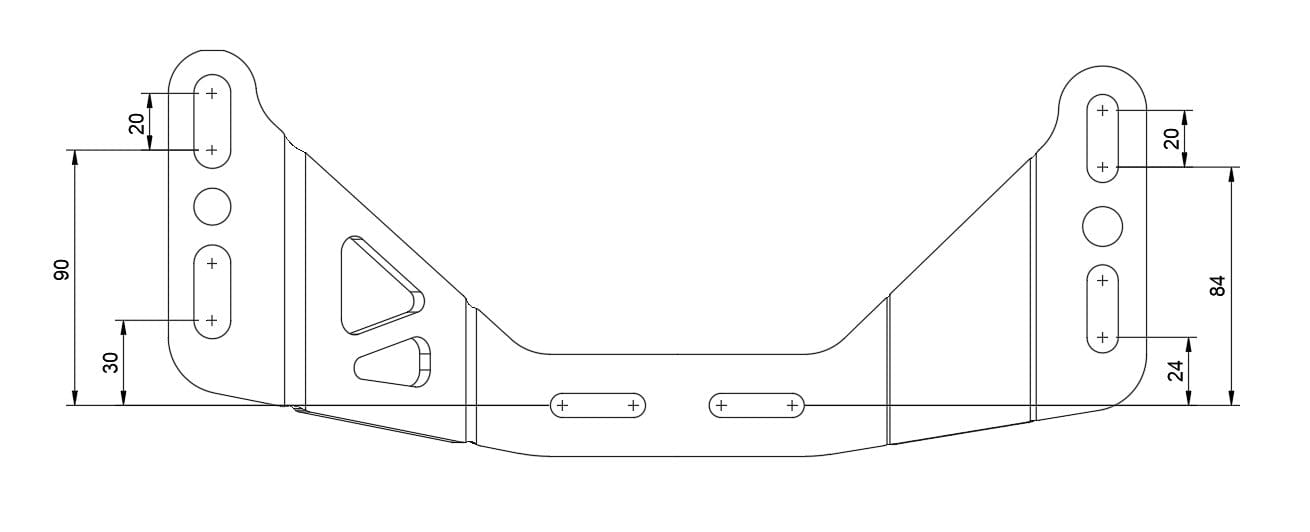

- CAD designed
- 20mm of adjustment to suit modified setups

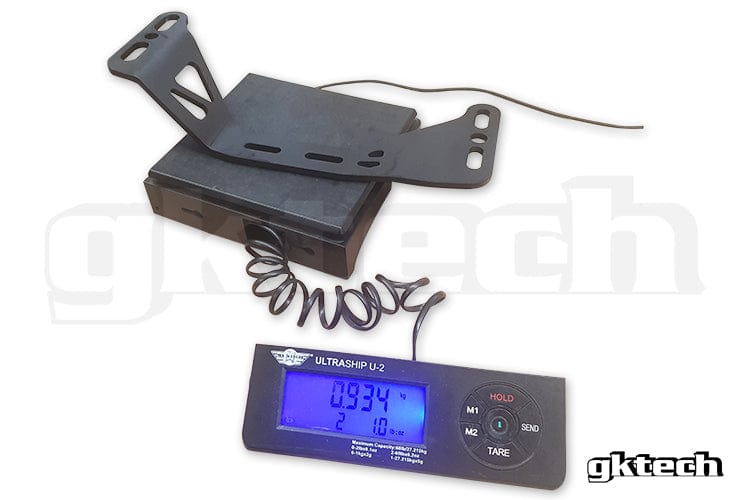

- Weighs 980grams
NOTE: Fitment is based on running an SR20 or KA24. If you're running an engine that sits further back then the cross member most likely won't work.
NISSAN S13 CA18 SILVIA
NISSAN S13 CA18 180SX
NISSAN S13 SR20 SILVIA
NISSAN S13 SR20 180SX
NISSAN S14 200SX/SILVIA
NISSAN S15 200SX/SILVIA
Guides
FAQ
Will this shifter suit my setup?
We can't confirm every possible configuration but we can confirm that if you are using an adapter plate with an SR20 or KA24 in an S13, S14 or S15 with a Z33 or Z34 gearbox that our cross member will fit provided the gearbox has been machined down to suit.If you are using a kit that pushes the setup further back and does not require machining, we cannot gaurantee fitment. Which also means ifyou're running an engine that sits further back then the cross member most likely won't work.
Do you sell adapter plates or other conversion parts?
At this point in time we are only making shifters and gear box cross members.
Do you sell a gearbox mount to suit this cross member?
We do sell a direct OEM replacement gearbox mount that does fit, however, you will need to shave one side of the mount slightly, both variants can be seen here; Solid - S13/S14/S15/R32 GTS-T Skyline billet aluminium solid gearbox mount Polyurethane - V2 Polyurethane gearbox mount
