GKTech Z33 350Z, V35, Z34 370Z Rear knuckles with all new kinematics (Z334-KNCK)
Suits Nissan Z33, Z34, V35
Brand: GKTech
Part Number: Z334-KNCK
Description:

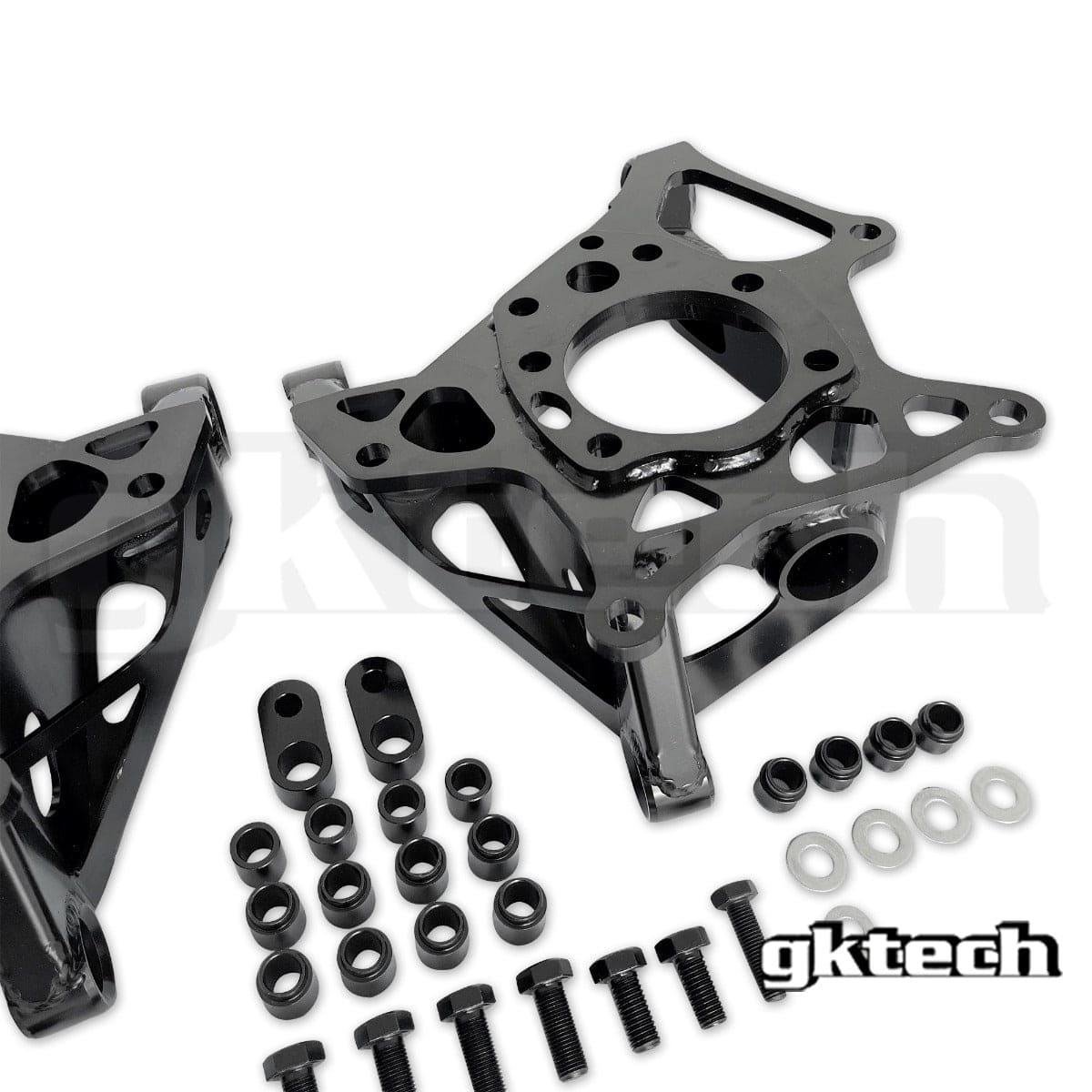

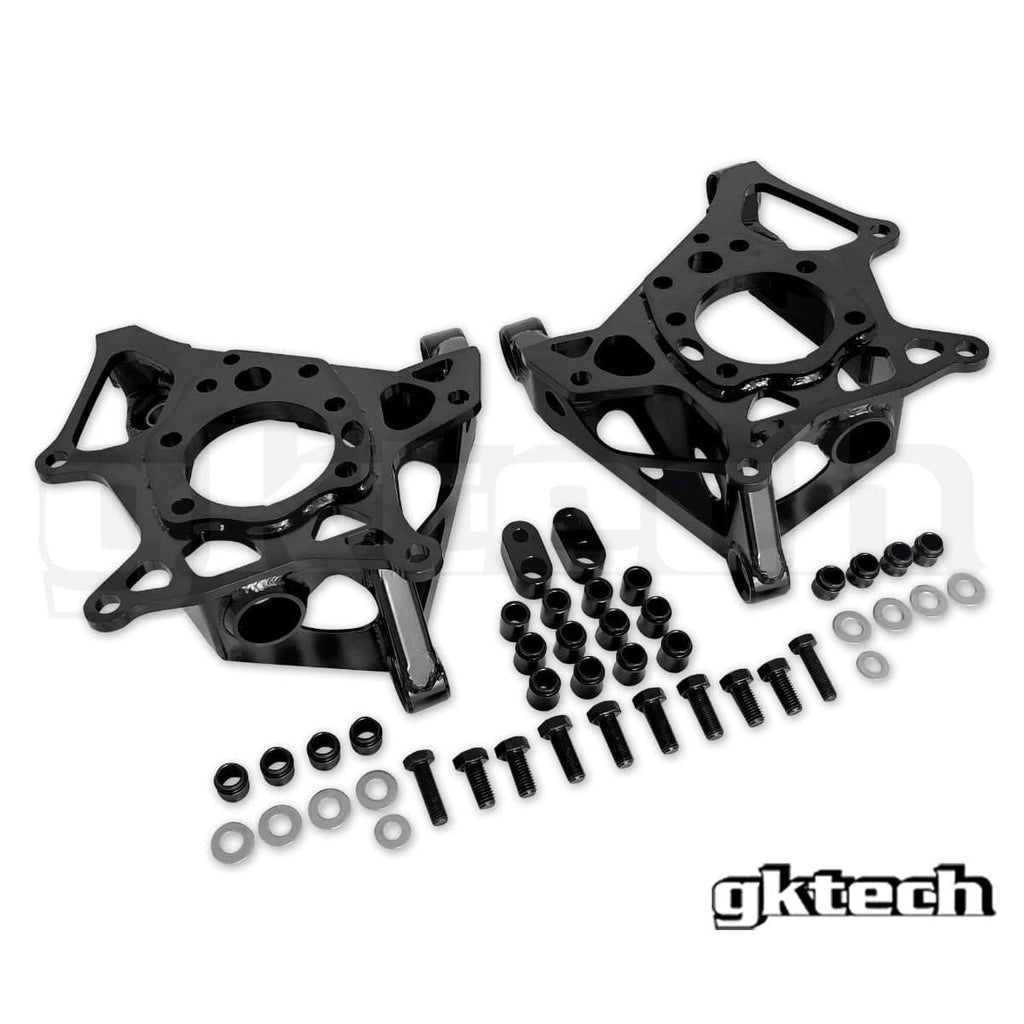

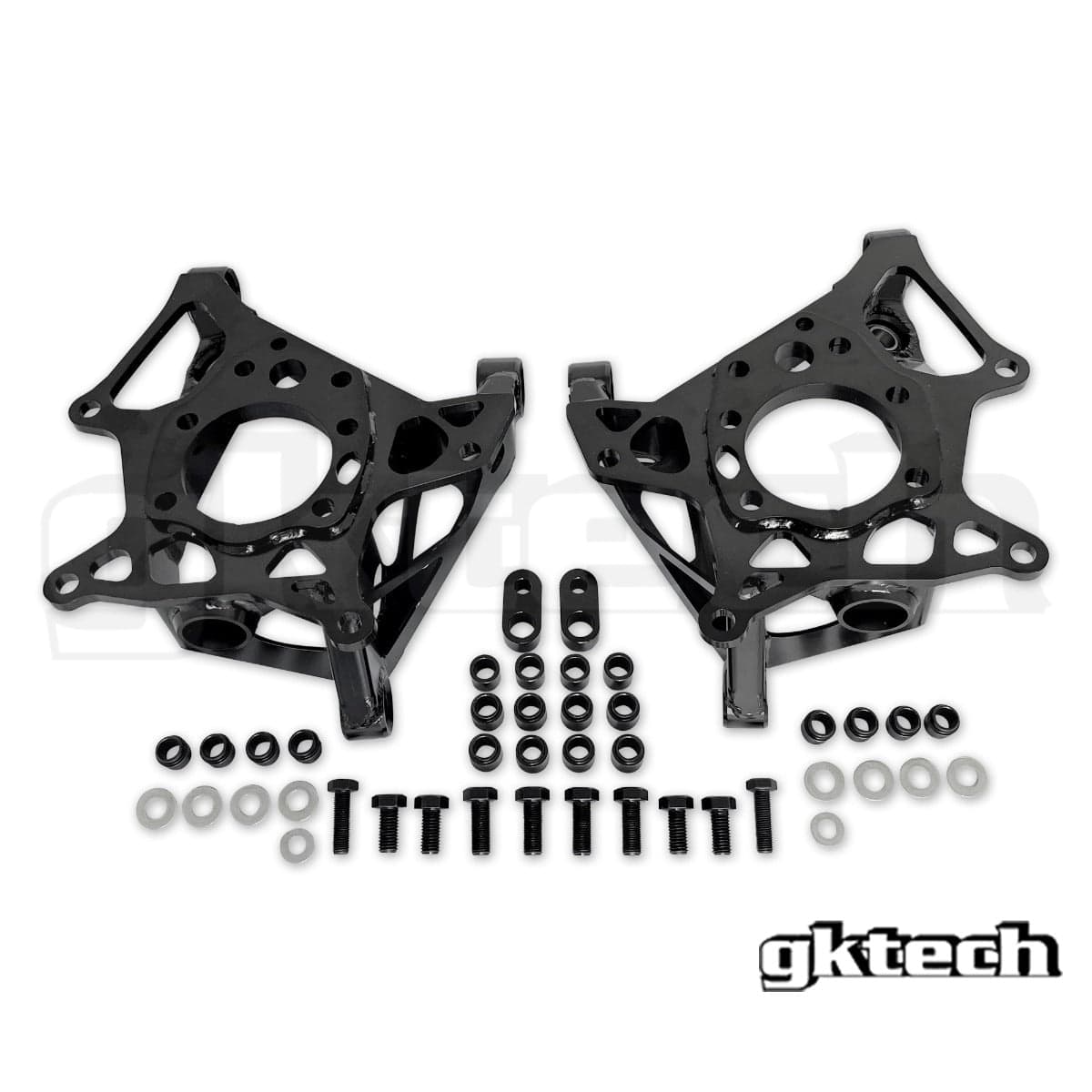

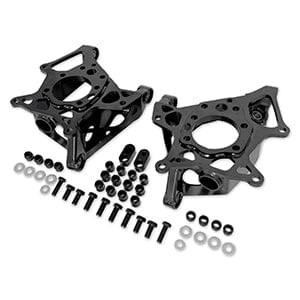

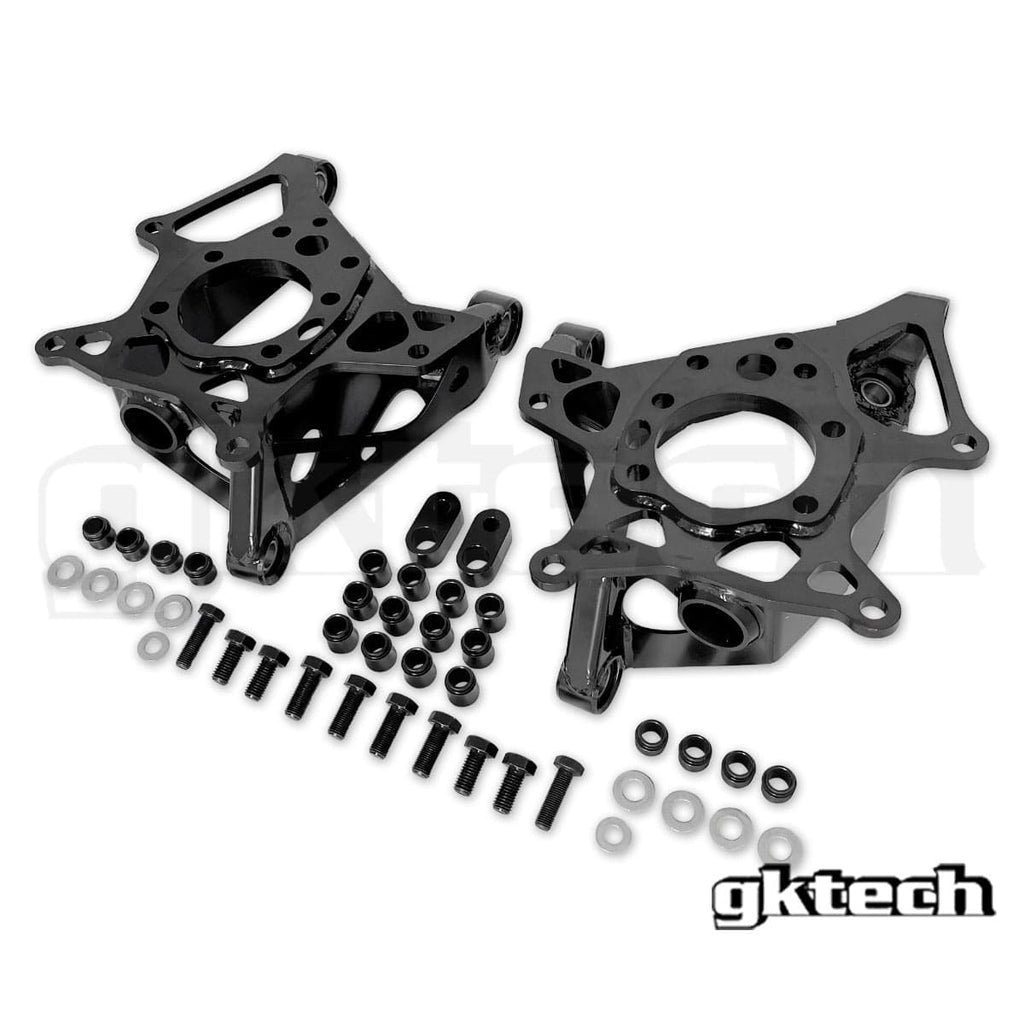

GKTech Z33 350Z, V35, Z34 370Z Rear knuckles with all new kinematics, part number Z334-KNCK. Suits Nissan 350Z Z33, Nissan 370Z Z34, Nissan Skyline V35. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
After spending a combined 8 years of product development and selling over 1,000 pairs of GKTech's S Chassis knuckles they naturally progressed towards the Z's.
They have developed a lightweight yet strong drop knuckle. They come with dual caliper brackets as standard, high-quality PTFE lined spherical bearings throughout and have all new kinematics to drastically improve anti-squat, bump steer, camber gain curves and raised roll center height.
- Ability to run dual caliper without spacing the rotor out
- Ability to run drum brake in standard position with dual calipers (or single caliper) installed
- The drop is 40 mm - optimized for cars 40 mm lower than factory ride height (more drop would have required proprietary arms)
- High-quality PTFE lined spherical bearings throughout as standard (part #COM10T)
- All new kinematics to significantly increase grip over regular drop knuckles

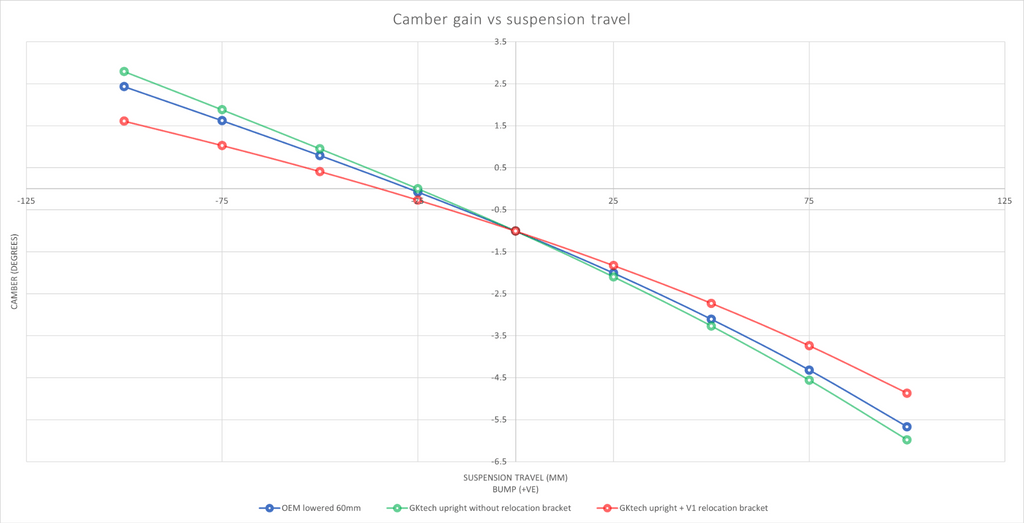

- Optimized camber curve for more even tire wear

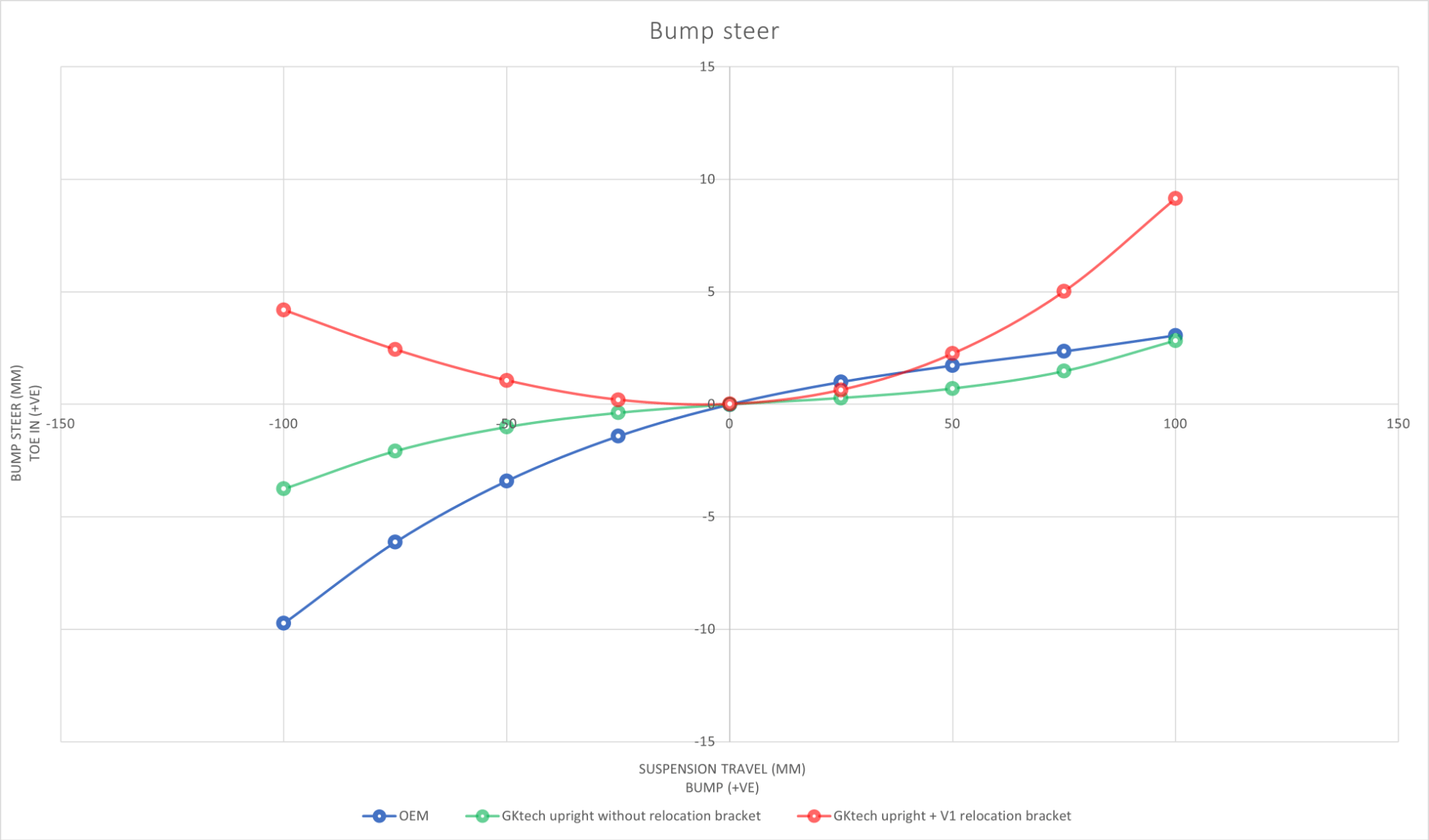

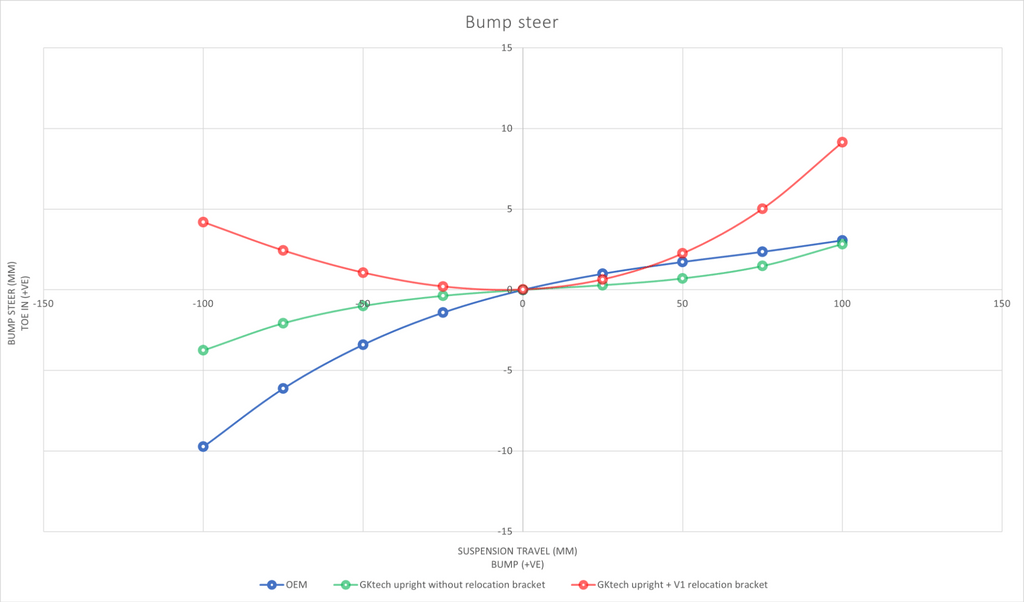

- Optimized bump steer for toe-in under compression without OEM arms' elastokinematics

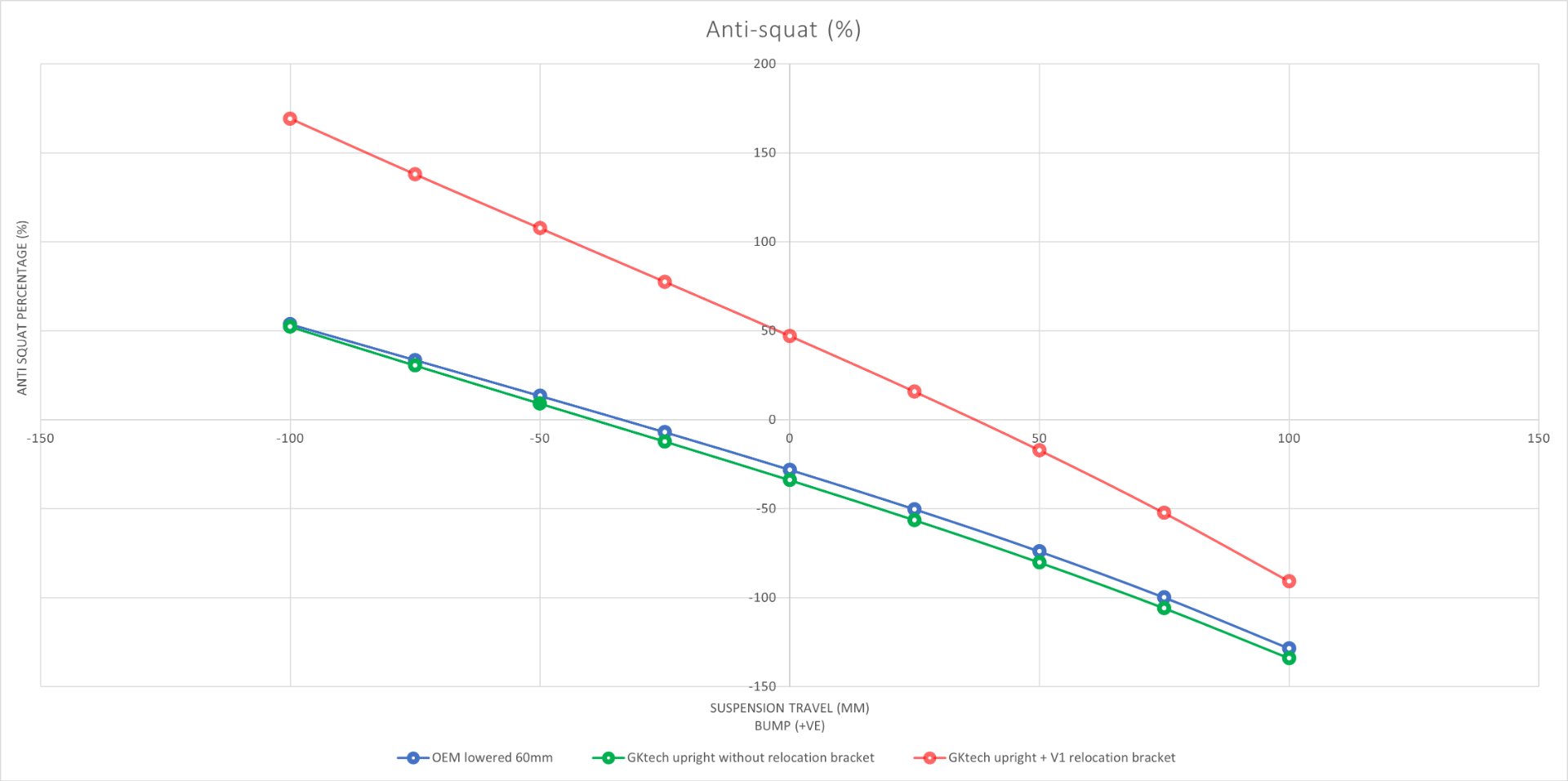

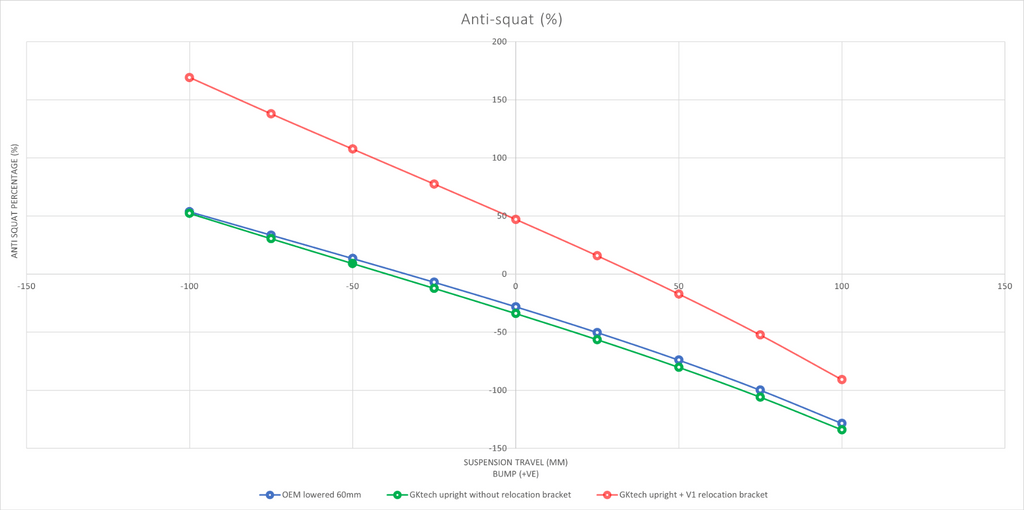

- Increased anti-squat for more rear weight transfer and traction

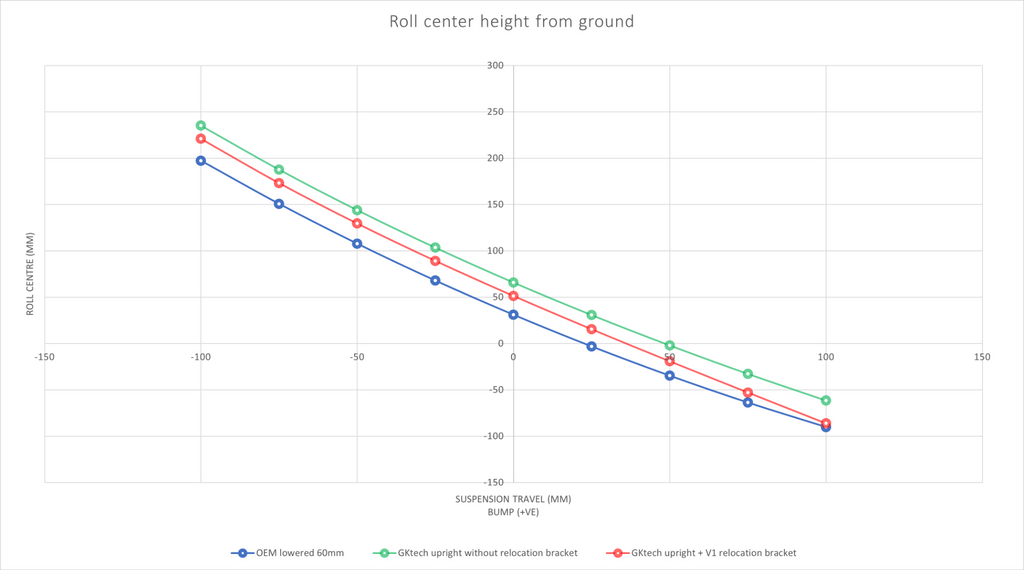

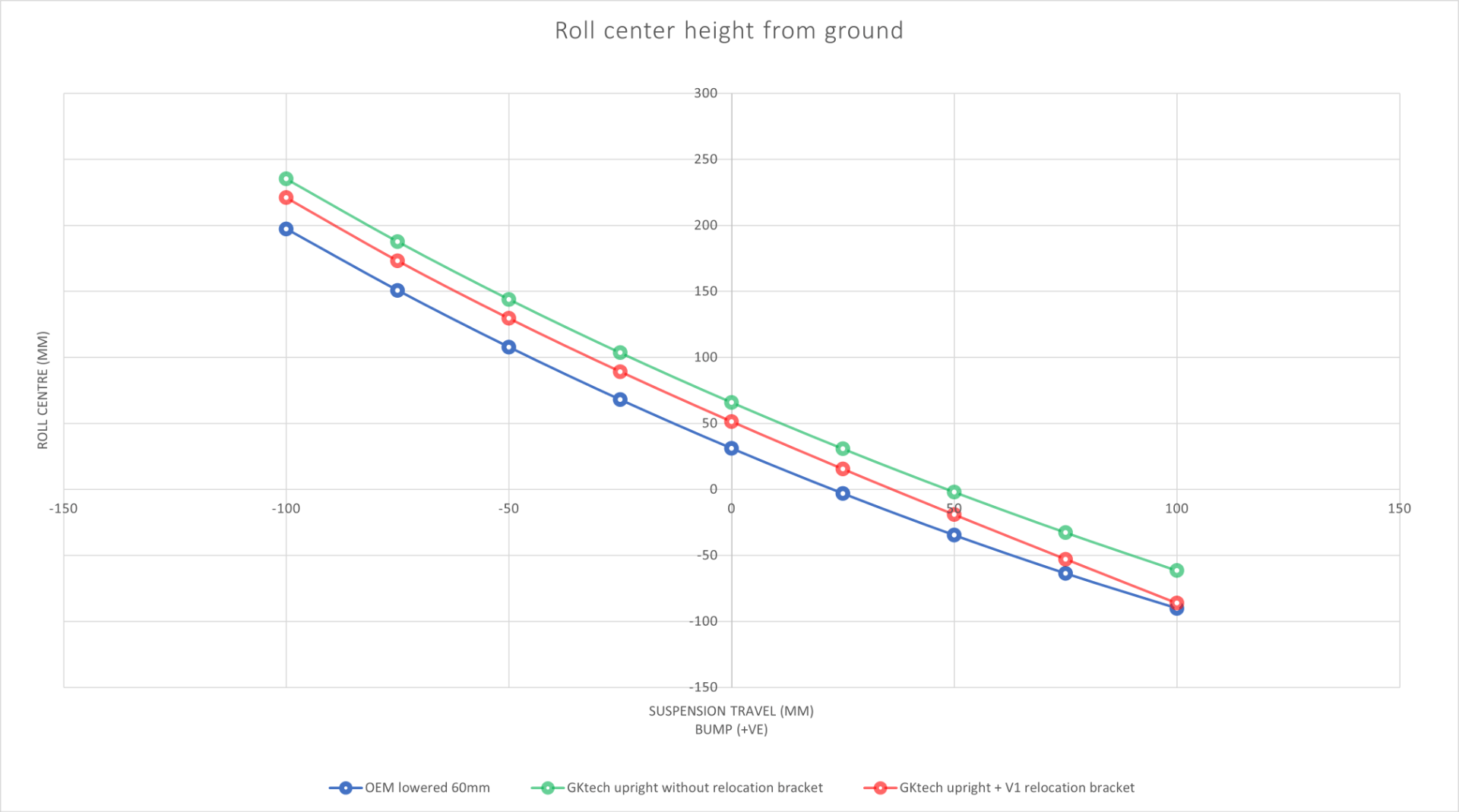

- Raised roll center height for better handling
- Lightweight sheet metal design optimized using finite element analyses for ultimate strength - fully dressed weight (bearings, spacers, circlips) 3.9kg (standard knuckle is 5.1kg)
INSTALLATION NOTES:
- Aftermarket toe and traction rods ARE required and MUST have rose joints as the suspension mounting points on the knuckle are significantly altered and rubber or similar wouldn't have enough misalignment to work. Lower camber arms and upper camber arms can be OEM or aftermarket and do not need to be changed. OEM bushings in lower control arms will produce different bump steer curves
- For optimal results their upper camber arms and their anti squat relocation kit are recommended: this product
Suits
- Nissan 350Z Z33 (2002–2009), VQ35DE
- Nissan 370Z Z34 (2009–2020), VQ37VHR
- Nissan Skyline V35 (2001–2007), VQ35DE
