GKTech V2 CD009 Gearbox shifter relocation setup (Z33X-SHFT)
Suits Nissan S13, S14, S15, R32, R33, R34 & more
Brand: GKTech
Part Number: Z33X-SHFT
Description:
GKTech V2 CD009 Gearbox shifter relocation setup, part number Z33X-SHFT. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Silvia S14, Nissan Silvia S15, Nissan Skyline GT-R R32, Nissan Skyline GTS-T R32, Nissan Skyline GT-R R33, Nissan Skyline GTS-T R33, Nissan Skyline GT-T R34, Nissan 300ZX Z32. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The V2 CD009 Gearbox shifter relocation setup has been designed as a bolt on a solution when fitting cd009, cd00a gearboxes to S and R chassis Nissans (although may fit others) and not having the shifter sit back 6" too far.

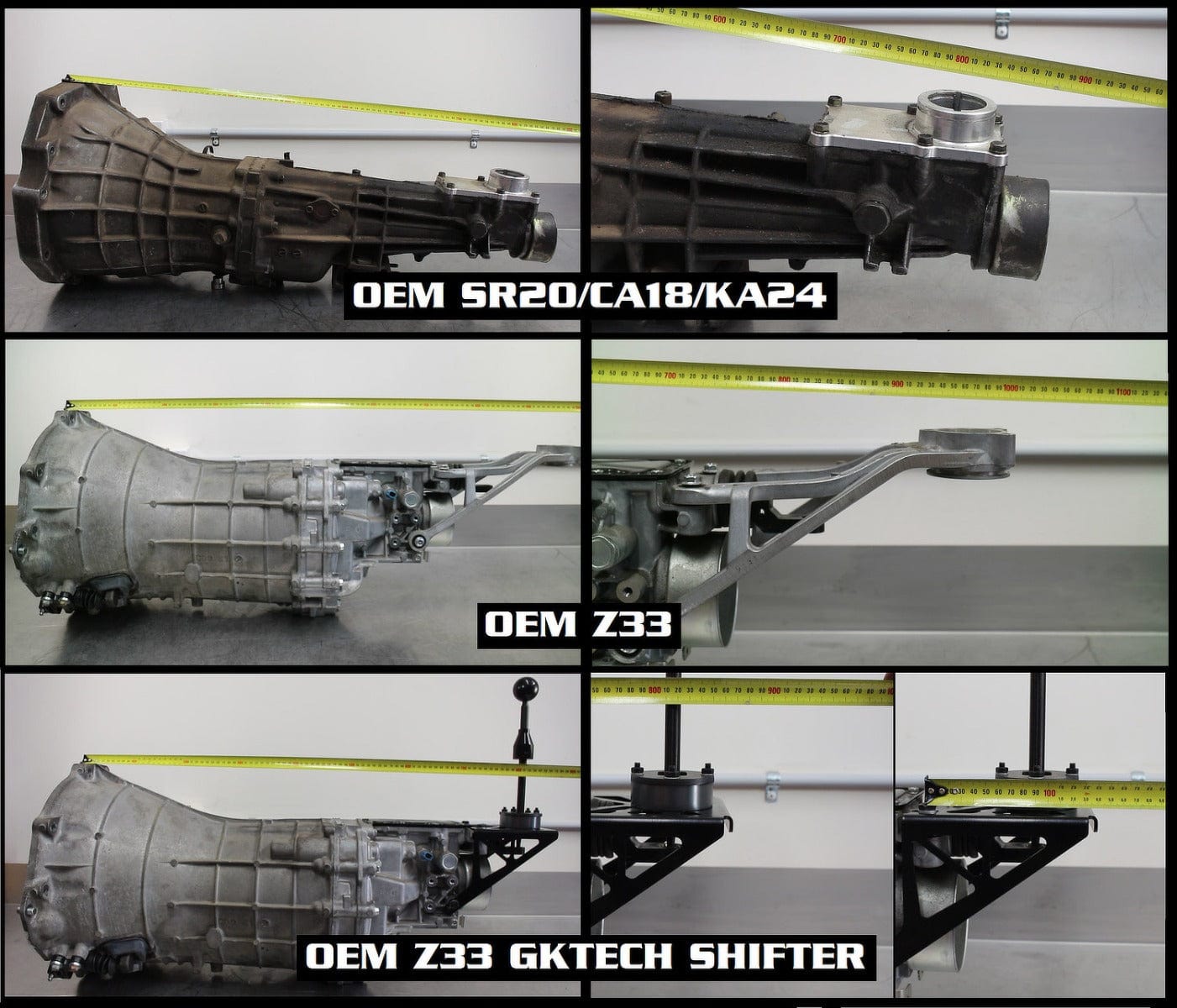

GKTech's shifter setup sits just 85mm from the rear of the bolt holes on the back of the gearbox.
Designed from scratch with over 200 hours spent modelling, prototyping and testing they are happy with the final result. This design DOES feature reverse lockout.
- CAD designed
- No OEM parts required to fit this to the rear of a Z33 350z/Z34 370z gearbox
- Features reverse lockout
- Shifter sits just 85mm from the rear of the bolt holes on the back of the gearbox
- Thread for shifter is M10x1.25 (same as S13/S14 SR20 Nissan and many others)
Want more technical information, product benefits and a look into the design process? Click here:
NOTE: Will not work with gearbox yokes larger than the OEM Z33 yoke at 90mm in outside diameter
NOTE: Fitment is based on running an SR20, KA24, VQ35/37 or RB20/25/26. If you're running an engine that sits further back then the shifter will sit further back. Check out this short video from one of their testers on Instagram:https://www.instagram.com/p/BFIfc6QHev3/
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan 300ZX Z32 (1989–2000), VG30DETT
