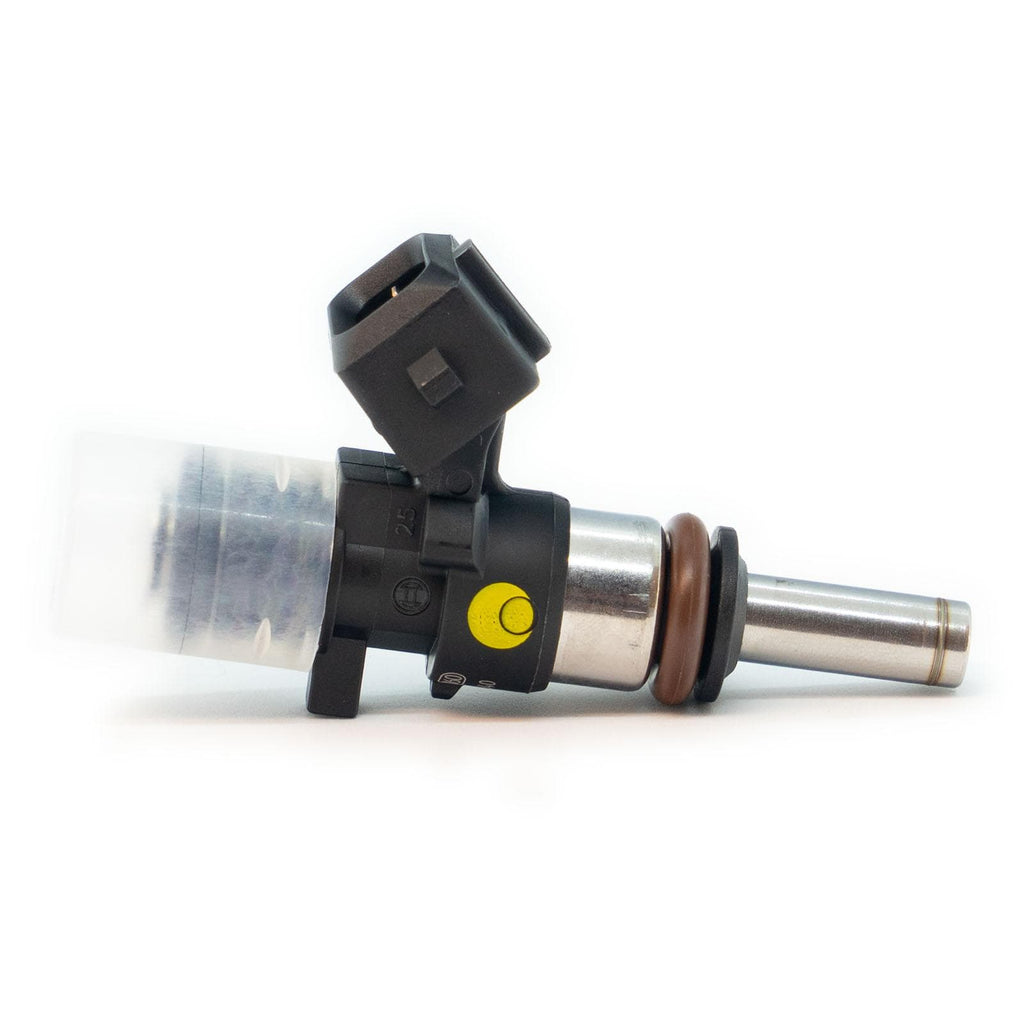

Link ECU Bosch EV14 1000cc Injectors - Set of 4
4 x Bosch Ev14 1000cc Fuel injectors
Brand: Link ECU
Part Number: 101-0052
Description:
The Link Bosch EV14 1000cc Injector Set includes four genuine high-impedance EV14 fuel injectors, delivering 980cc/min of fuel flow at 3 Bar. Featuring a compact body, extended tip nozzle and single cone spray pattern, they provide reliable fuel delivery for a wide range of performance applications running pump fuel, race fuel and ethanol blends including E85.
Features
- Highlight Features
- Set of 4 injectors.
- 980cc/min @ 3 Bar.
- High impedance: 12 ohm, no need for Ballast resistors.
- Compact body.
- Extended tip nozzle.
- Single cone spray pattern.
- Jetronic connector.
- Pump fuel, race fuel and ethanol blends including E85.
- Switched 12V power supply.
- Injector driver from ECU.
- No dedicated polarity.
What's in the Box
- Bosch EV14 Injector x4
- Printed Accessory instructions
Specifications
-
Product Dimensions: 63.3mm Overall length.; 39mm Body length.; 14.54mm Top Oring; 14.4mm Bottom Oring
-
Electrical: Operating Voltage Range: 6-16.5V; Maximum Input Voltage: 16.5V; Maximum Continuous Current Draw: 1.38A ea.
-

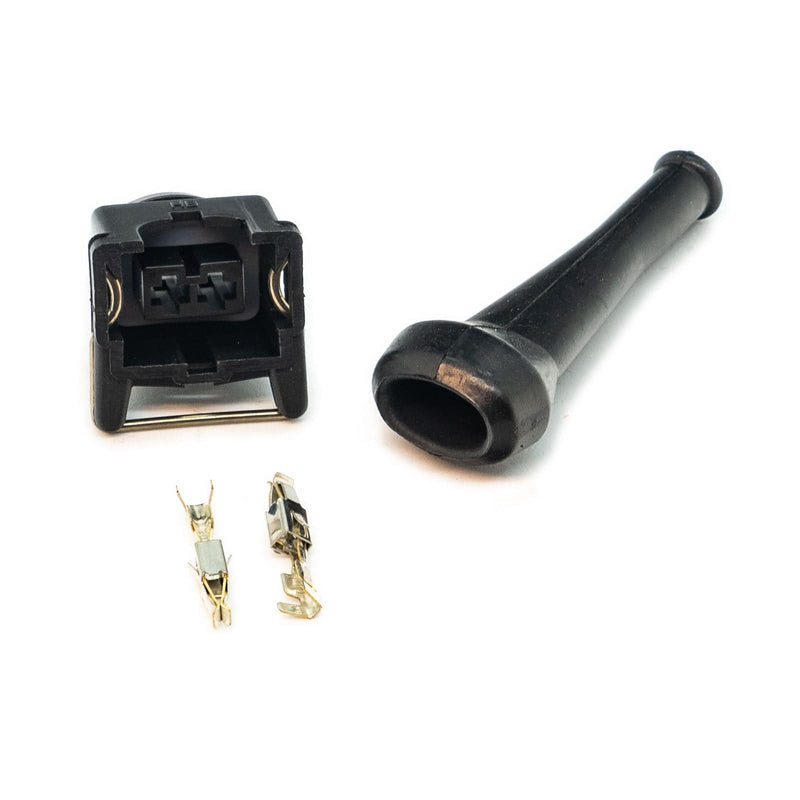

Connector: Bosch 2 Way Plug Kit (PKB2), 101-0051.
Notes
- Sold as a set of four injectors.
- These injectors are not flow matched or colour matched.
