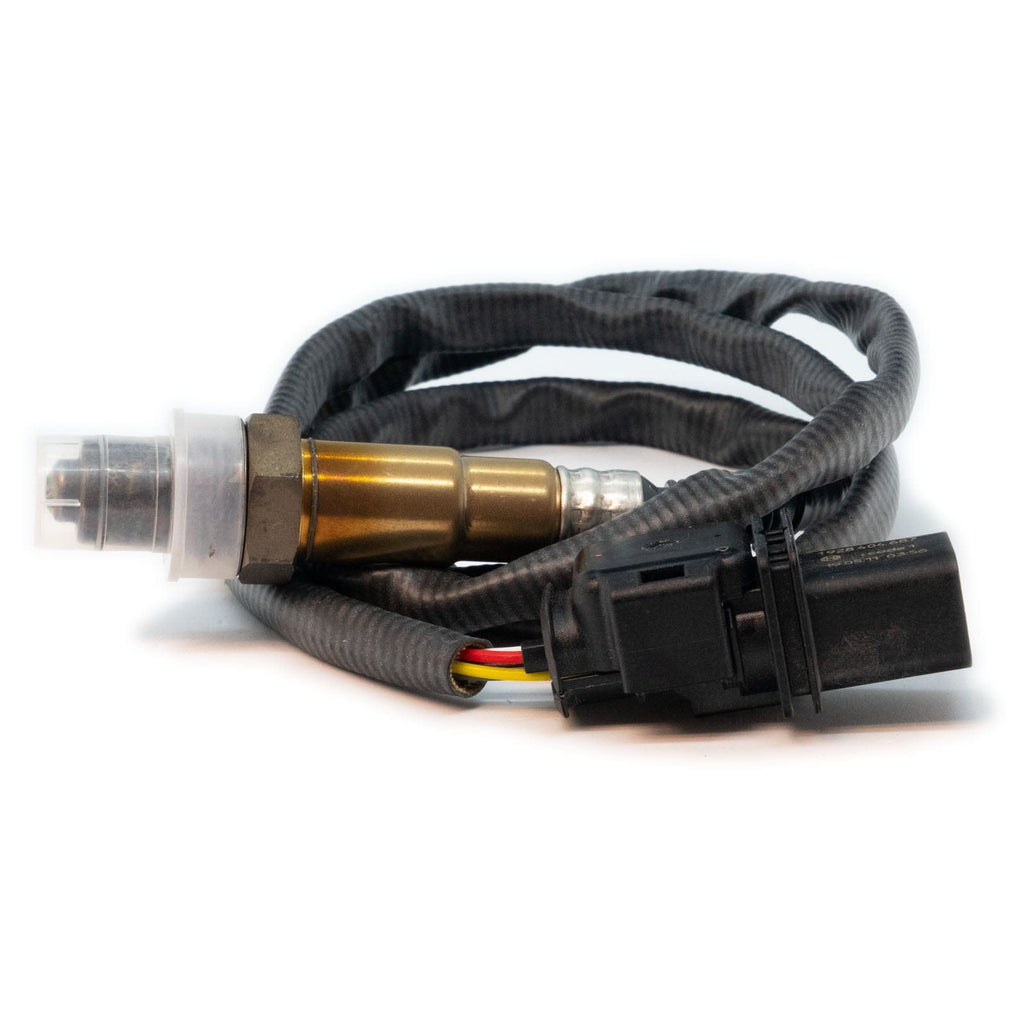

Link ECU Wideband O2 sensor LSU49
Wideband O2 sensor, Bosch LSU4 5/6 wire to suit G4+ Fury
Brand: Link ECU
Part Number: 101-0116
Description:
The Link Wideband O2 Sensor (LSU4.9) is designed to accurately measure exhaust oxygen content across a wide air-fuel ratio range. When used with a compatible Link ECU or external wideband controller, it provides fast and accurate lambda feedback for precise fuel tuning, closed loop fuel control and engine protection.
Suits
- Link ECUs with onboard wideband lambda control.
- Link CAN Lambda module (PN 125-1000).
- Other aftermarket ECUs and lambda controllers supporting Bosch LSU 4.9 sensors.
What's in the Box

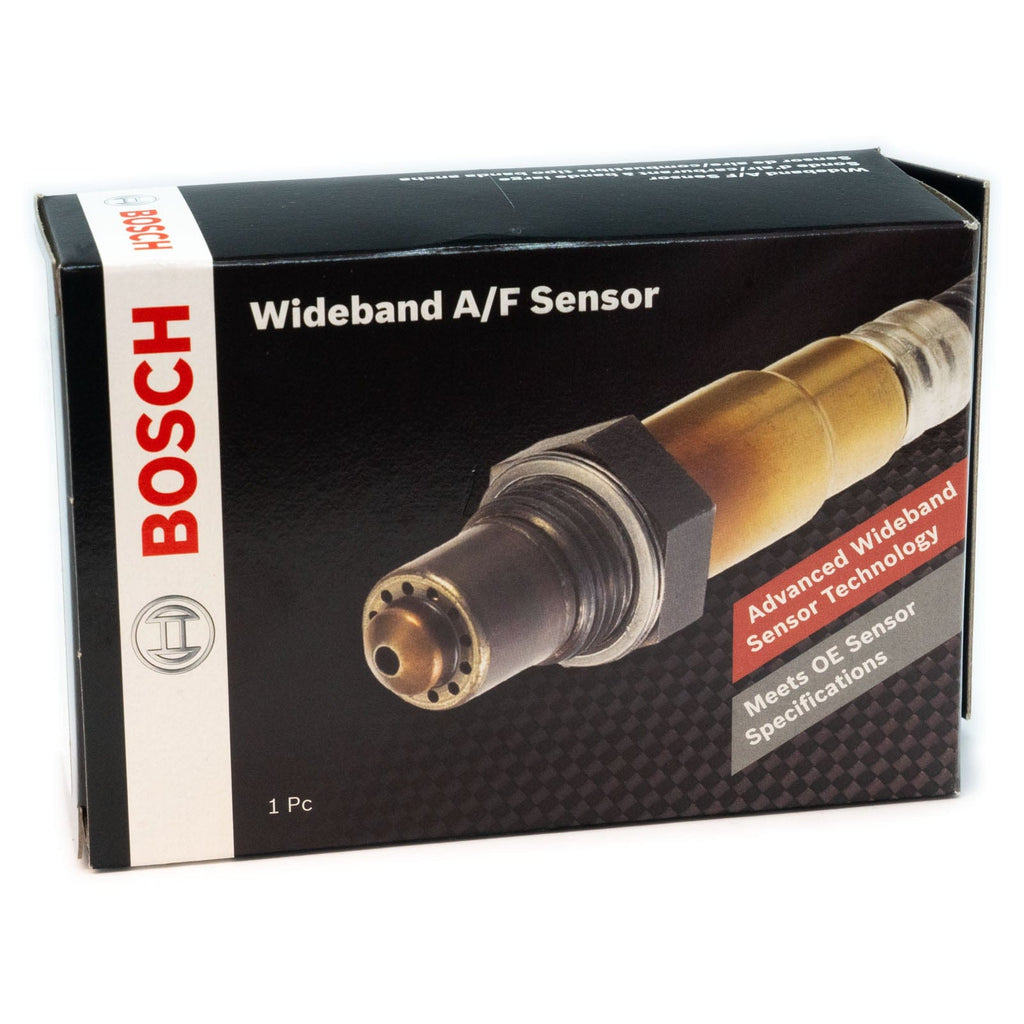

- Bosch LSU4.9 sensor (5 Wire)
- 6 Pin LSU4.9 Connector
- Printed Accessory instructions
Specifications
-
Highlights: The Link Wideband O2 Sensor has the following specifications:; Genuine Bosch LSU 4.9 wideband lambda sensor.; Planar zirconia (ZRO₂) dual-cell sensing element.; Integrated heater.; Measures lambda from 0.65 to lean (infinity).; M18 x 1.5 mounting thread.; 22 mm hex for installation.; Operating exhaust gas temperature: up to 930degC.; Short-term exhaust gas temperature: up to 1030degC.; Supplied with 6 Pin LSU4.9 Connector.
-
Product Dimensions: 180mm(L)x100mm(W)x50mm(H); 7.09in(L)x3.94in(W)x1.97in(H)
-
Product Weight: 130 grams (4.59 ounces)
-
Connector: 6 Pin LSU4.9 Connector (PN 101-0127)
Notes
- This sensor is sold solely for aftermarket use. As Bosch's warranty excludes aftermarket applications, no warranty is provided on the LSU 4.9 Sensor.
- LinkECU have prepared some information about how to increase sensor lifespan below.
- Install where the sensor is exposed to a representative exhaust gas sample.
- Install as close to vertical as practical with the wiring facing upwards.
- Do not install near the end of the exhaust where fresh air may affect readings.
- Protect the sensor from condensation and excessive exhaust temperatures.
