Link ECU 5 Bar MAP Sensor EU MAP5EU
MAP Sensor 5 Bar EU SS -1 / +4 Bar Pressure
Brand: Link ECU
Part Number: 101-0295
Description:
The Link 5 Bar MAP Sensor is a high-accuracy manifold absolute pressure (MAP) sensor designed for turbocharged and supercharged engines operating at up to 58 psi (4 bar) of boost. Featuring a rugged stainless steel construction and fast response time, it delivers stable and accurate pressure measurement for reliable engine tuning in demanding motorsport and performance applications.
Suits
- All Link ECUs.
- Other aftermarket ECUs with a 5V ratiometric analogue input.
- Turbocharged and supercharged engines running up to 58 psi (4.0 bar) of boost.

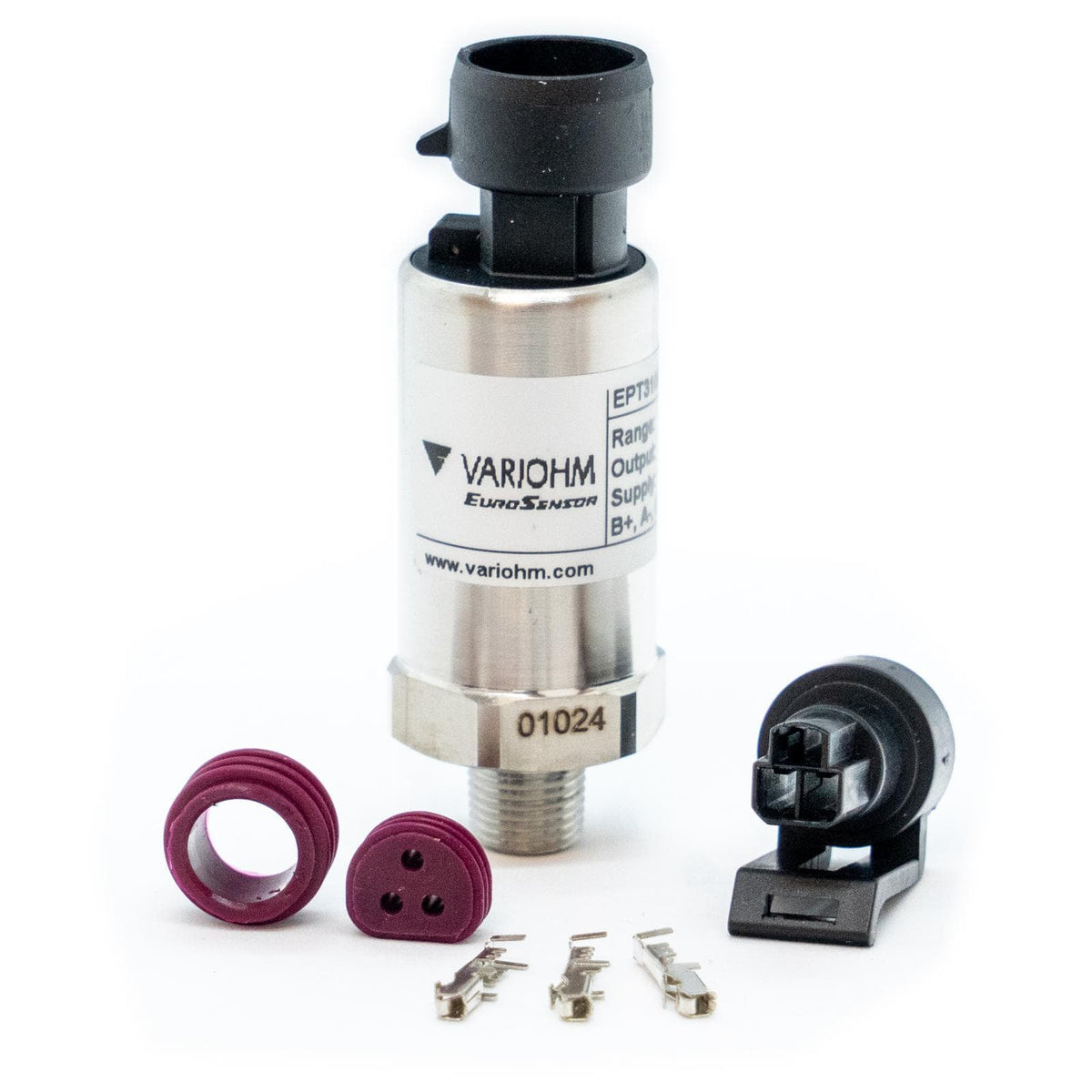

What's in the Box
- MAP Sensor 5 Bar
- TI Sensor Connector Kit
- Printed Accessory instructions
Specifications
-
Highlights: The Link 5 Bar MAP Sensor has the following specifications:; Pressure range: -1 to +4 bar (-14.5 to +58 psi).; 0.5-4.5V ratiometric output.; 5V supply voltage.; High-accuracy piezoresistive sensing element.; Stainless steel housing.; Fast response time (<1ms).; Excellent vibration and shock resistance.; Operating temperature: -40degC to +125degC.; IP66 rated.; Packard Metri-Pack connector.; 1/8" NPT Male pressure port.; Comes with TI Sensor Connector Kit.
-
Product Dimensions: 70mm(L)x30mm(W)x30mm(H); 2.76in(L)x1.18in(W)x1.18in(H)
-
Product Weight: 65 grams (2.29 ounces)
-
Electrical: Operating Voltage Range: 5V; Maximum Input Voltage: 5V
-
PCLink Calibration Name: "5 Bar Variohm"
-
Raw Calibration Specs: 0.5V = 0kPa, 4.5V = 500kPa
-
Connector: TI Sensor Connector Kit 101-0130
Notes
- Designed for use with a regulated 5V sensor supply.
- Using Link G4/G4+/G4X/G5 ECU's select the MAP sensor type in PC Link as 'Variohm 5 Bar'.
- Not recommended for naturally aspired engines or boost levels exceeding 4 BAR / 58psi.
