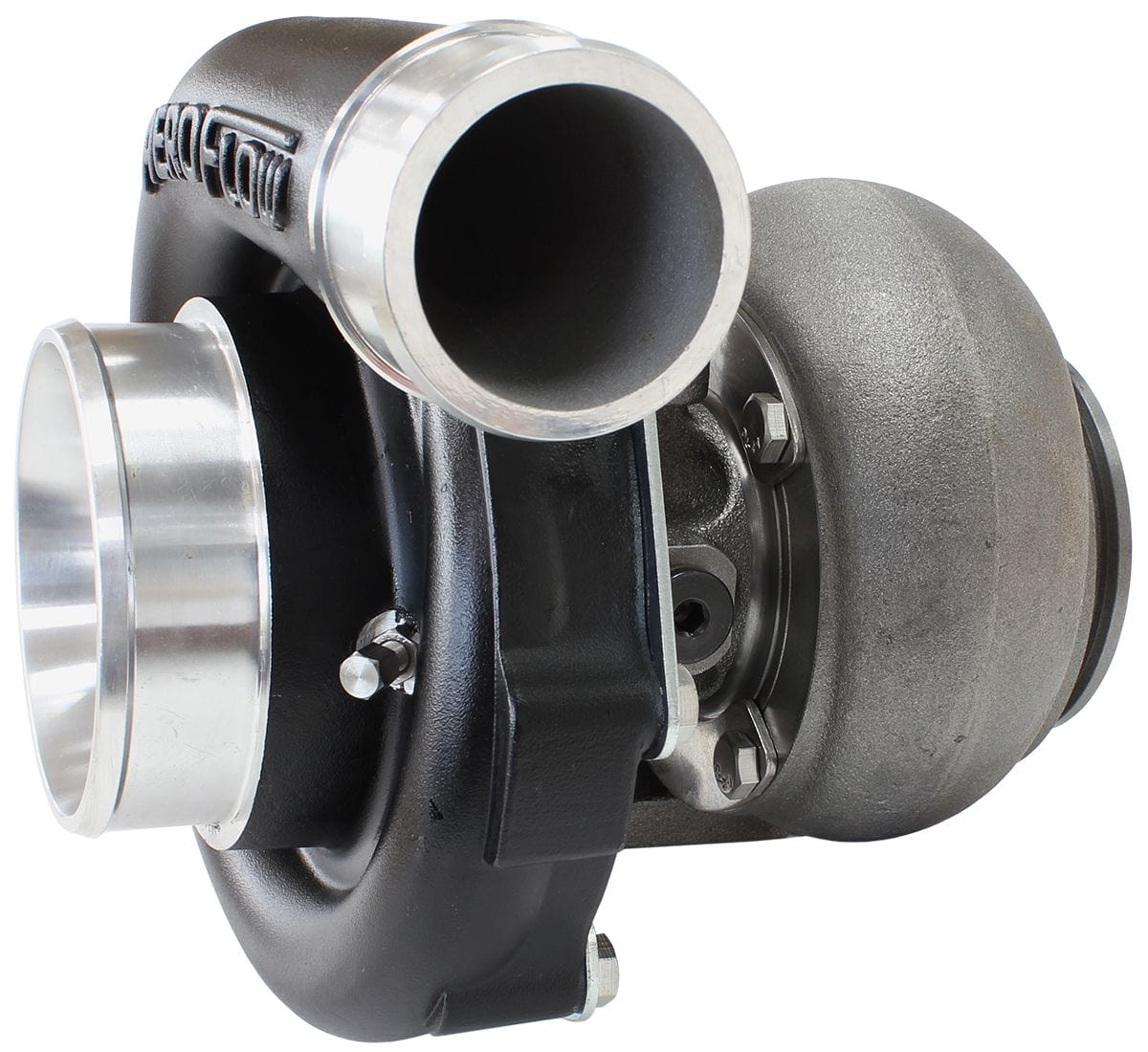

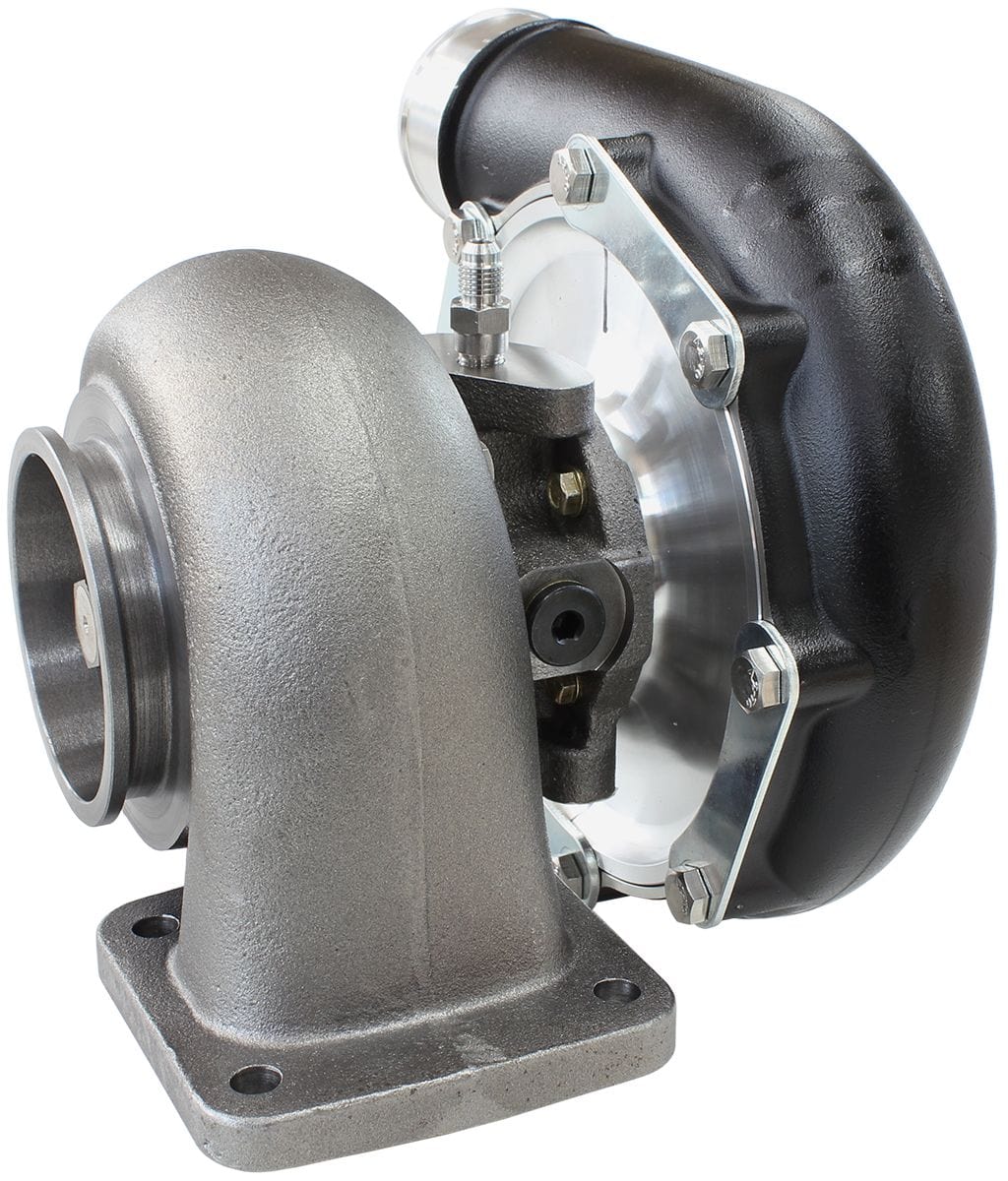

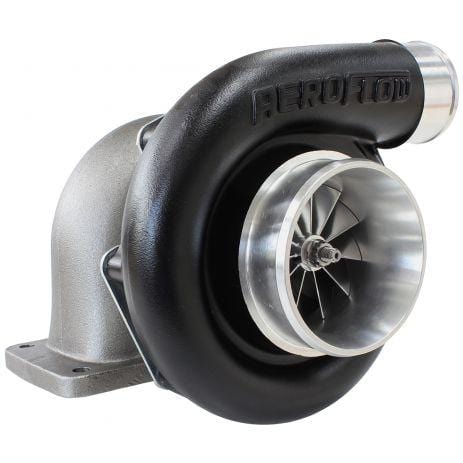

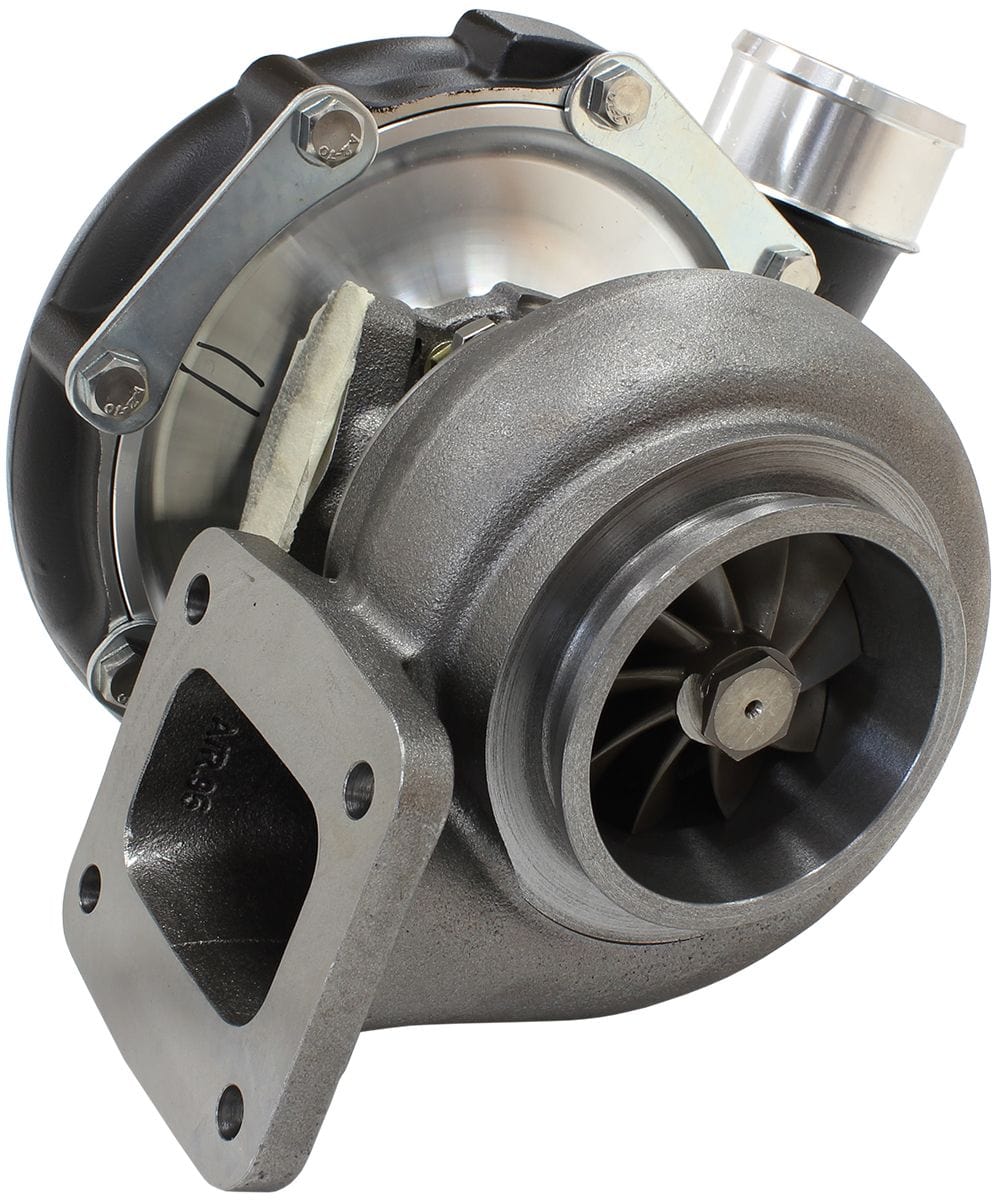

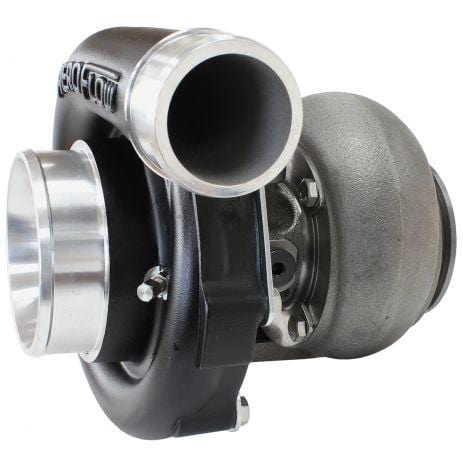

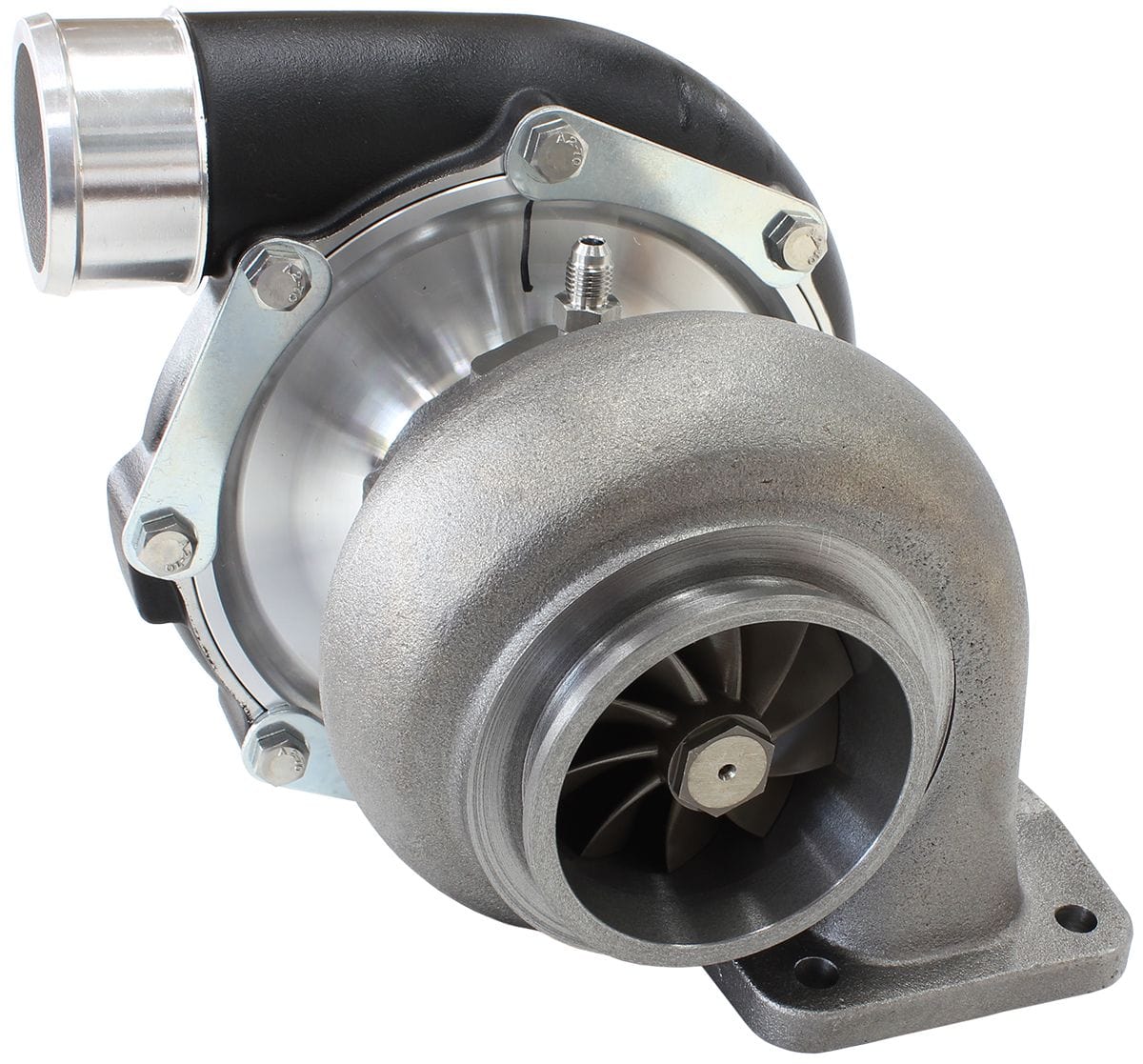

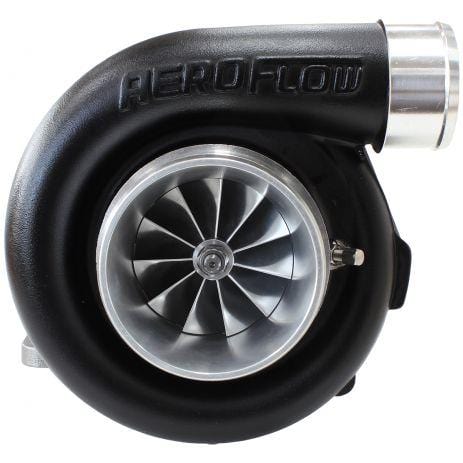

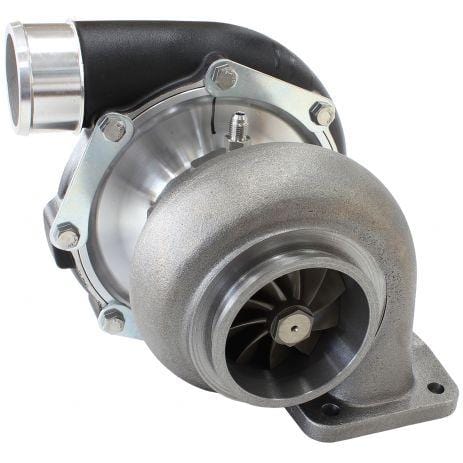

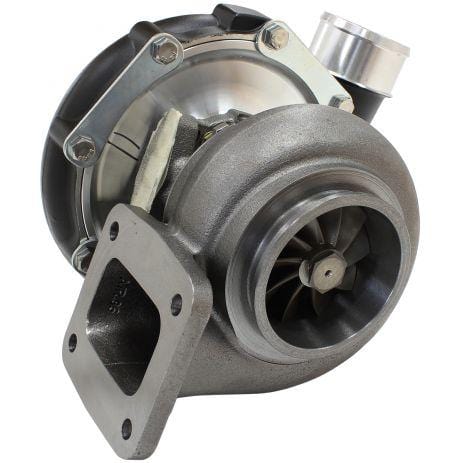

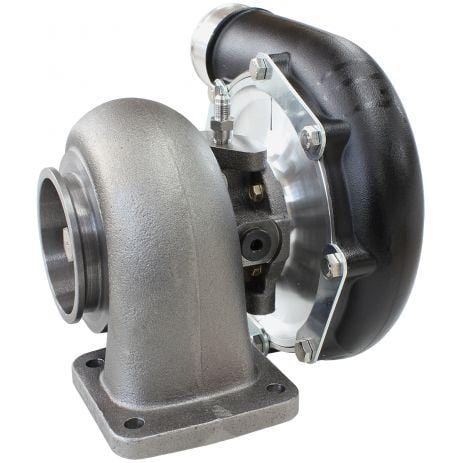

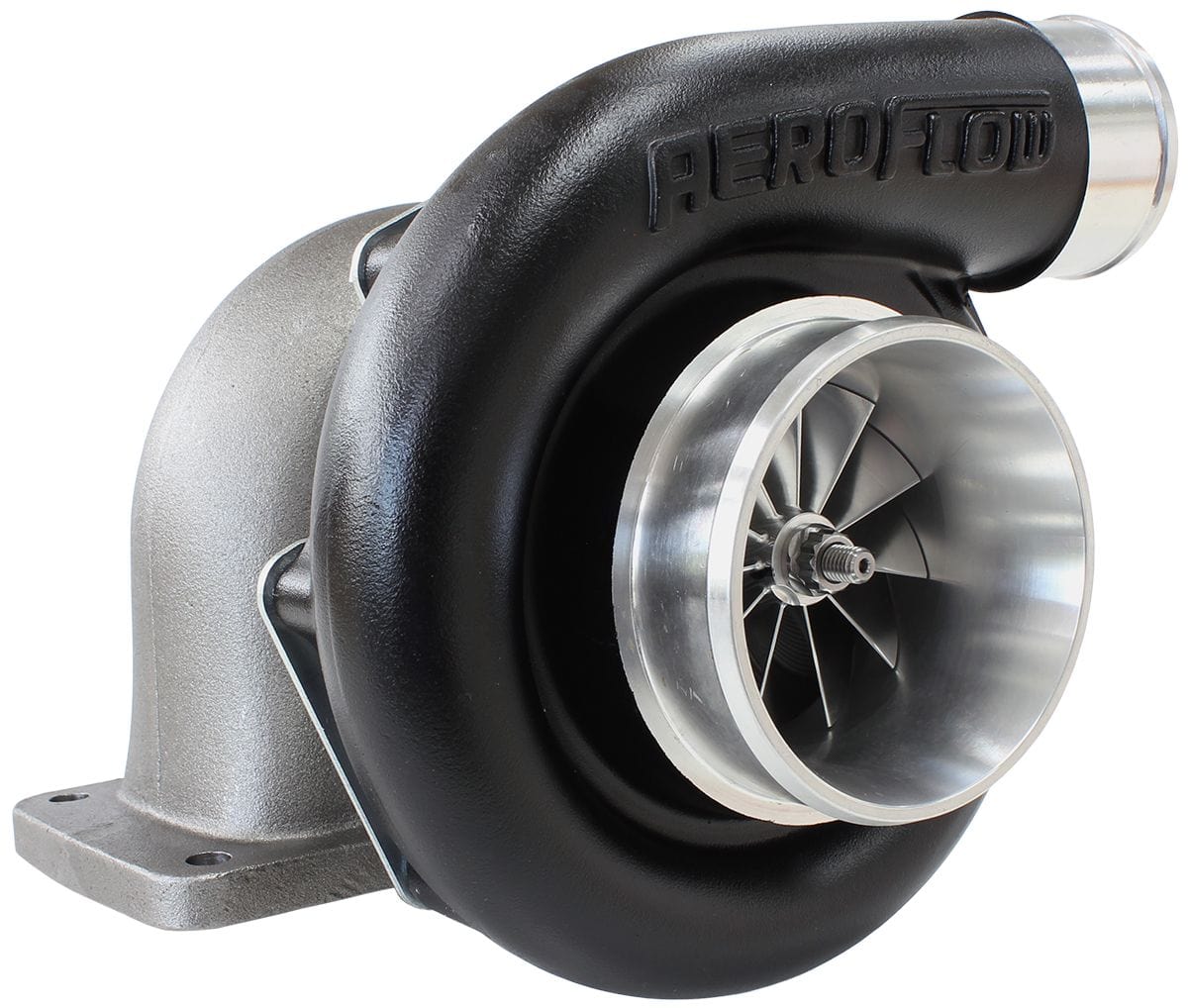

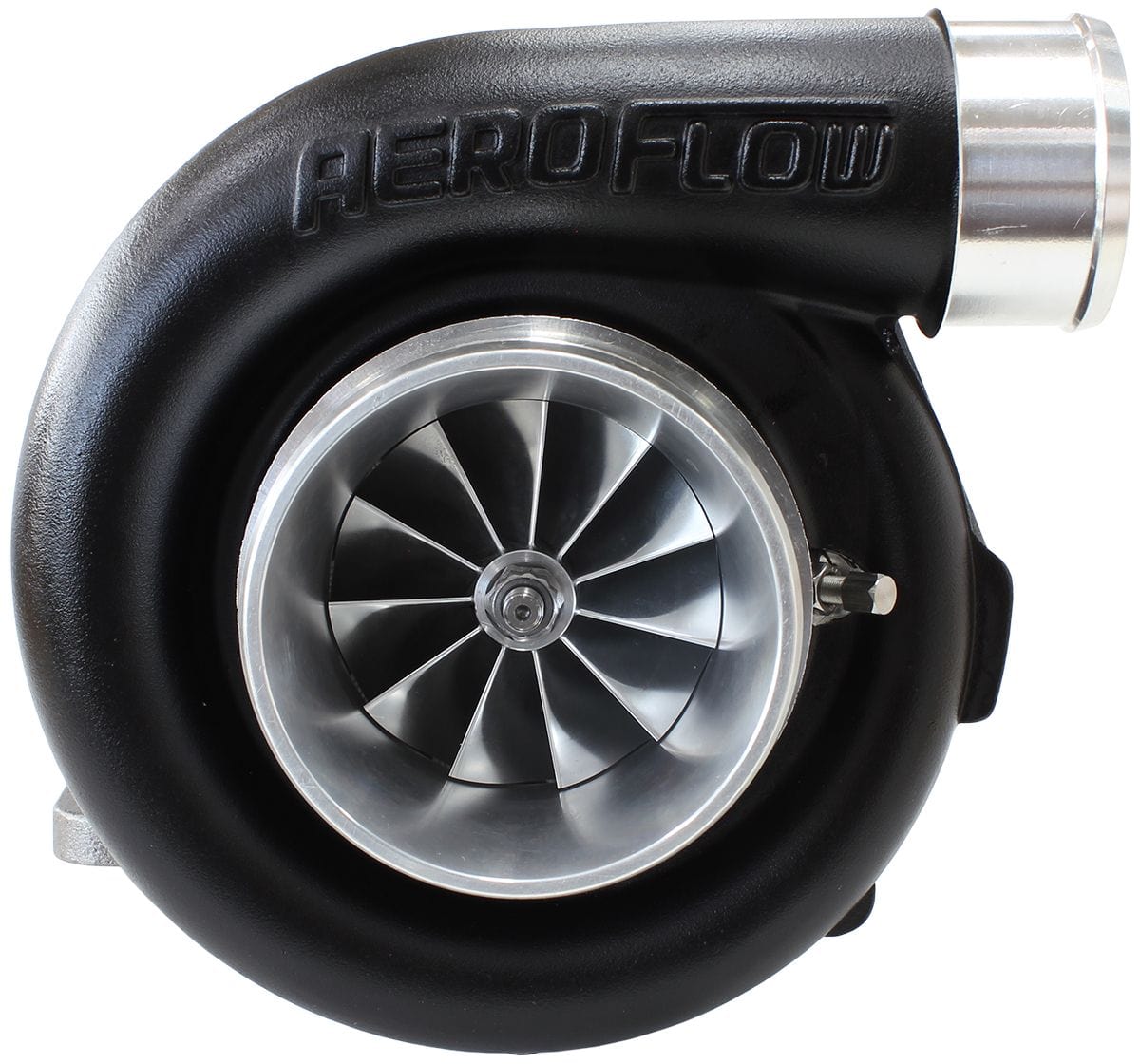

BOOSTED 7875 T4 .96 Turbocharger 1050HP, Hi Temp Black Finish

filler

Part Number: AF8005-4020BLK
Price:
Sale price$2,868.59

GST included Shipping calculated at checkout

Stock:
In stock

Description



BOOSTED 7875 T4 .96 Turbocharger 1050HP, Hi Temp Black Finish

External Wastegate, T4 Inlet Flange, V-Band Exhaust Flange.

DESCRIPTION

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.



SPECIFICATIONS

BOOSTED 7875 T4 Turbocharger Specifications

Recommended horsepower rating:  500-1050HP
Recommended engine displacement:  2.0L to 6.0L

- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- T4 single entry turbine inlet flange
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 7/16"-24 oil feed fitting with in-built restrictor
- 50.8mm bolt centre turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  78.13mm
Exducer:  102.4mm
Extended Tip:  106.3mm
A/R:
Compressor Inlet:  4" Slip fit
Compressor Outlet:  2.5" Slip fit

Turbine Specifications
Inducer:  82mm
Exducer:  75mm
A/R:  0.96
Turbine Inlet Flange:  T4
Turbine Outlet Flange:  V-Band (AF8080-1024)

Wastegate
External wastegate
