GKTech 86, GR86, BRZ Suspension Arm Package (GT86COMBO)
Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8
Brand: GKTech
Part Number: GT86COMBO
Description:

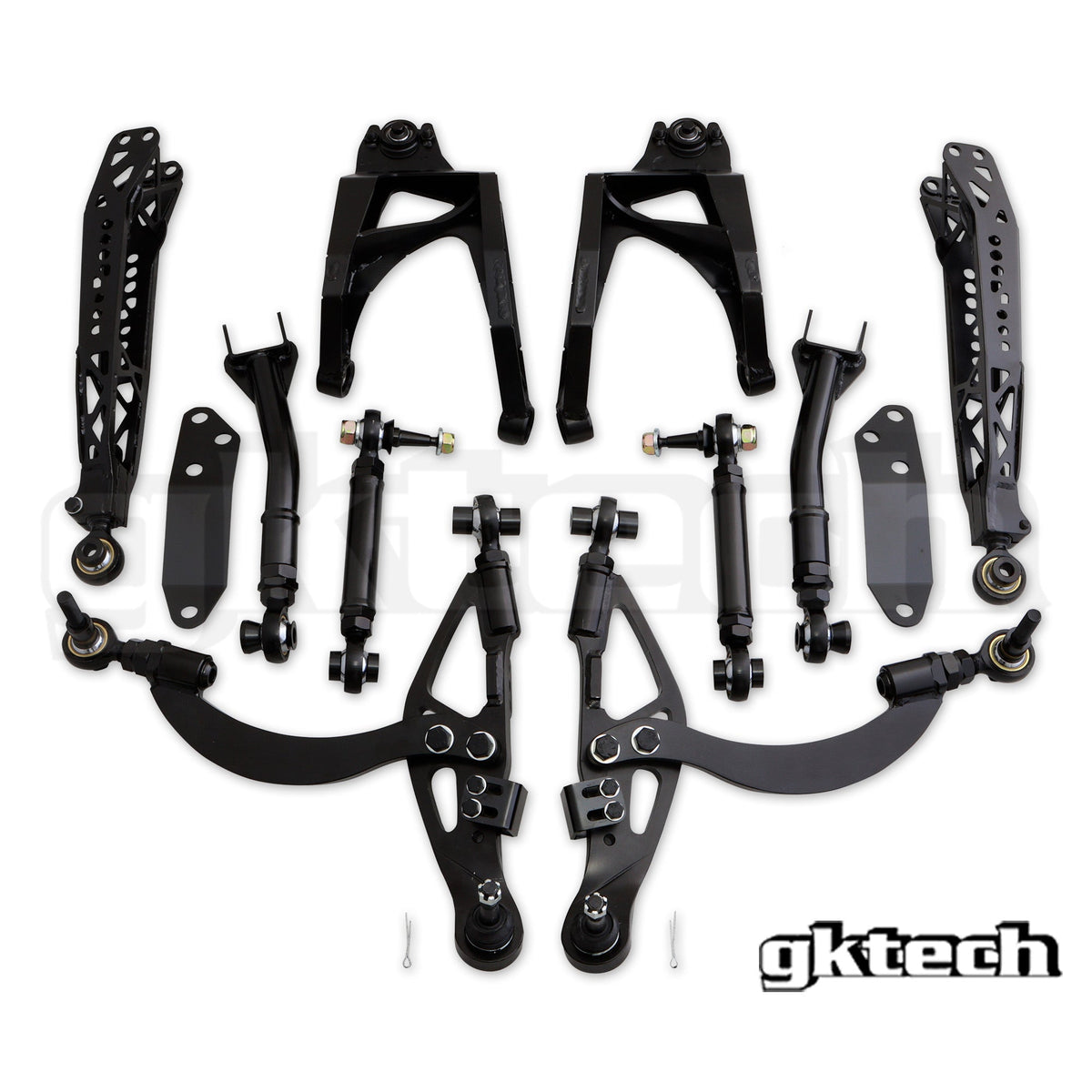

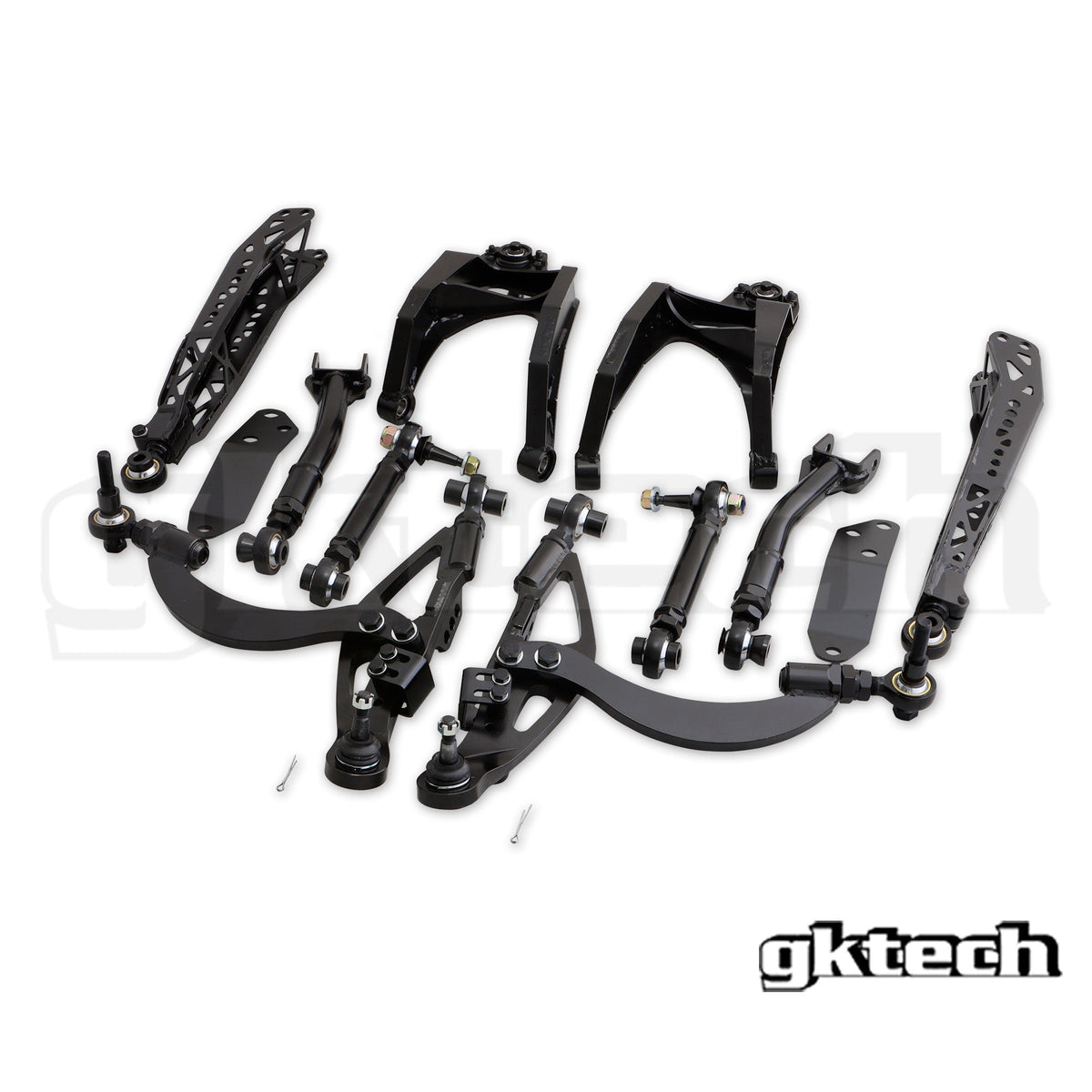

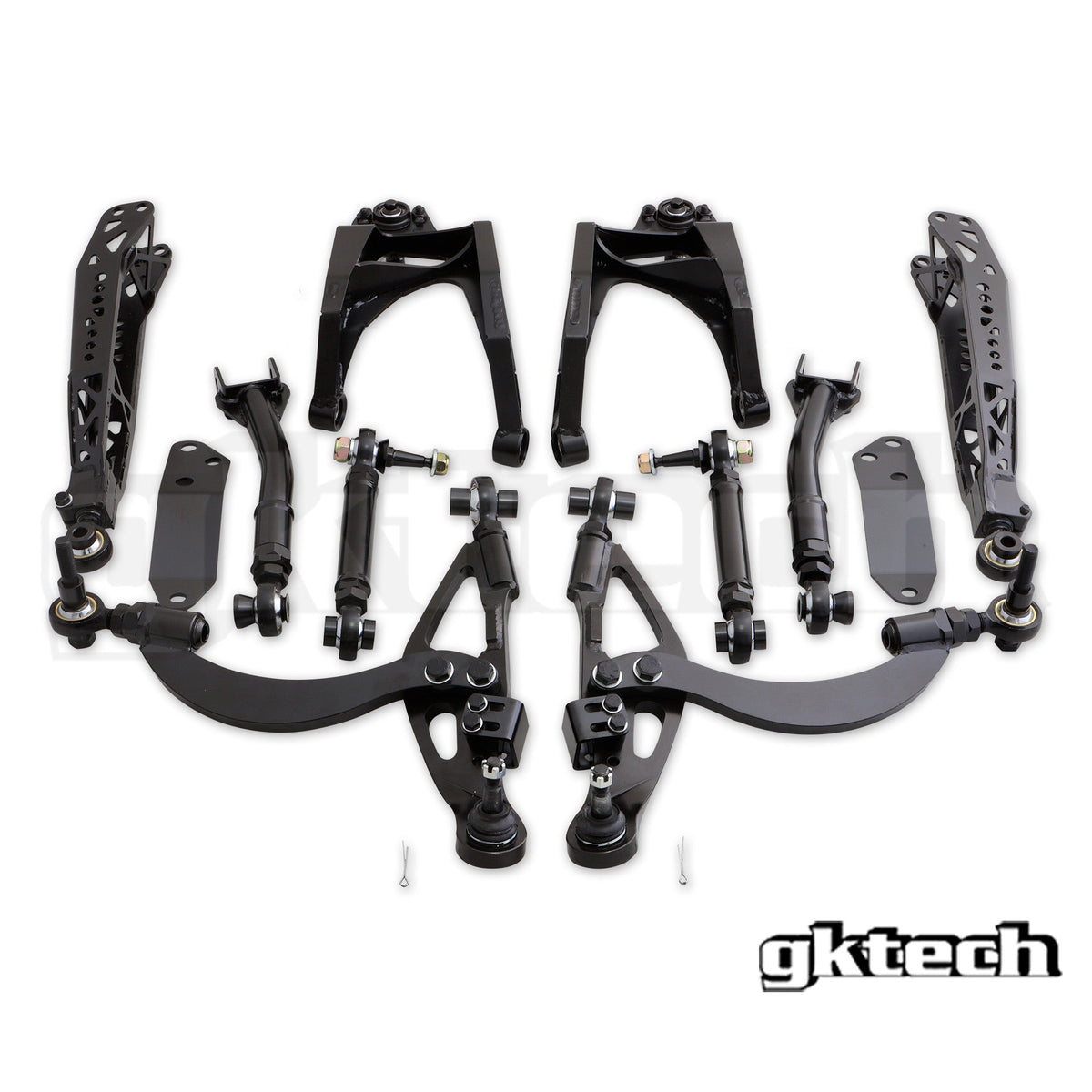

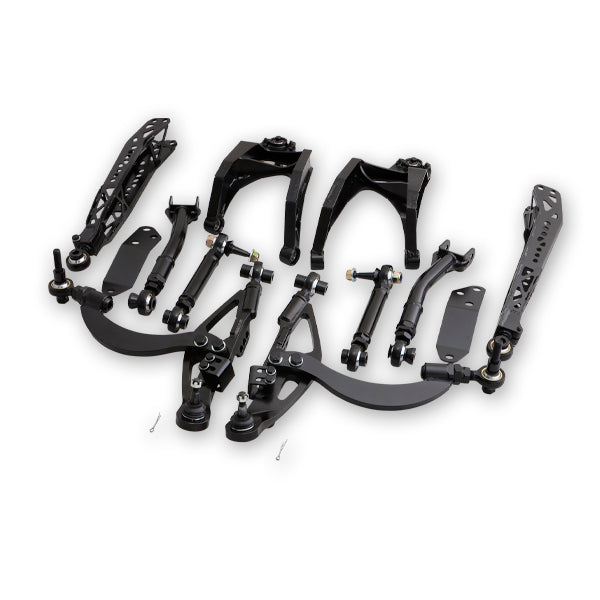

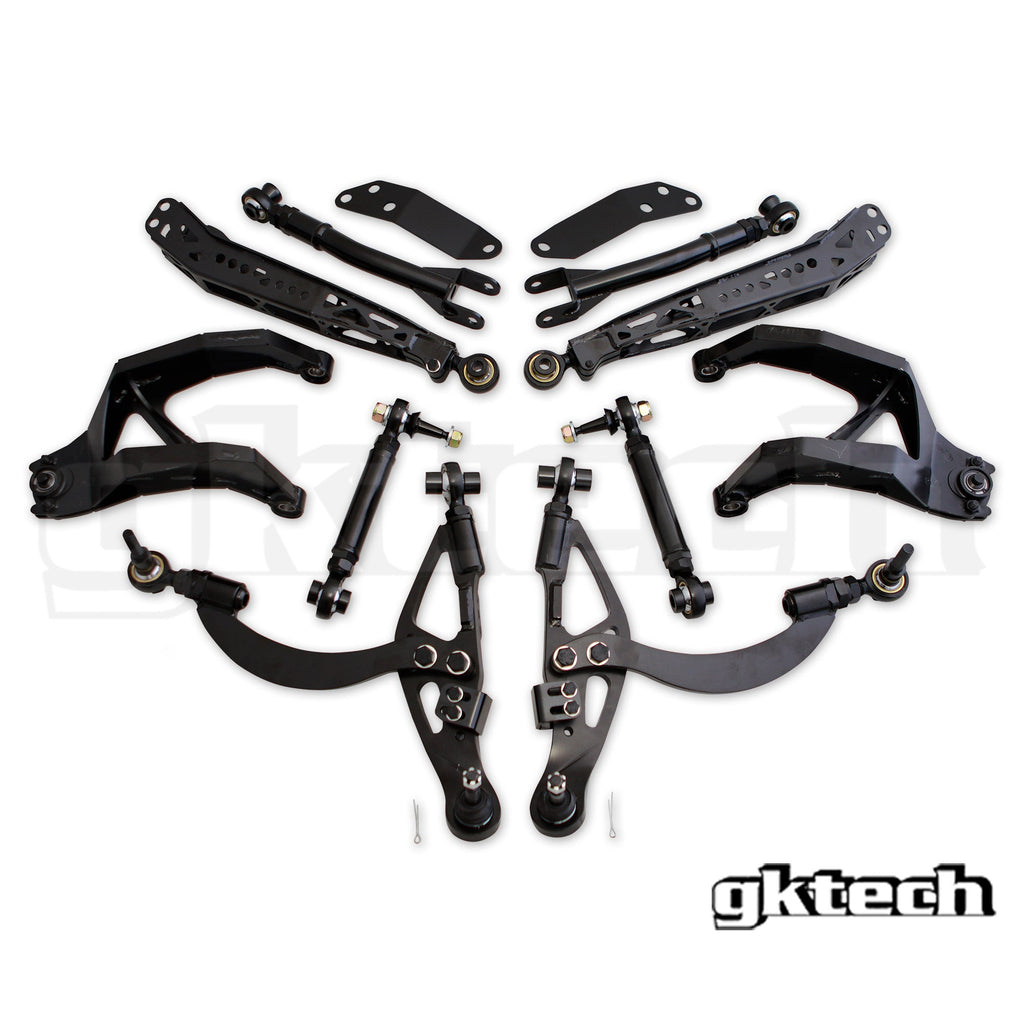

GKTech 86, GR86, BRZ Suspension Arm Package, kit part number GT86COMBO. Suits Toyota / Subaru 86 ZN6, BRZ ZC6, GR86 ZN8, BRZ ZD8. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The front lower control arms simplify, improve and replace the front lower control arm and caster rods on the FR-S / GR86 or BRZ, while also supporting around 65+ degrees of steering lock.
They are CAD designed, FEA tested, have CNC machined ends and the main body is laser cut and bent from 4130 Chromoly Steel. Adjustable, with 2 different length options; OEM length and adjust out to +30mm from OEM or; +40mm through to +70mm over OEM length.
For more information
au.gktech.com/products/86-gr86-brz-front-lower-control-arms
REAR LOWER CONTROL ARMS
Their on car adjustable Rear Lower Control Arms (RLCA's) allow for 55mm of track adjustment, motion ratio adjustment and can be used to lower your car 25mm.
Adjustable rear lower control arms allow adjustment of the rear multi-link suspension. Typically, adjustable LCA's can be adjusted to alter camber however they have incorporated some extra features.
For more information
this product
REAR UPPER CAMBER ARMS
Their upper camber arms allow adjustment of the upper arm, fixing the issue of camber change when lowering the vehicle. As well as eliminating the OEM rubber bushes, which allow zero flex and have zero chill when in operation. These are replaced with super smooth spherical joints, allowing the arm to operate on its correct pane! Their design is unique in that the arm can be adjusted insitu and there are no rod ends in bending.
Designed with the MOST amount of driveshaft clearance, a common issue found when using rear drop knuckles on these cars!
For more information
this product
REAR TOE ARMS
Adjustable rear toe arms give you the ability to adjust and tune your vehicle's rear toe.
The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.
For more information
this product
REAR TRACTION ARMS + TRACTION MOD
The traction mod + arm combo is a great way to gain more traction under throttle. Their combo includes an easy to bolt on double sheer relocation bracket in addition to an adjustable traction arm to fine tune your alignment.
Rear traction rods allow adjustment of the rear multi-link suspension. They can be adjusted to eliminate bump steer and alter other rear suspension traction settings to improve suspension response.
For more information
this product
Kit Includes
- 1 x 86 / GR86 / BRZ Traction mod + arm combo (GT86-TRTN)
- 1 x 86 / GR86 / BRZ REAR TOE ARMS (GT86-TOEX)
Options
-
Short or long FLCA's?: None, OEM length to +30mm (GT86-0LCA), +40mm through to +70mm (GT86-FLCA)
-
Adjustable rear upper camber arms?: None, 86 / GR86 / BRZ Rear upper camber arm (RUCA) (GT86-RUCA)
-
Adjustable rear lower control arms?: None, 86 / GR86 / BRZ Rear Lower Control Arms (RLCA's) (GT86-RLCA)
Suits
- Toyota 86 ZN6 (2012–2021), FA20
- Subaru BRZ ZC6 (2012–2021), FA20
- Toyota GR86 ZN8 (2021–on), FA24
- Subaru BRZ ZD8 (2021–on), FA24
