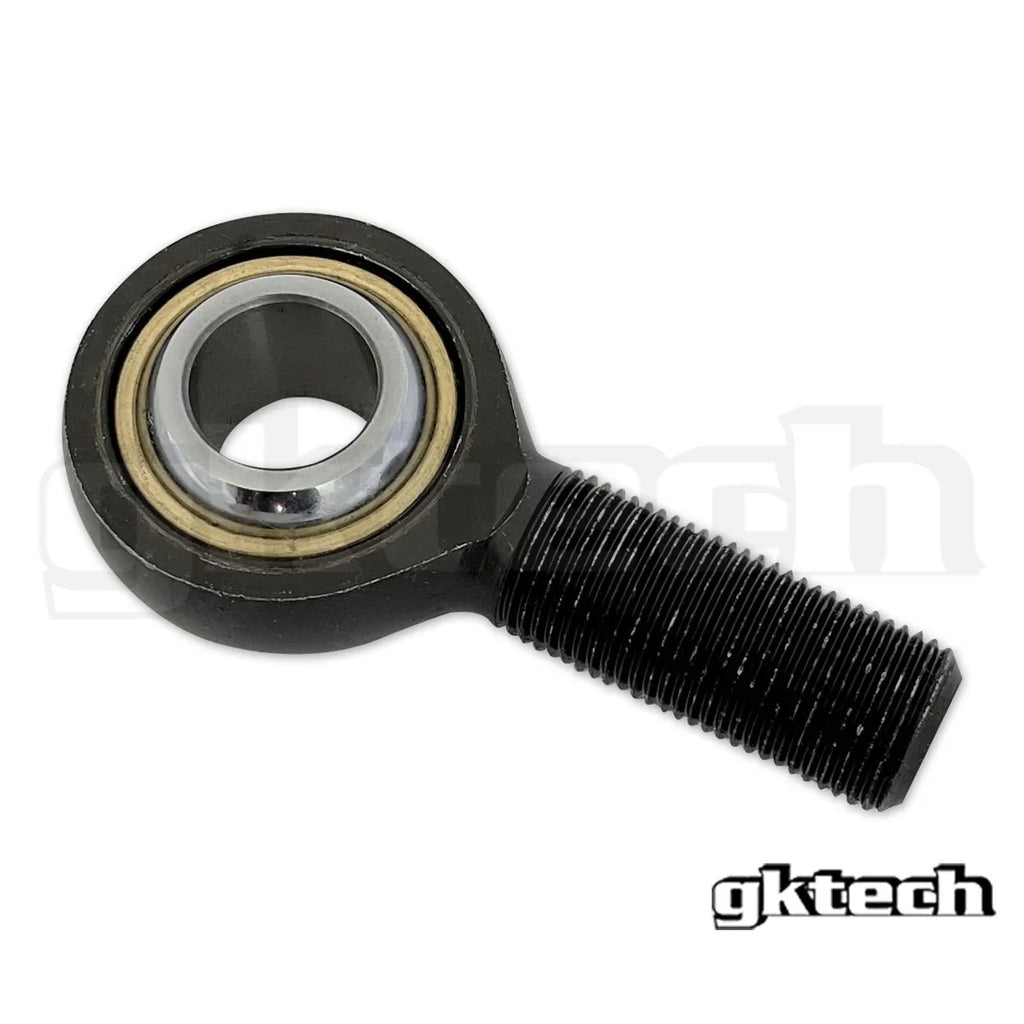

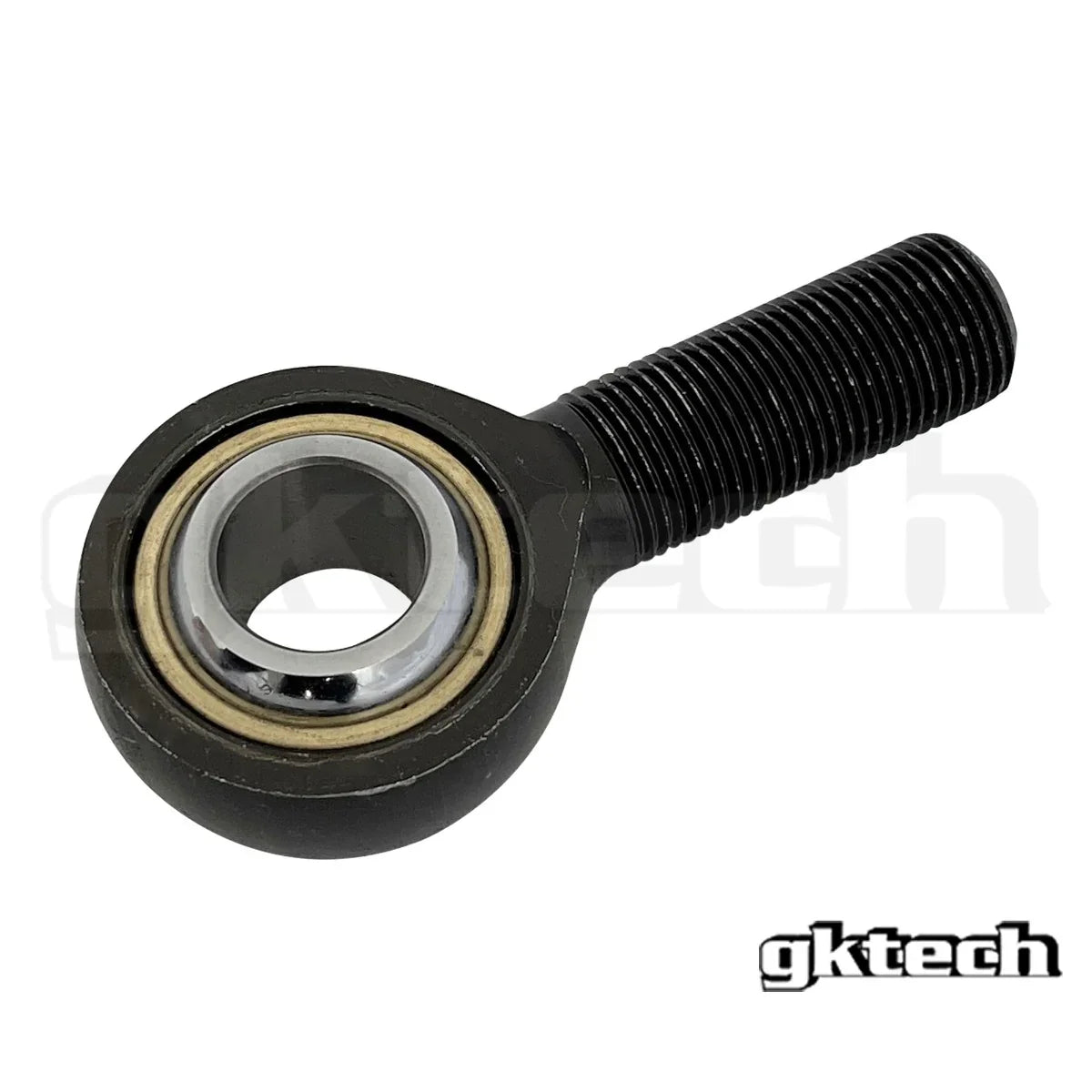

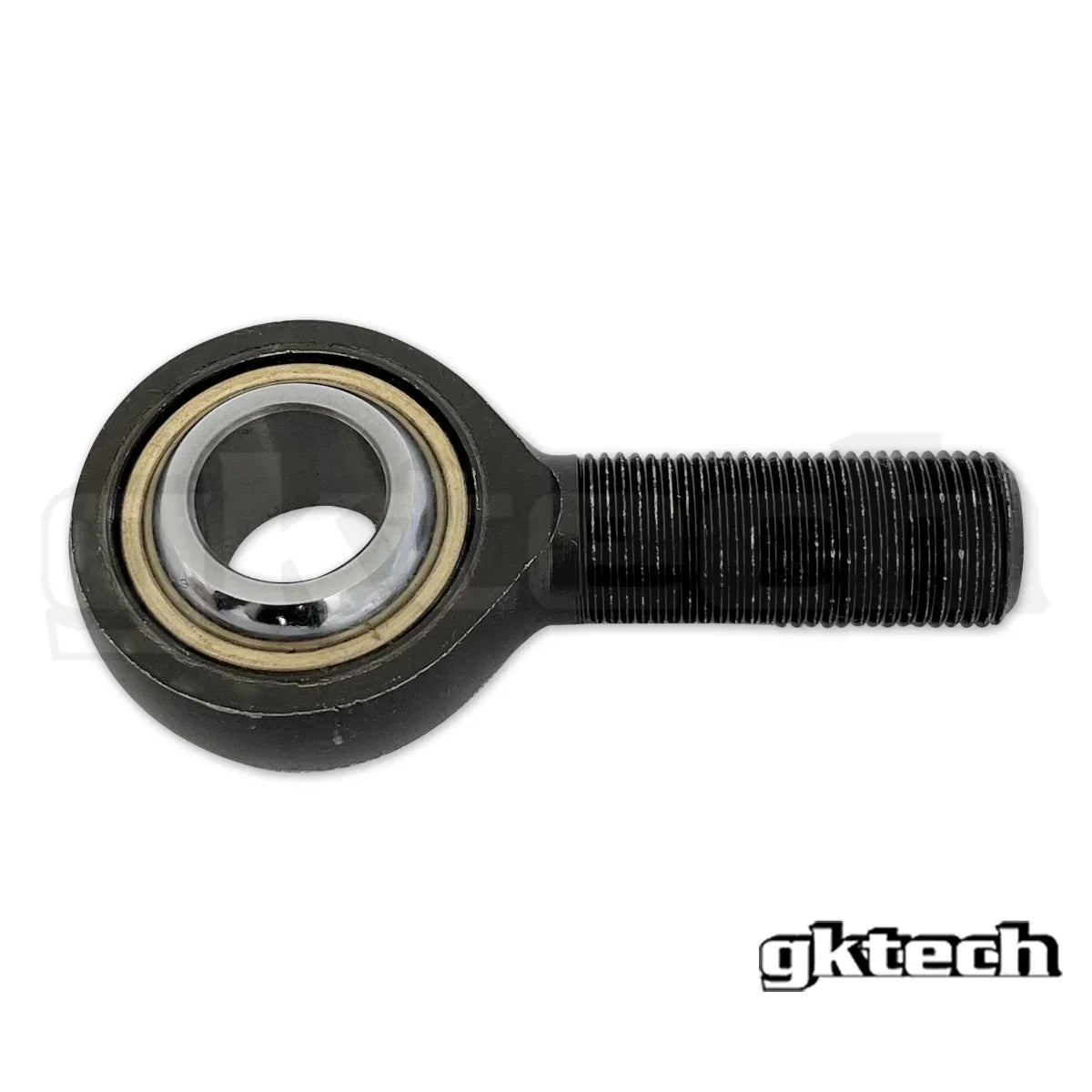

GKTech Replacement bearing (PCML13TS)
Suits Nissan Z33, V35
Brand: GKTech
Part Number: PCML13TS
Description:
GKTech Replacement bearing, part number PCML13TS. Suits Nissan 350Z Z33, Nissan Skyline V35. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Replacement PCML13TS bearing
Used in the following GKTECH products: 350Z/V35/G35 Grip Front Lower Control Arms (350Z-CROD)
PCML13TS
| IMPERIAL |
METRIC |
| ROD END BALL BORE SIZE |
ROD END BALL BORE SIZE |
| 0.8000 in |
20.3200 mm |
| ROD END BALL WIDTH |
ROD END BALL WIDTH |
| 0.8750 in |
22.2250 mm |
| THREAD LENGTH |
THREAD LENGTH |
| 1.75000 in |
44.4500 mm |
| THREAD SIZE |
THREAD SIZE |
| 3/4 - 16 UNF LH |
3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER |
ROD END HEAD DIAMETER |
| 1.7500 in |
44.4500 mm |
| ROD END MISALIGNMENT ANGLE |
ROD END MISALIGNMENT ANGLE |
| 24 degrees |
24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) |
ROD END STATIC LOAD CAPACITY (kg) |
| 28,025 lbs |
12,712 kg |
| ROD END MATERIAL |
ROD END MATERIAL |
| Chromoly |
Chromoly |
| LUBRICATION |
LUBRICATION |
| PTFE lined |
PTFE lined |
Suits
- Nissan 350Z Z33 (2002–2009), VQ35DE
- Nissan Skyline V35 (2001–2007), VQ35DE
