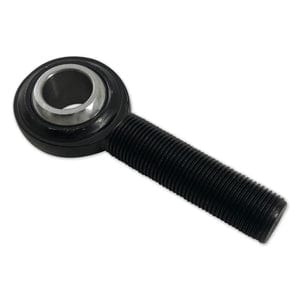

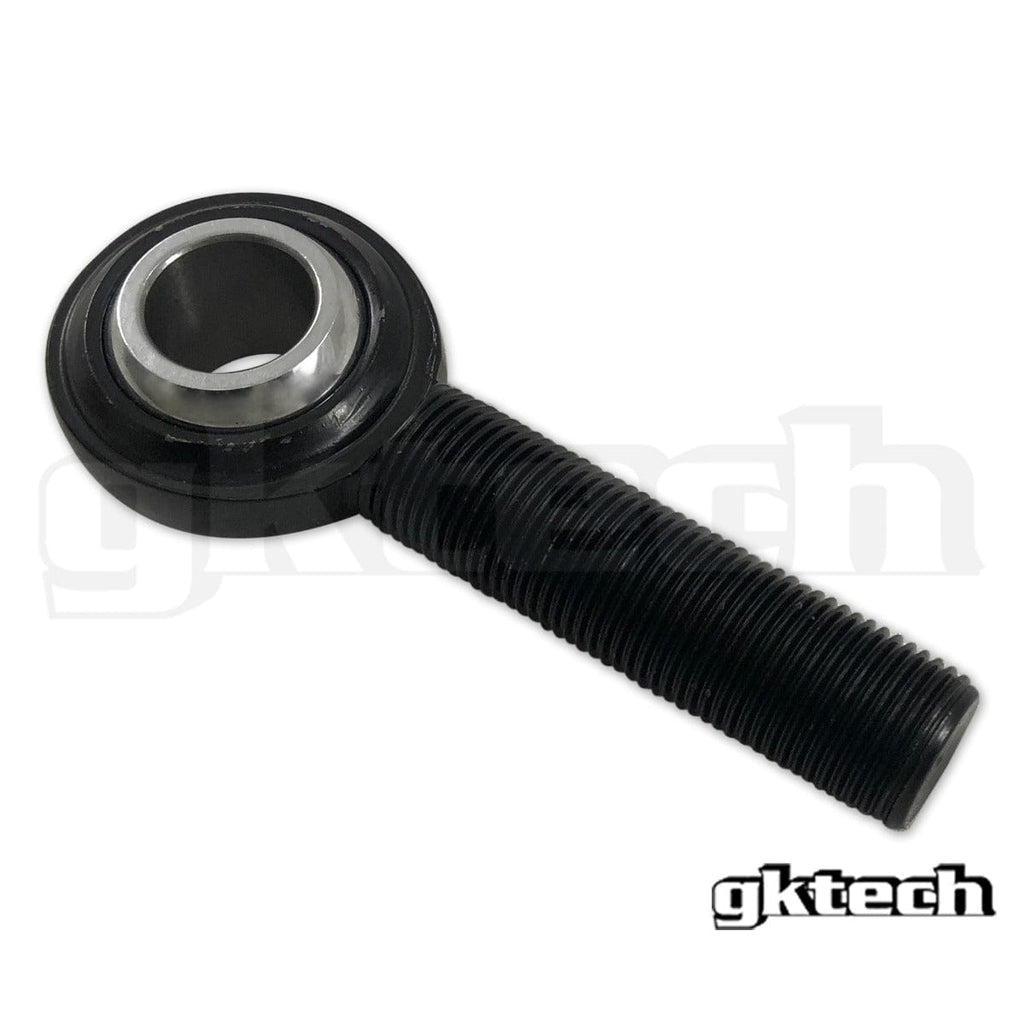

GKTech Replacement bearing (PCML12TE)
Suits a wide range of Nissan models
Brand: GKTech
Part Number: PCML12TE
Description:
GKTech Replacement bearing, part number PCML12TE. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Silvia S14, Nissan Silvia S15, Nissan Skyline GT-R R32, Nissan Skyline GTS-T R32, Nissan Skyline GT-R R33, Nissan Skyline GTS-T R33, Nissan Skyline GT-T R34, Nissan 350Z Z33, Nissan 370Z Z34, Nissan Skyline V35, Nissan Skyline V36, Nissan 300ZX Z32. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Replacement PCML12TE bearing (can also be replaced with PCML12T, non extended version)
Used in the following GKTECH products:
V3 and V4 Rear traction rods (SKU = REAR-TRTN when used in S13/R32 subframe) If running REAR-TRTN in S14, S15, R33 or R34 subframe use the PCML12TES
PCML12TE
| IMPERIAL |
METRIC |
| ROD END BALL BORE SIZE |
ROD END BALL BORE SIZE |
| 0.7500 in |
19.0500 mm |
| ROD END BALL WIDTH |
ROD END BALL WIDTH |
| 0.8750 in |
22.2250 mm |
| THREAD LENGTH |
THREAD LENGTH |
| 1.7500 in |
44.4500 mm |
| THREAD SIZE |
THREAD SIZE |
| 3/4 - 16 UNF LH |
3/4 - 16 UNF LH |
| ROD END HEAD DIAMETER |
ROD END HEAD DIAMETER |
| 1.8700 in |
47.4980 mm |
| ROD END MISALIGNMENT ANGLE |
ROD END MISALIGNMENT ANGLE |
| 24 degrees |
24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) |
ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs |
13,739 kg |
| ROD END MATERIAL |
ROD END MATERIAL |
| Chromoly |
Chromoly |
| LUBRICATION |
LUBRICATION |
| PTFE lined |
PTFE lined |
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan 350Z Z33 (2002–2009), VQ35DE
- Nissan 370Z Z34 (2009–2020), VQ37VHR
- Nissan Skyline V35 (2001–2007), VQ35DE
- Nissan Skyline V36 (2006–2014), VQ37VHR
- Nissan 300ZX Z32 (1989–2000), VG30DETT
