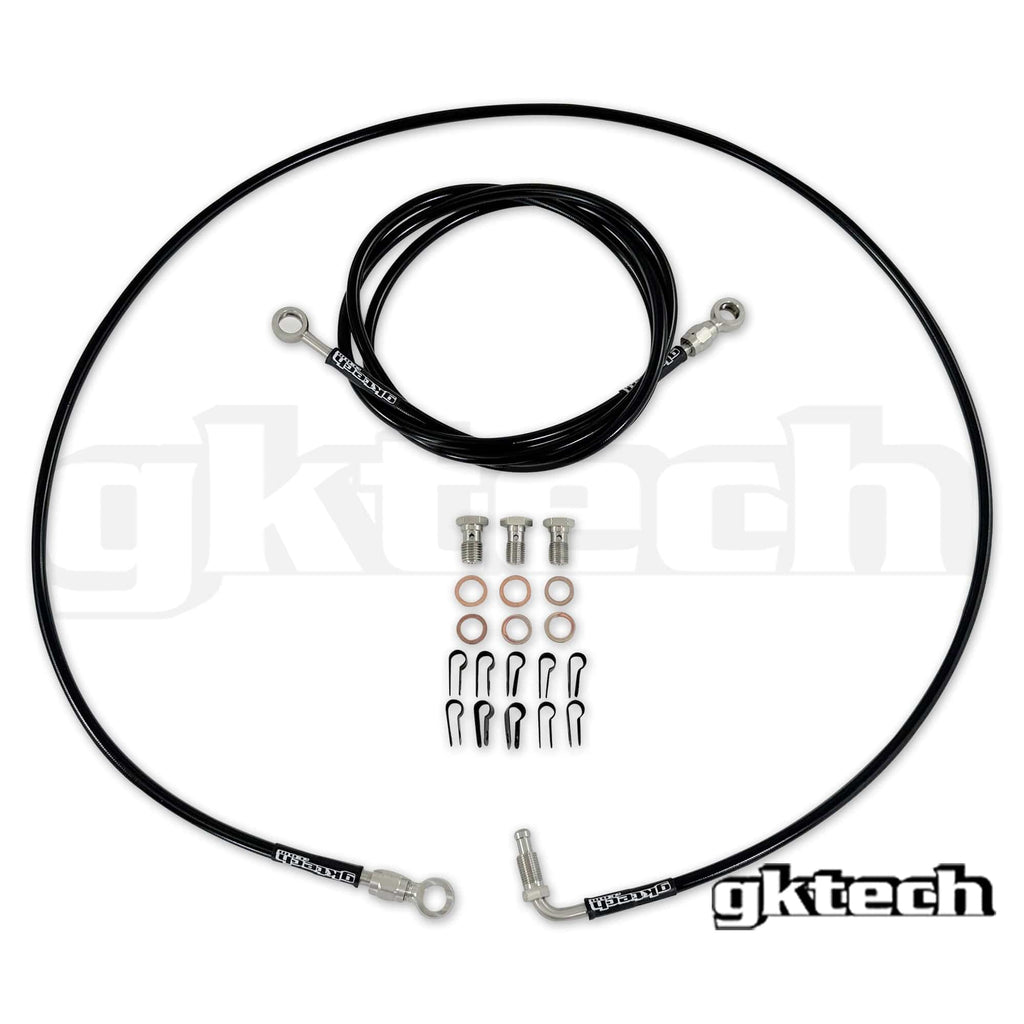

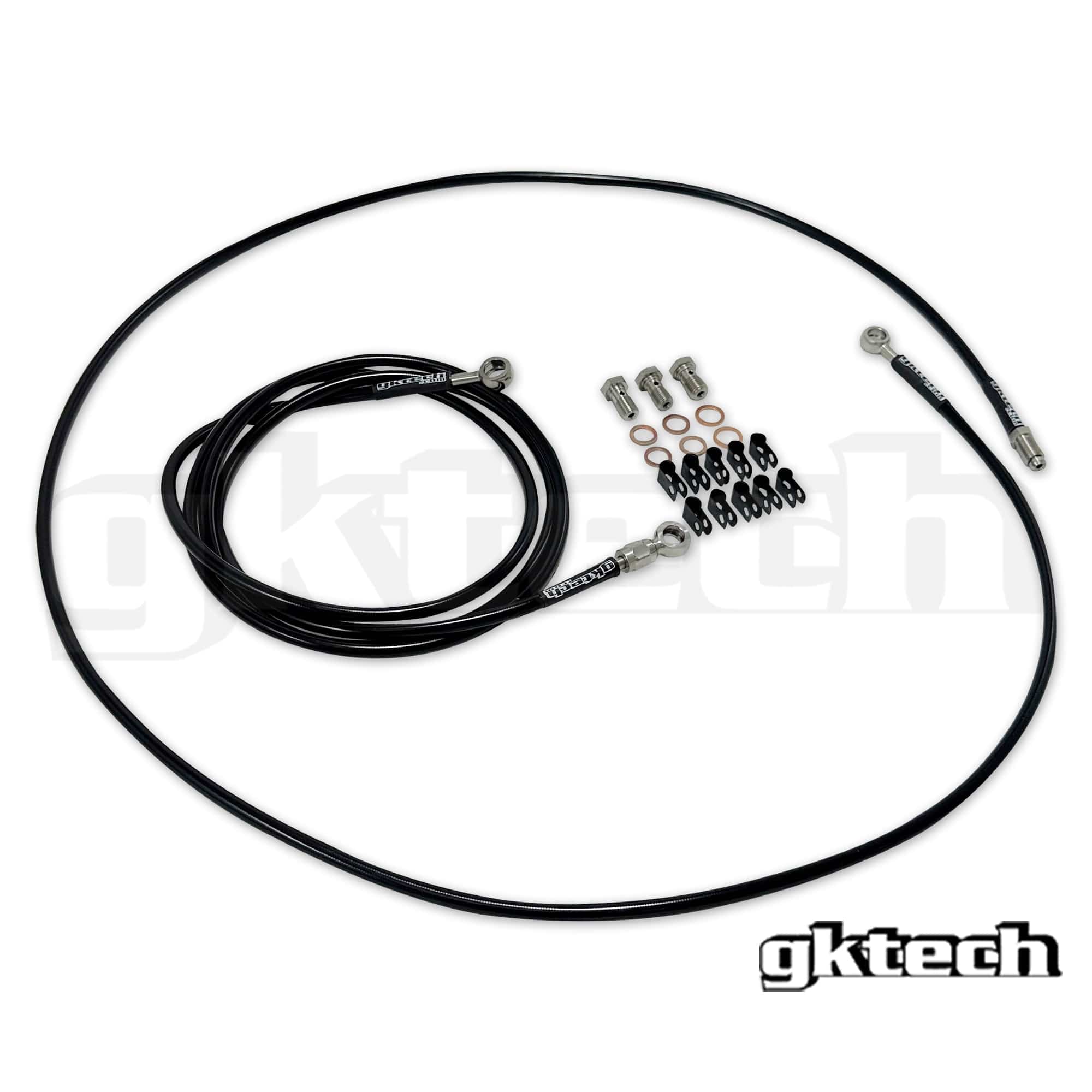

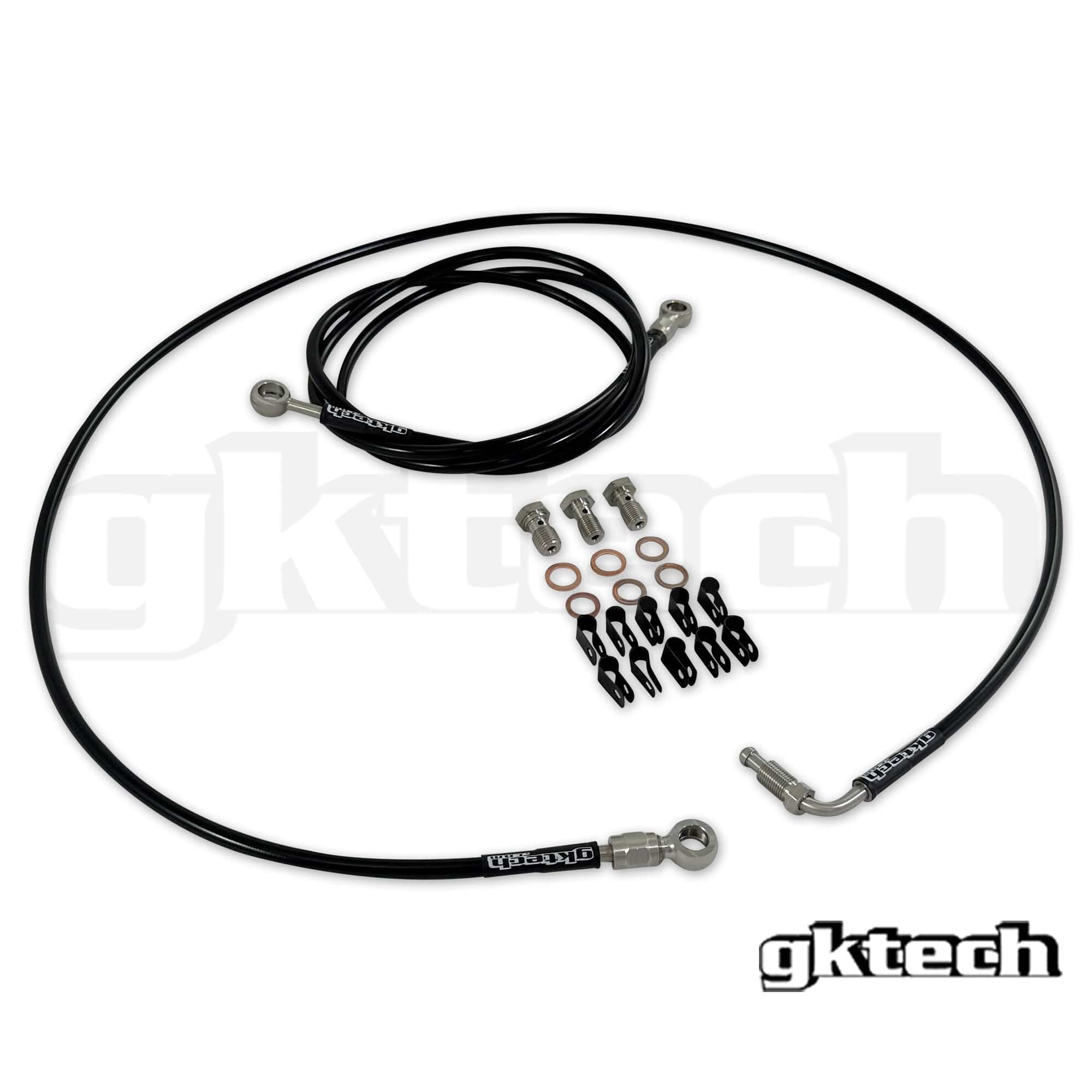

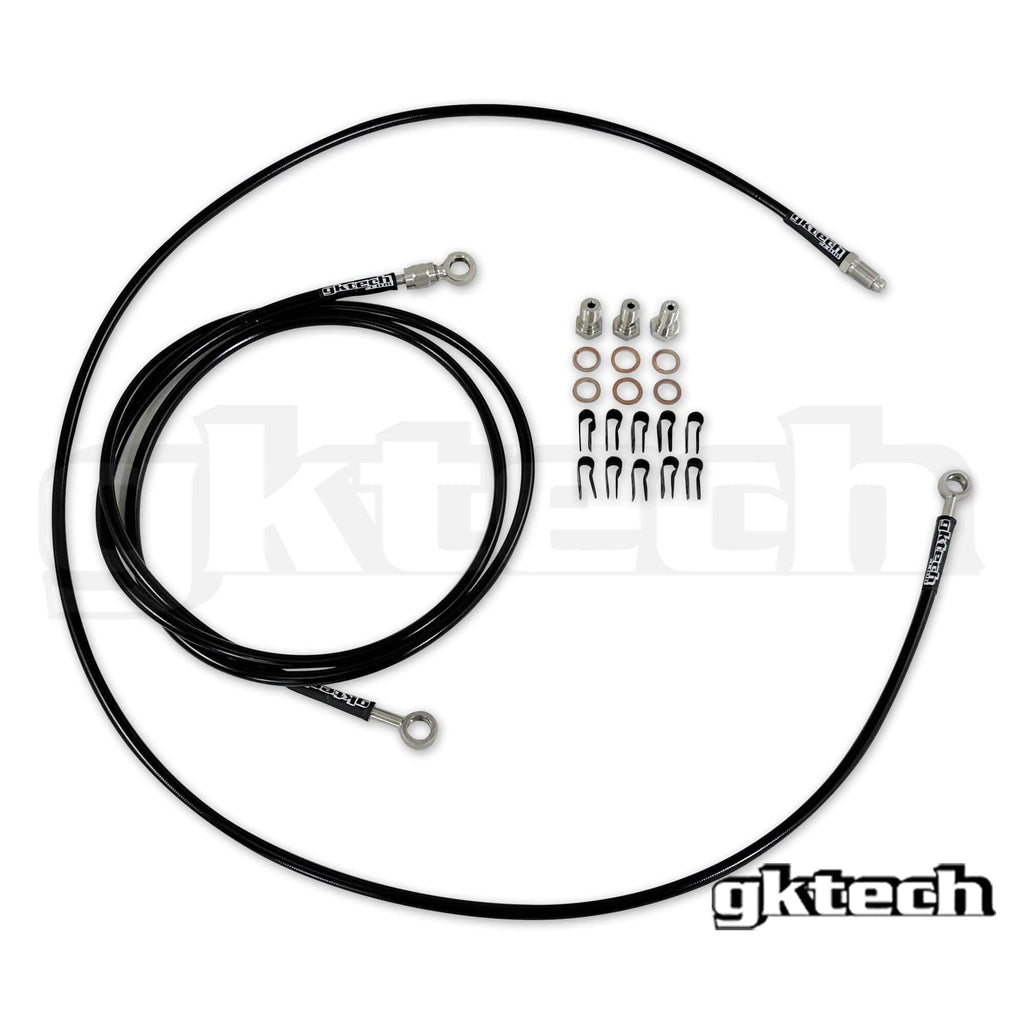

GKTech In-line braided brake line kit
Suits a wide range of Nissan models
Brand: GKTech
Part Number: BUDG-ILNE, LHDB-ILNE, HDDN-ILNL, HDDN-ILNR
Description:
GKTech In-line braided brake line kit. Suits Nissan 180SX S13, Nissan Silvia S13, Nissan Silvia S14, Nissan Silvia S15, Nissan Skyline GT-R R32, Nissan Skyline GTS-T R32, Nissan Skyline GTS4 R32, Nissan Skyline GT-R R33, Nissan Skyline GTS R33, Nissan Skyline GTS-T R33, Nissan Skyline GTS4 R33, Nissan Skyline GT R34, Nissan Skyline GT-T R34, Nissan Skyline GT-R R34, Nissan Cefiro A31, Nissan Laurel C33, Nissan Laurel C34, Nissan Laurel C35. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH In-line braided brake line kit is designed to be used with your existing brake calipers.
These lines are to suit a master cylinder with a 3/8-24 threaded outlet and a 7/16-20 outlet like used with the Flux in-line master cylinders that GKTech sell.

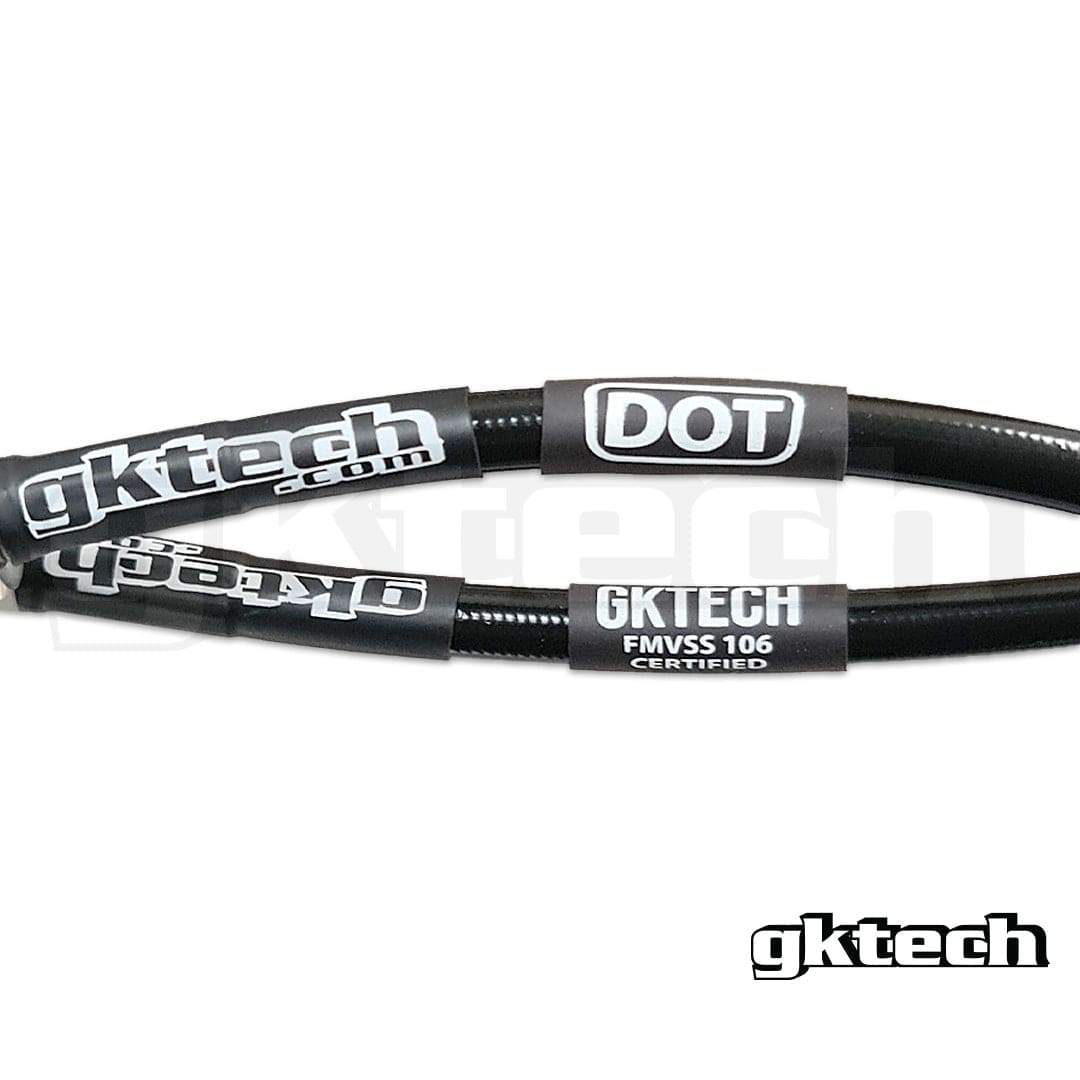

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
There are four options to choose from, if your handbrake is mounted in front of the shifter, meaning shorter lines are required, then please choose the in front variant. If your handbrake is mounted behind the shifter (towards the back of the vehicle) then please choose the rear option. The LHD and RHD options are self explanatory.
If your handbrake is mounted behind the shifter, eg. if you have their hidden handbrake or budget hydraulic handbrake with the lever mounted horizontally then you would select the behind shifter variant.
- For race cars only however no permanent modifications are required.
NOTE: Can NOT be installed on cars with ABS still fitted however can be used in conjunction with their ABS delete kit.
Suits
- Nissan 180SX S13 (1989–1991), CA18DET
- Nissan Silvia S13 (1988–1991), CA18DET
- Nissan 180SX S13 (1991–1998), SR20DET
- Nissan Silvia S13 (1991–1993), SR20DET
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan Skyline GTS4 R32 (1989–1993), RB20DET
- Nissan Skyline GT-R R33 (1995–1998), RB26DETT
- Nissan Skyline GTS R33 (1993–1998), RB25DE
- Nissan Skyline GTS-T R33 (1993–1998), RB25DET
- Nissan Skyline GTS4 R33 (1993–1998), RB25DET
- Nissan Skyline GT R34 (1998–2002), RB25DE
- Nissan Skyline GT-T R34 (1998–2002), RB25DET
- Nissan Skyline GT-R R34 (1999–2002), RB26DETT
- Nissan Cefiro A31 (1988–1994), RB20DET
- Nissan Laurel C33 (1989–1993), RB20DET
- Nissan Laurel C34 (1993–1997), RB25DET
- Nissan Laurel C35 (1997–2002), RB25DET
Part Numbers
- In front of shifter - RHD: BUDG-ILNE
- In front of shifter - LHD: LHDB-ILNE
- Behind shifter - LHD: HDDN-ILNL
- Behind shifter - RHD: HDDN-ILNR
