Link ECU Combined Pressure and Temperature Sensor CPTS
Bosch Liquid Pressure/Temperature Combined Sensor with mating connector and terminals.
Brand: Link ECU
Part Number: 101-0320
Description:
The Link Combined Pressure and Temperature Sensor (CPTS) combines pressure and temperature measurement into one compact unit. Designed to monitor liquid pressure and temperature simultaneously, it simplifies wiring, reduces installation space and provides accurate data for engine protection and tuning.
Suits
- All Link ECUs.
- Other aftermarket ECUs with analogue pressure and temperature inputs.
What's in the Box

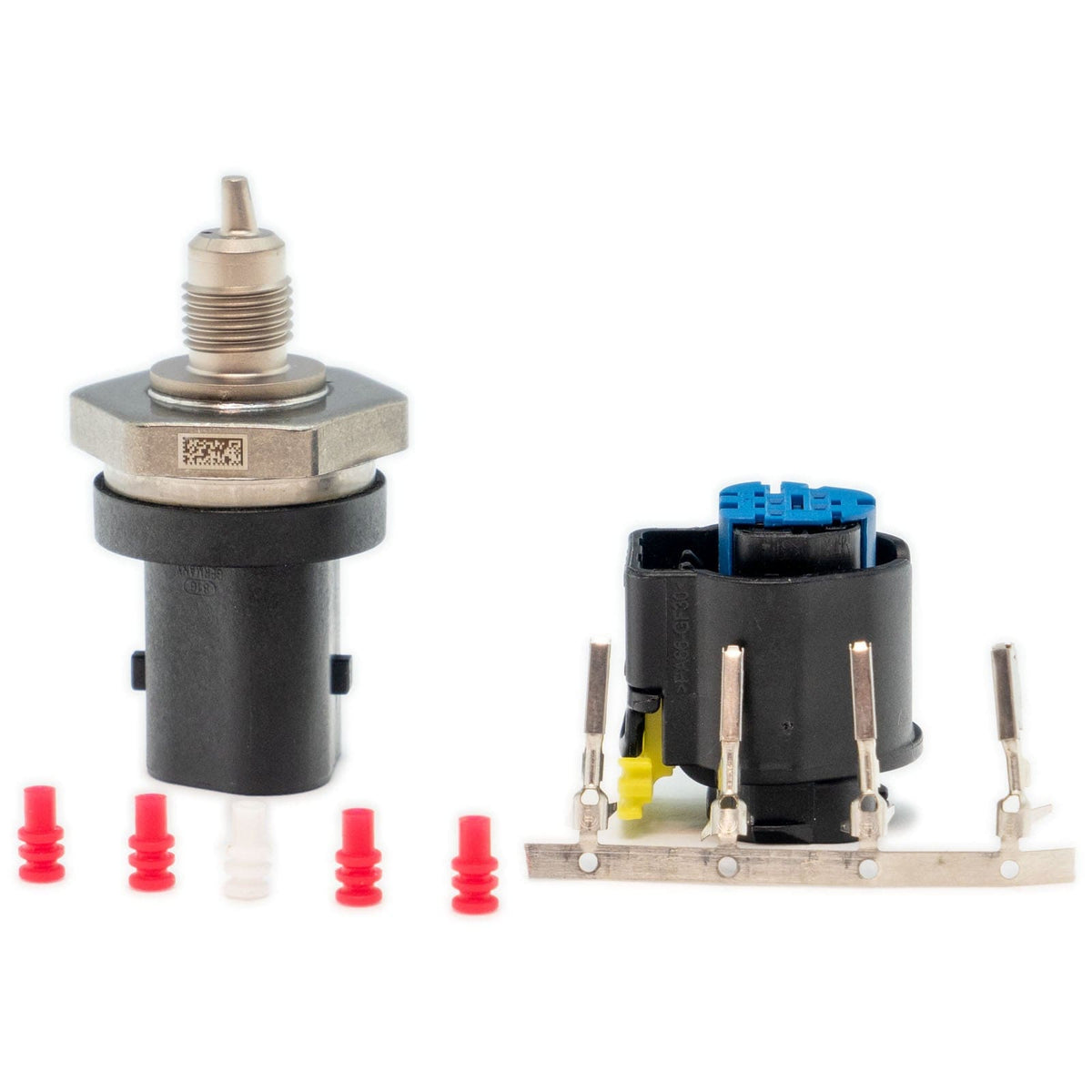

- Bosch Liquid Pressure/Temp Combined Sensor.

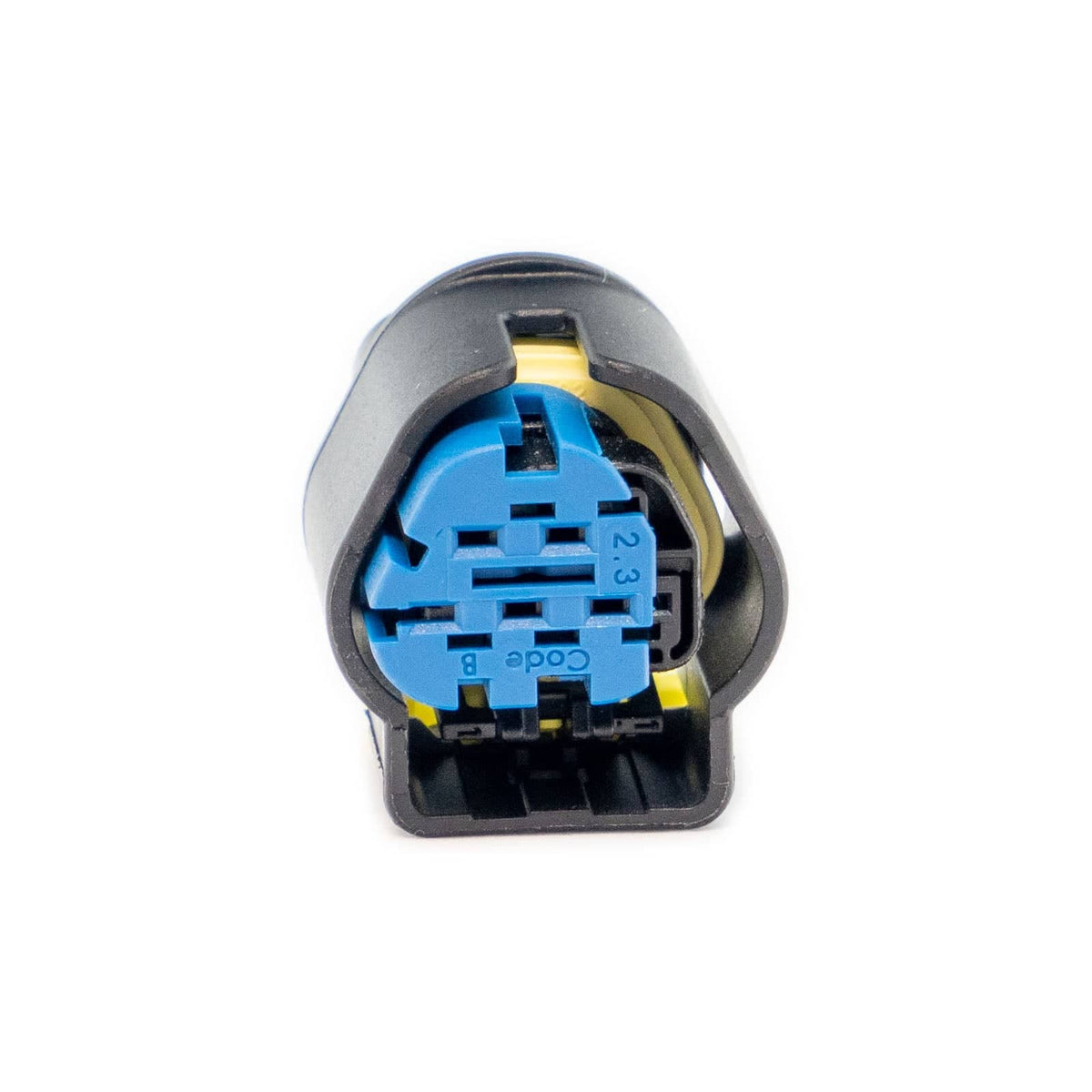

- 5-pin Bosch Trapezoid connector kit.
- Printed Accessory instructions.
Specifications
-
Highlights: The Link Combined Pressure and Temperature Sensor has the following specifications:; Genuine Bosch combined pressure and temperature sensor.; Measures pressure and temperature simultaneously.; Pressure range: 0 to 10 bar.; Temperature range: -40degC to +140degC.; M10 x 1 thread with 45deg cone seat.; Supplied with 5-pin Bosch Trapezoid connector kit.
-
Product Dimensions: 55mm(L)x30mm(W)x30mm(H); 2.17in(L)x1.18in(W)x1.18in(H)
-
Product Weight: 30 grams (1.06 ounces)
-
Electrical: Operating Voltage Range: 4.75-5.25V; Maximum Input Voltage: 5.25V
-
PCLink Calibration Name: Pressure: "Bosch 10Bar 0 261 230 340"; Temperature: "Bosch NTC 0 261 230 340"
-
Raw Calibration Specs: Pressure: 0.5V = 0kPa, 4.5V = 1000kPa; 40degC: 44,864 ohm; 35degC: 33,676 ohm; 30degC: 25,524 ohm; 25degC: 19,525 ohm; 20degC: 15,067 ohm; 15degC: 11,724 ohm; 10degC: 9,195 ohm; 5degC: 7,266 ohm; 0degC: 5,784 ohm; 5degC: 4,636 ohm; 10degC: 3,740 ohm; 15degC: 3,037 ohm; 20degC: 2,480 ohm; 25degC: 2,038 ohm; 30degC: 1,707 ohm; 35degC: 1,398 ohm; 40degC: 1,175 ohm; 45degC: 978.9 ohm; 50degC: 825 ohm; 55degC: 698.5 ohm; 60degC: 594 ohm; 65degC: 507.2 ohm; 70degC: 434.9 ohm; 80degC: 323.4 ohm; 85degC: 280.4 ohm; 90degC: 244 ohm; 95degC: 213 ohm; 100degC: 186.6 ohm; 105degC: 164 ohm; 110degC: 144.5 ohm; 115degC: 127.8 ohm; 120degC: 113.3 ohm; 125degC: 100.7 ohm; 130degC: 89.8 ohm; 135degC: 80.2 ohm; 140degC: 71.9 ohm; 150degC: 55 ohm
-
Connector: 5-pin Bosch Trapezoid
Notes
- Not suitable for water/coolant.
- Maximum permissible overpressure: 20 bar.
- Recommended installation torque: 37.5 +/-2.5 Nm.
- Install with the sensing tip pointing downwards, within +/-45deg of vertical for optimum performance.
