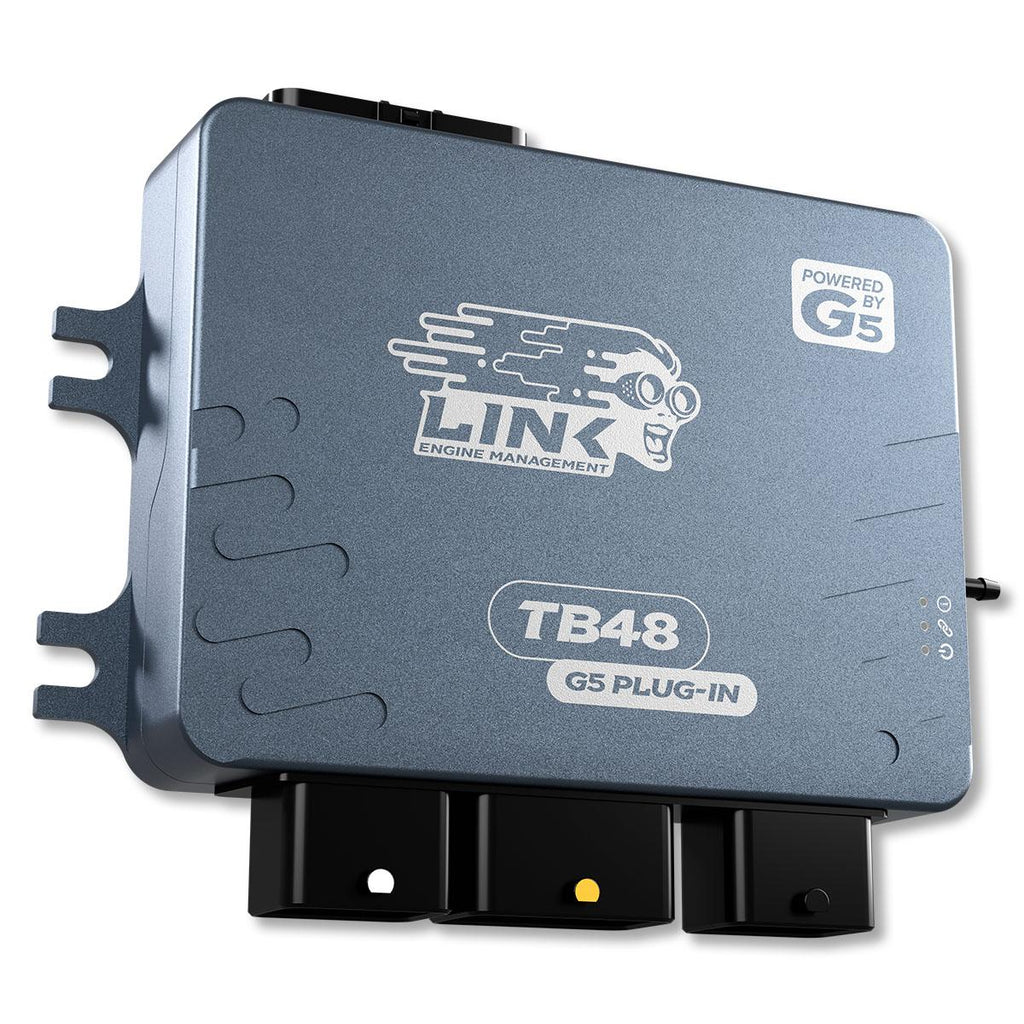

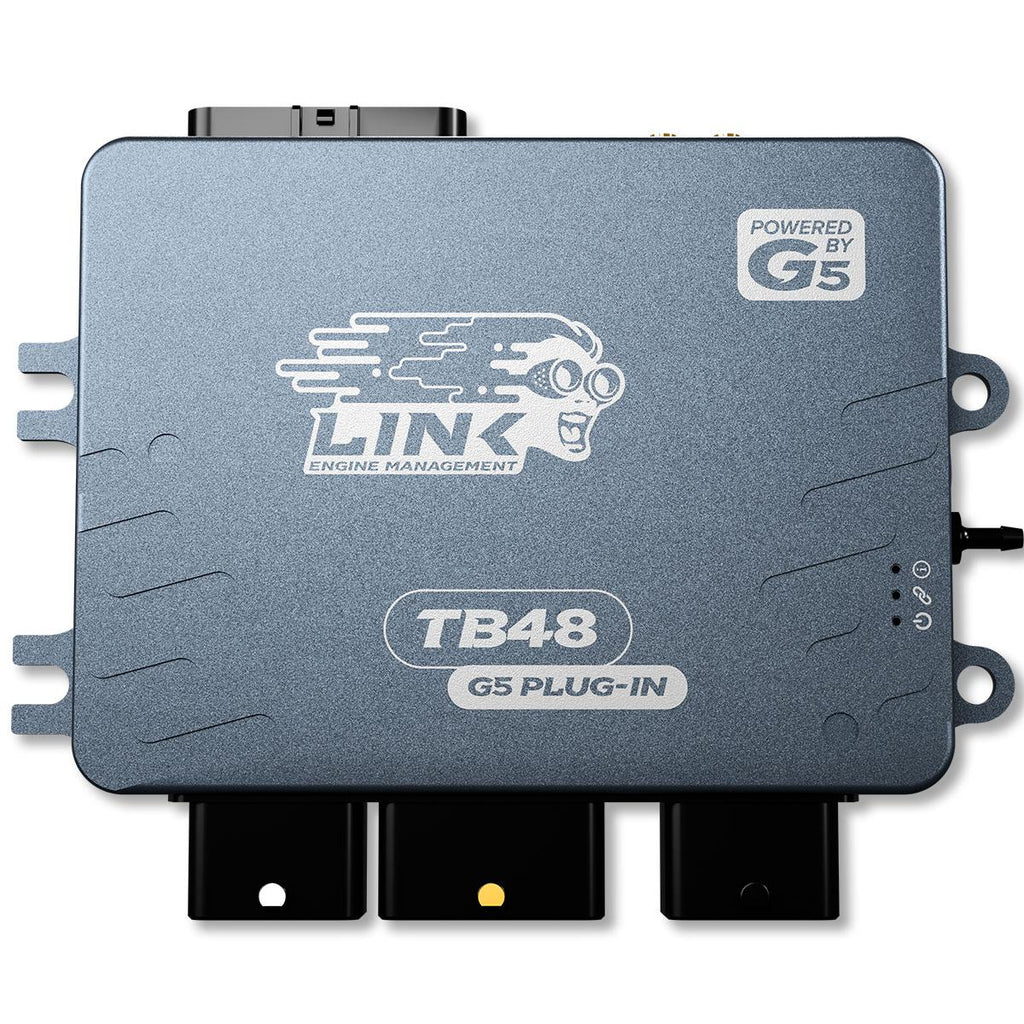

Link ECU TB48Link - G5 TB48
Nissan Patrol TB48 2017+
Brand: Link ECU
Part Number: 246-5000
Description:
Genuine Plug-In convenience with next gen G5 architecture, advanced tuning and motorsport features.
Purpose-built for the post-2016 Nissan Patrol Y61, the TB48 G5 is designed to fit directly into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms, no compromises. It retains all factory functionality, delivers seamless OEM integration and includes a startup map to get your vehicle running quickly. The result is a clean, simple, reliable installation that maintains a stock appearance.
The TB48 G5 is built on Link's most advanced, most powerful and most flexible ECU platform ever. Sharing the same G5 Voodoo processor, firmware, software and feature set found throughout the G5 range, the TB48 G5 delivers next generation engine management. Features include full control over all Y61 factory functions, including E-throttle, VIAS Control, Cruise Control and Air conditioning, plus, Onboard Digital Wideband Lambda Control, Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda and compatibility with aftermarket displays. It also features a built-in MAP sensor.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis.
Drawing from Link's championship-winning pedigree, the TB48 G5 has advanced tuning and motorsport features including Nitrous Control, Launch Control, Anti-lag, Cruise Control, Traction Control, Race Timer and Power Management, Gear Shift Control and Paddle Shift Control.
A G5 Plug-in ECU is the ideal solution when available for your vehicle and the wiring remains in good condition, providing modern engine management without the complexity of a wire-in installation.
Features
The TB48 G5's multi-board architecture delivers next generation features including:
ECU Features
- Global Positioning System (GPS)
- 8 Custom Math Blocks with 30 characters
- Full OEM CAN Bus integration
- Full VIAS control
- E-throttle Control
- Onboard Digital Wideband Lambda Control
- Flex Fuel
- Trigger Oscilloscope
- 3 Axis Accelerometer
- 1k or 10k Ω Selectable Temp Input Pullups
- Flexible engine protection limiters
- CAN Keypad Control
- Open Loop Boost Control
- Closed Loop Boost Control
- Dual Closed Loop Lambda
- Direct Automatic Transmission Control
- Compatible with all leading after-market dashes via CAN or serial stream
- 1 Gigabyte of Internal Data Logging
Motorsport Features
- Nitrous Control
- Launch Control
- Anti-lag
- Cruise Control
- Traction Control
- Race Timer and Power Management
- Gear Shift Control
- Paddle Shift Control
Suits
- Nissan Patrol Y1 with TB48 engine from post 2016.
What's in the Box
- Nissan TB48 G5 Plug-in ECU
- USB-C Connection Cable
- Wi-Fi Antenna
- 4m GPS Antenna (Magnetic or Adhesive Mount)
- USB-C and SMA Dust Covers
- Link stickers
- Plugin Manual Card
- Product Registration Card
Specifications
-
Inputs and Outputs: For the full list of Inputs and Outputs, please see the TB48 G5 Installation Manual
-

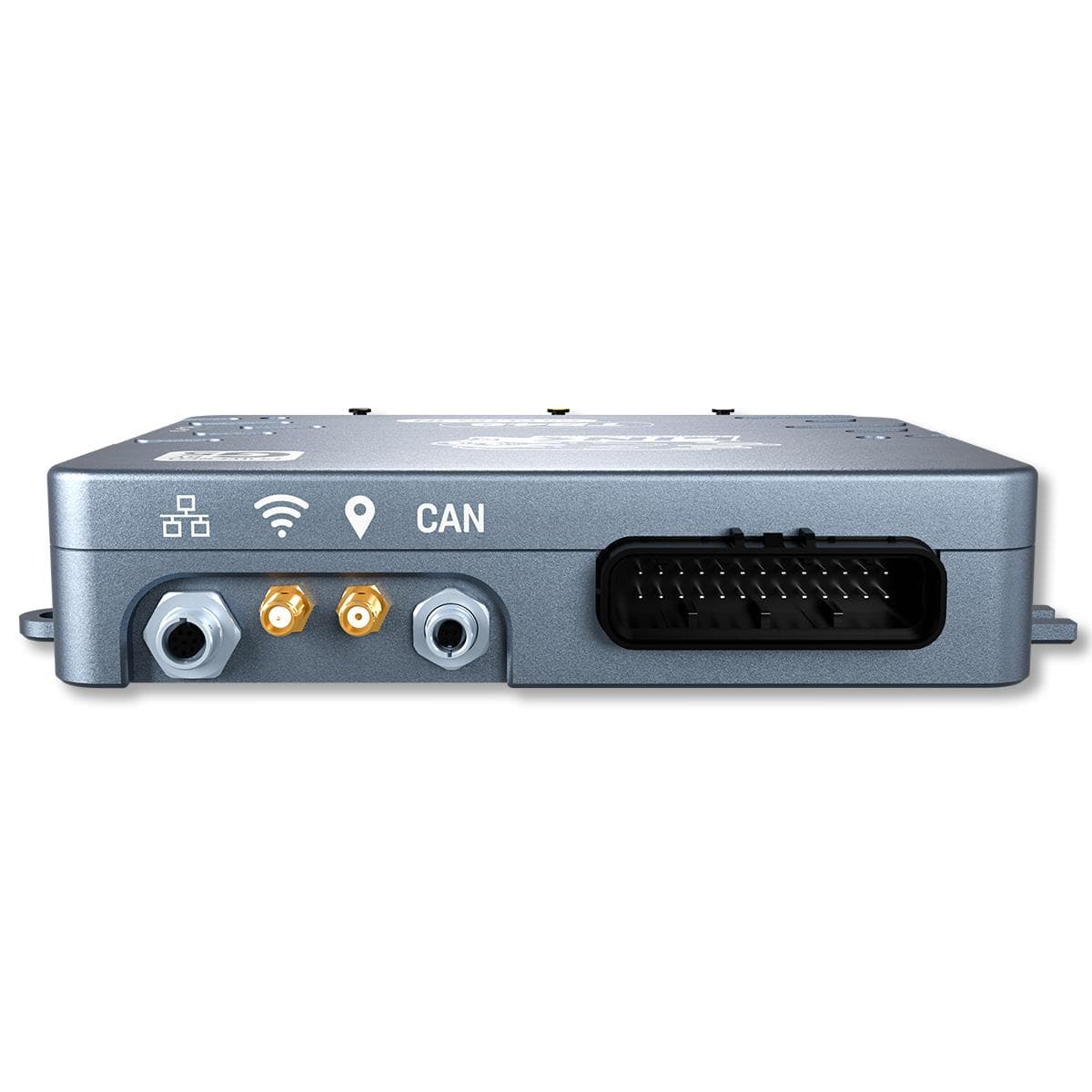

Communications: 2 CAN Bus Channels; 1 Wi-Fi; USB-C Tuning Connection; 1 Ethernet; 1 Power Over USB
-
Product Dimensions: 128mm(L) x 169mm(W) x 37.2mm(H); 5.04in(L) x 6.65in(W) x 1.46in(H)
-
Electrical: Operating Voltage Range: 6-30V; Maximum Input Voltage: 30V; Maximum Continuous Current Draw: 12A
-
Expansion Plug: Superseal 2 Row 26 Position; Part number 1473712-1
Notes
- Please check your connector matches the header in the listed photo before purchasing.
- Designed for manual and automatic transmission vehicles.
- Includes an onboard MAP sensor.
- Most factory features are supported.
- This ECU has built-in E-Throttle (Drive-by-Wire).
