Link ECU G4X XtremeX Wire-In ECU Package - up to 8 Cylinders
Brand: Link ECU
Part Number: 109-4000
Description:
Our Link G4X XtremeX wire-in package bundles the ECU with the looms and sensors you need to get started, plus an intake air temp sensor and Aeroflow weld-on boss included free.

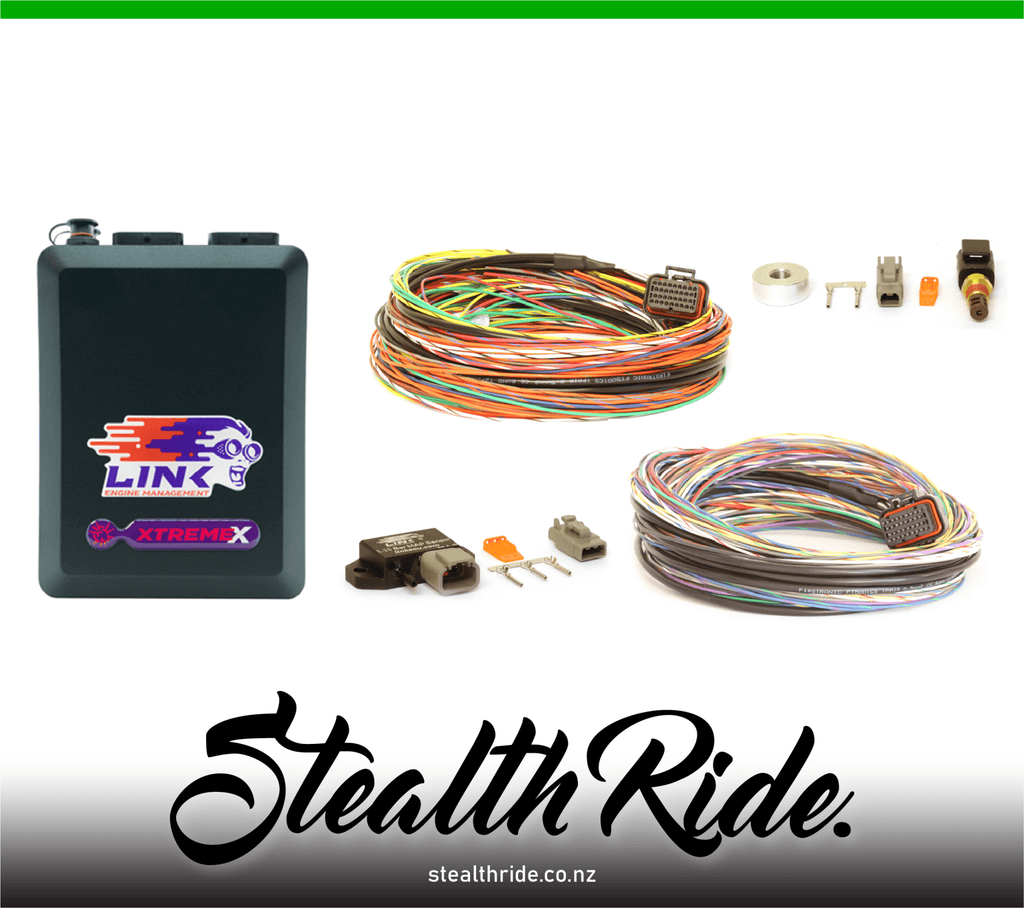

What's in the Package
- 1x G4X XtremeX Wire-In ECU - up to 8 Cylinders (109-4000)
- 1x A Loom Medium - 2.5m 2LA (101-0005)
- 1x B Loom Medium - 2.5m 2LB (101-0006)
- 1x 3 Bar MAP Sensor MAP3 (101-0164)
- 1x Air Temp Sensor IAT1-8 (101-0045) - FREE
- 1x Aeroflow Weld-On Aluminium IAT Boss - FREE
A premium G4X ECU for up to 8 cylinders, the XtremeX delivers extensive I/O, E-Throttle control and the full suite of G4X motorsport features for demanding performance and race applications.
The XtremeX includes all the core G4X features expected from Link's championship-winning platform including Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a Trigger Oscilloscope, compatibility with aftermarket displays and 512MB of onboard data logging.
Stepping up from Link's entry-level and mid-range G4X ECUs unlocks premium G4X features designed for more complex street, race and motorsport applications. The XtremeX adds fully programmable E-Throttle control, Direct Automatic Transmission Control, dual CAN modules, a 3 Axis Accelerometer and expanded I/O, while also providing access to the full suite of G4X motorsport features including Launch Control, Anti-Lag, Nitrous Control, Paddle Shift Control, Gear Shift Control, Traction Control and Cruise Control.
The XtremeX is the ideal solution for high-performance street, and motorsport builds that demand flexibility, E-throttle control, extensive I/O and the advanced features of a premium G4X ECU.
Features
The XtremeX is a premium G4X ECU offering all G4X tuning and motorsport features including:
ECU Features
- E-throttle Control
- 8 Custom Math Blocks with 30 characters
- Flex Fuel
- Trigger Oscilloscope
- 3 Axis Accelerometer
- Selectable Temp Input Pullups
- Flexible engine protection limiters
- CAN Keypad Control
- VVT Control
- Open Loop Boost Control
- Closed Loop Boost Control
- Dual Closed Loop Lambda
- Direct Automatic Transmission Control
- Compatible with all leading after-market dashes via CAN or serial stream
- 512 Megabytes of Internal Data Logging
Motorsport Features
- Nitrous Control
- Launch Control
- Anti-lag
- Cruise Control
- Traction Control
- Race Timer and Power Management
- Gear Shift Control
- Paddle Shift Control
Suits
- The XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark.
In the ECU Box
- XtremeX G4X ECU
- Quick Start Guide
- Mounting Bracket
- USB Tuning Cable
- LinkECU Stickers
Specifications
-
Outputs: 8 Injection Drives; 8 Ignition Drives; 10 Auxiliary Outputs; +5V Sensor power supply; +8V Sensor power supply; Unused Inj/Ign can be used as a Auxiliary Outputs
-
Inputs: 10* Digital Inputs; 4 Temperature Inputs; 11 Analogue Inputs; 2 Trigger Inputs; 2 Knock Inputs; Unused Temperature and Analogue Inputs can be used as Digital Inputs; *2 Digital Inputs required when using 2nd CAN Bus
-
Communications: 2 CAN Bus Channel; LTW 6Pin USB Tuning Connection
-
Data Logging: 512MB Onboard Logging Memory; 100kHz Maximum Total Logging Rate; 250 Logging Channels
-
Product Dimensions: 185mm(L) x 130mm(W) x 40mm(H); 7.28in(L) x 5.12in(W) x 1.57in(H)
-
Product Weight: 680 grams (23.99 ounces)
-
Material: Die-cast aluminum enclosure
-
Electrical: Operating Voltage Range: 6.5-24V; Maximum Input Voltage: 36V; Maximum Continuous Current Draw: 5.5A; Operating Current: 200mA
-
Misc.: Manufacturing Standard ISO 13485
-
Connector: Superseal 4 Row 34 Position x2; Part number 4-1437290-0; Part number 4-1437290-1
