Link ECU Knock Sensor KNS
Knock Sensor with matching connector
Brand: Link ECU
Part Number: 101-0053
Description:

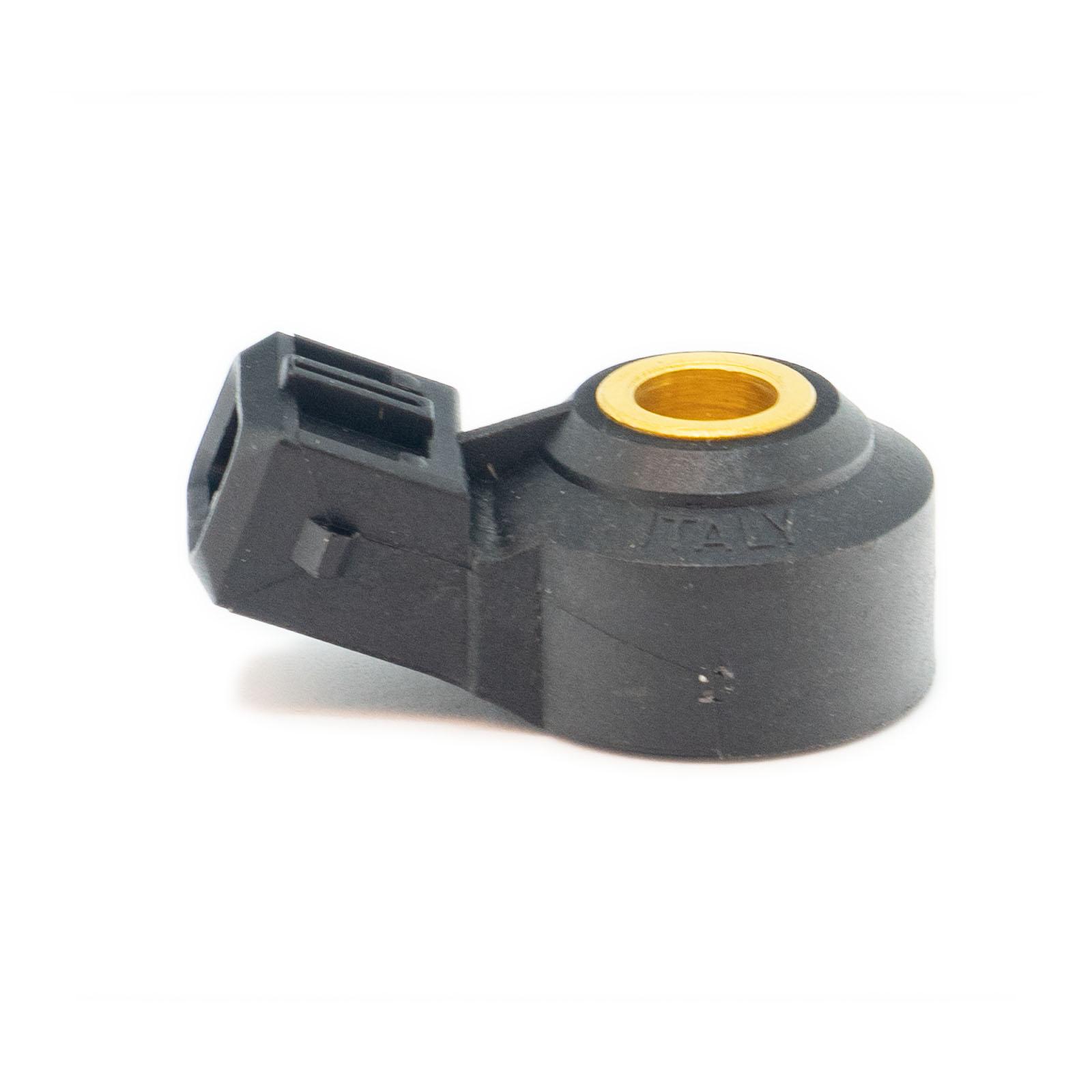

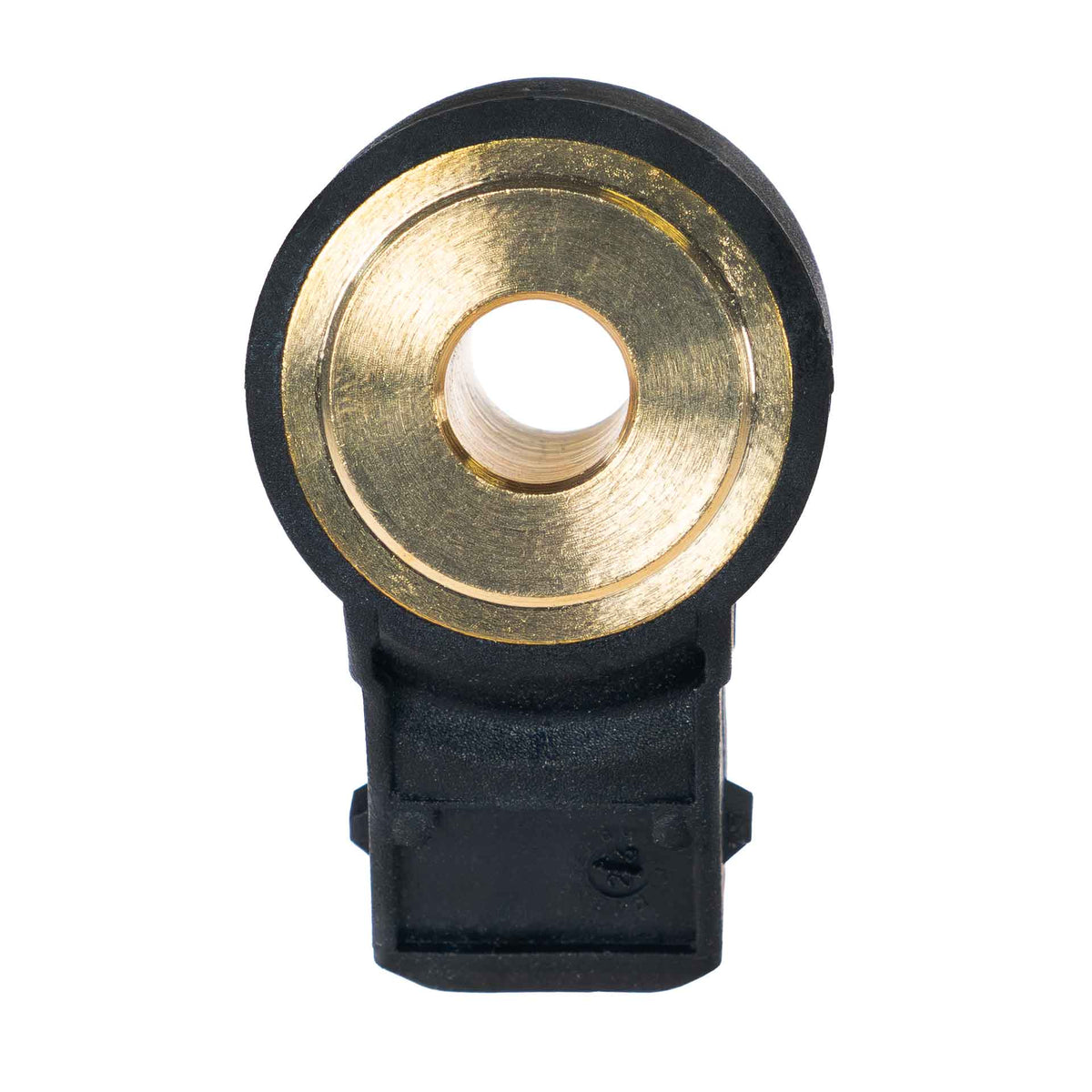

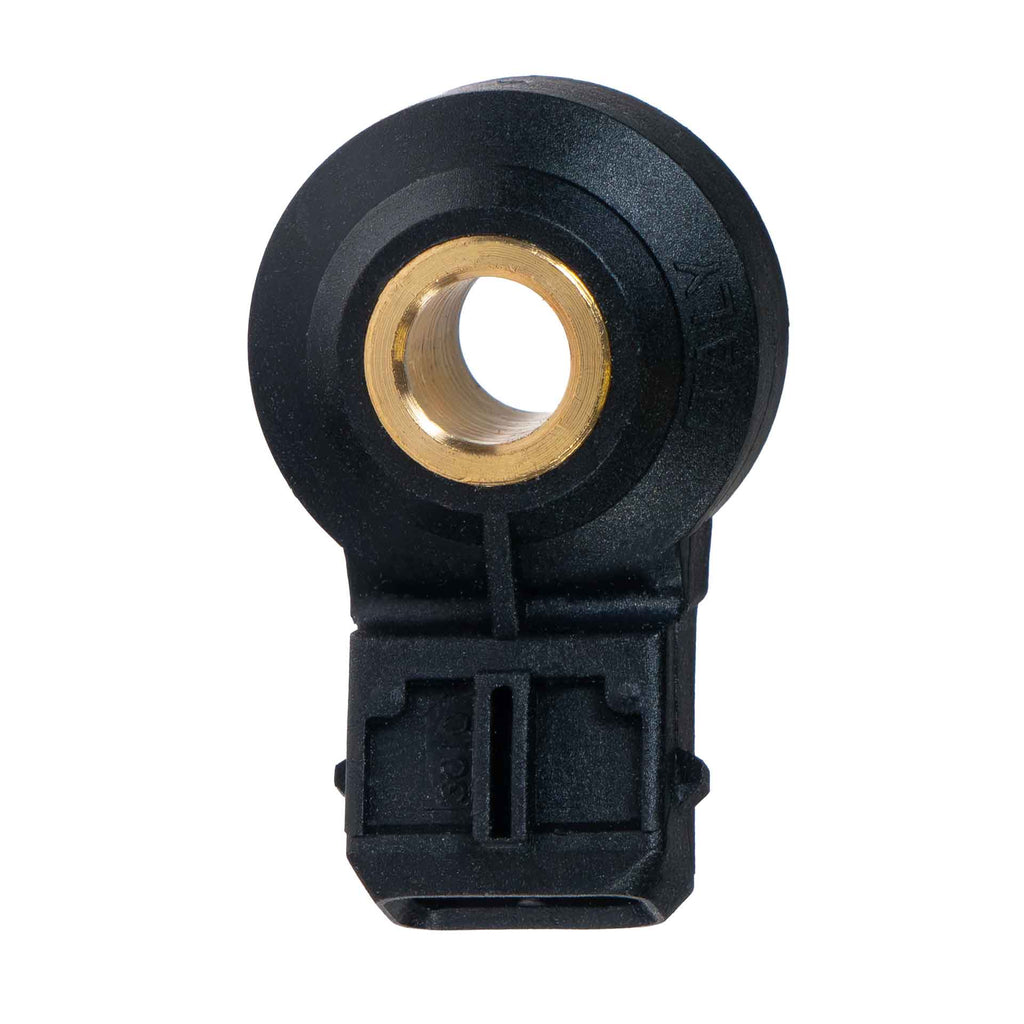

The Link Knock Sensor is a non-resonant piezoelectric knock sensor designed to detect engine knock (detonation) by monitoring engine block vibrations. When used with a compatible Link ECU, it transmits these vibrations as an electrical signal, allowing the ECU to detect knock and adjust the engine calibration to help protect the engine while optimising performance.
Suits
- Link ECUs with knock detection capability.
- Other aftermarket ECUs with compatible knock sensor inputs.

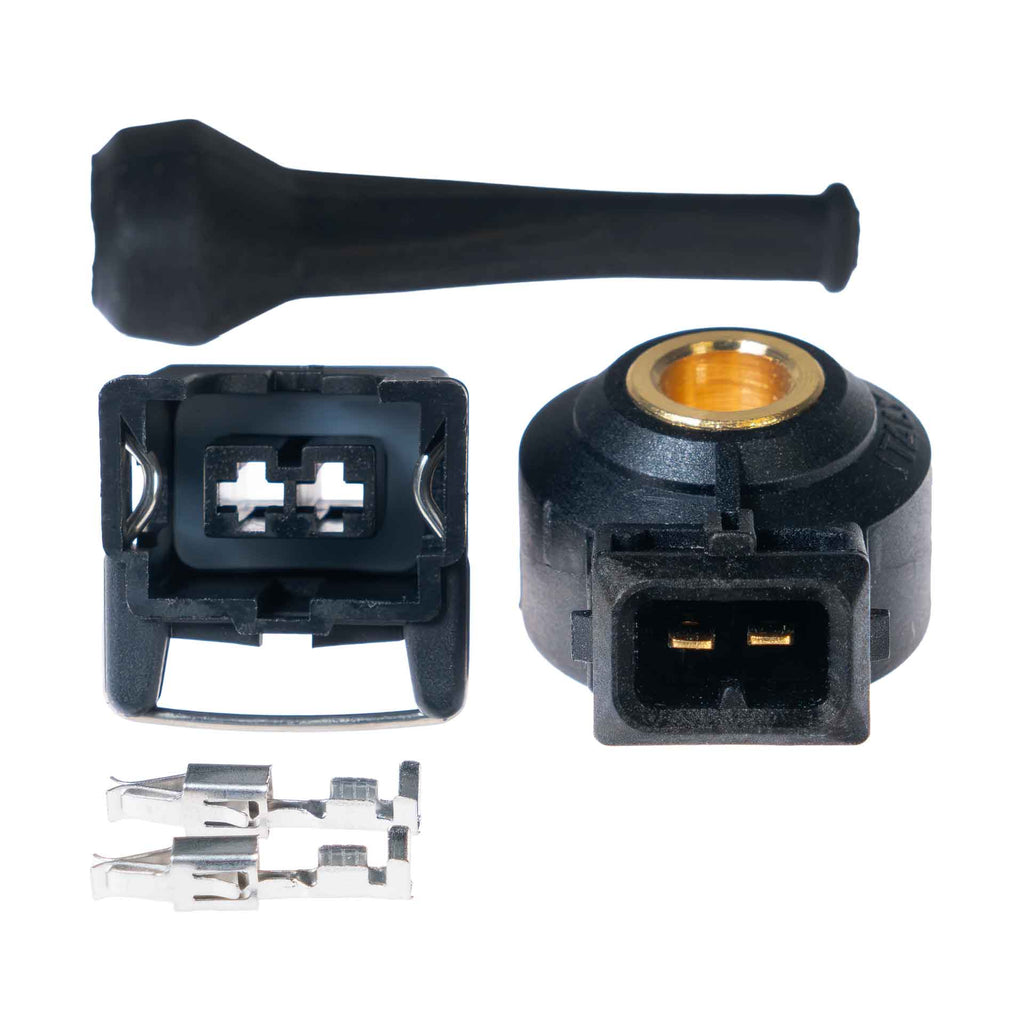

What's in the Box
- Knock Sensor (Donut Type)

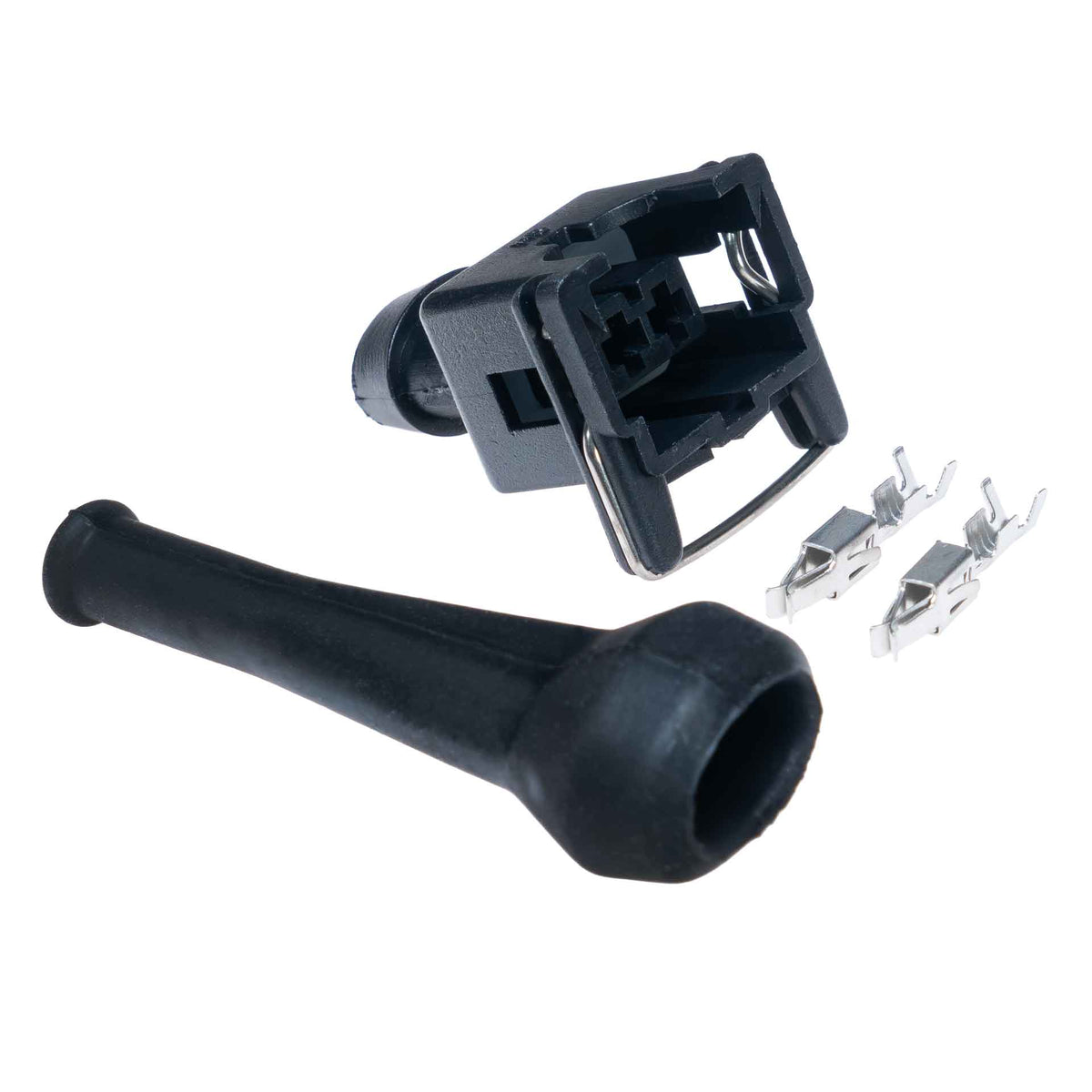

- Bosch Style Plug, Pin and Boot
Specifications
-
Highlights: The Link Knock Sensor has the following specifications:; Genuine Facet 9.3010 knock sensor.; Non-resonant piezoelectric sensor.; Flat frequency response.; Sensitivity: 25 mV/g.; Operating temperature: -40degC to +150degC.; IP68 rated.; 8 mm mounting hole.; Includes connector housing and terminals.; Knock detection provides advanced engine protection.
-
Product Dimensions: 40mm(L)x20mm(W)x30mm(H); 1.57in(L)x0.79in(W)x1.18in(H)
-
Product Weight: 40 grams (1.41 ounces)
-
Connector: Bosch Style Plug, pin and Boot (PN 101-0051)
Notes
- Install directly onto a suitable flat surface on the engine block. Recommended tightening torque: 20 +/- 5 Nm. Correct mounting torque is critical for accurate knock detection. One or more sensors may be required depending on the engine and application.
