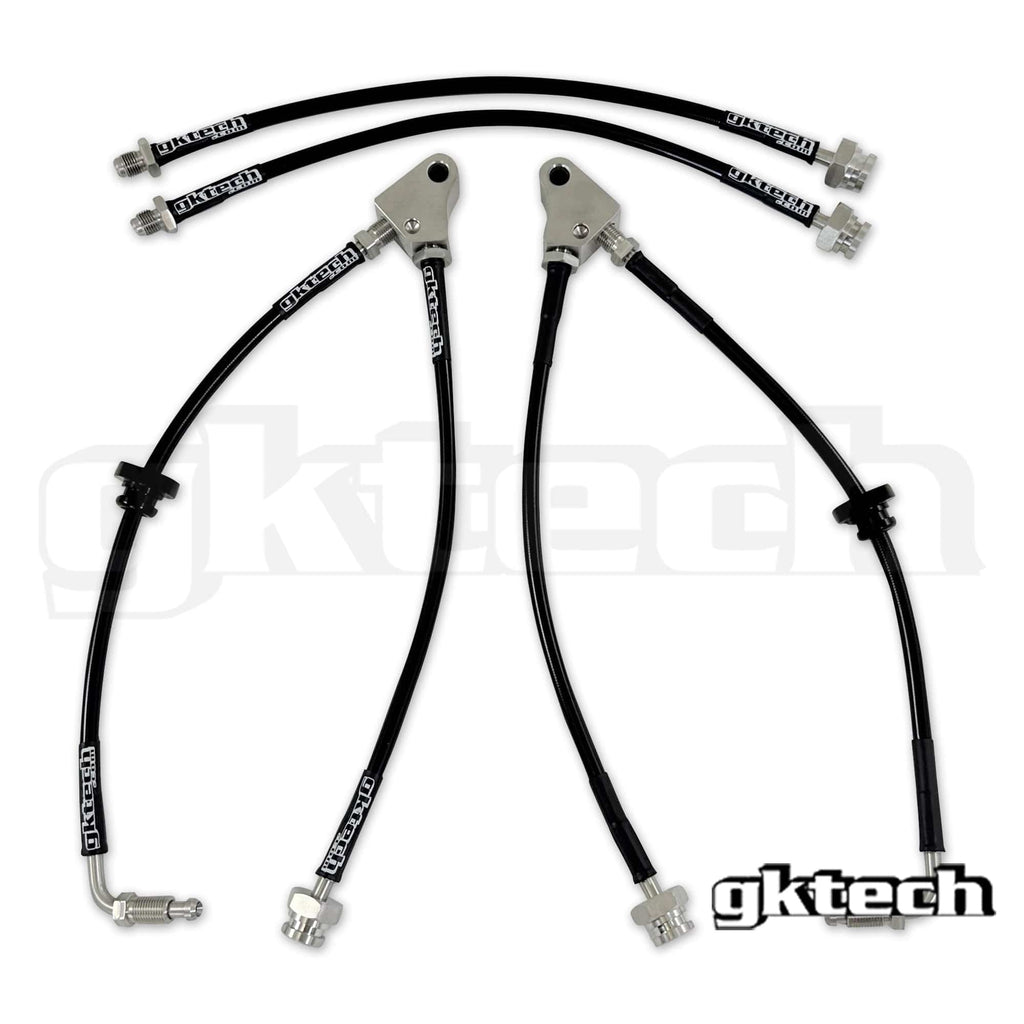

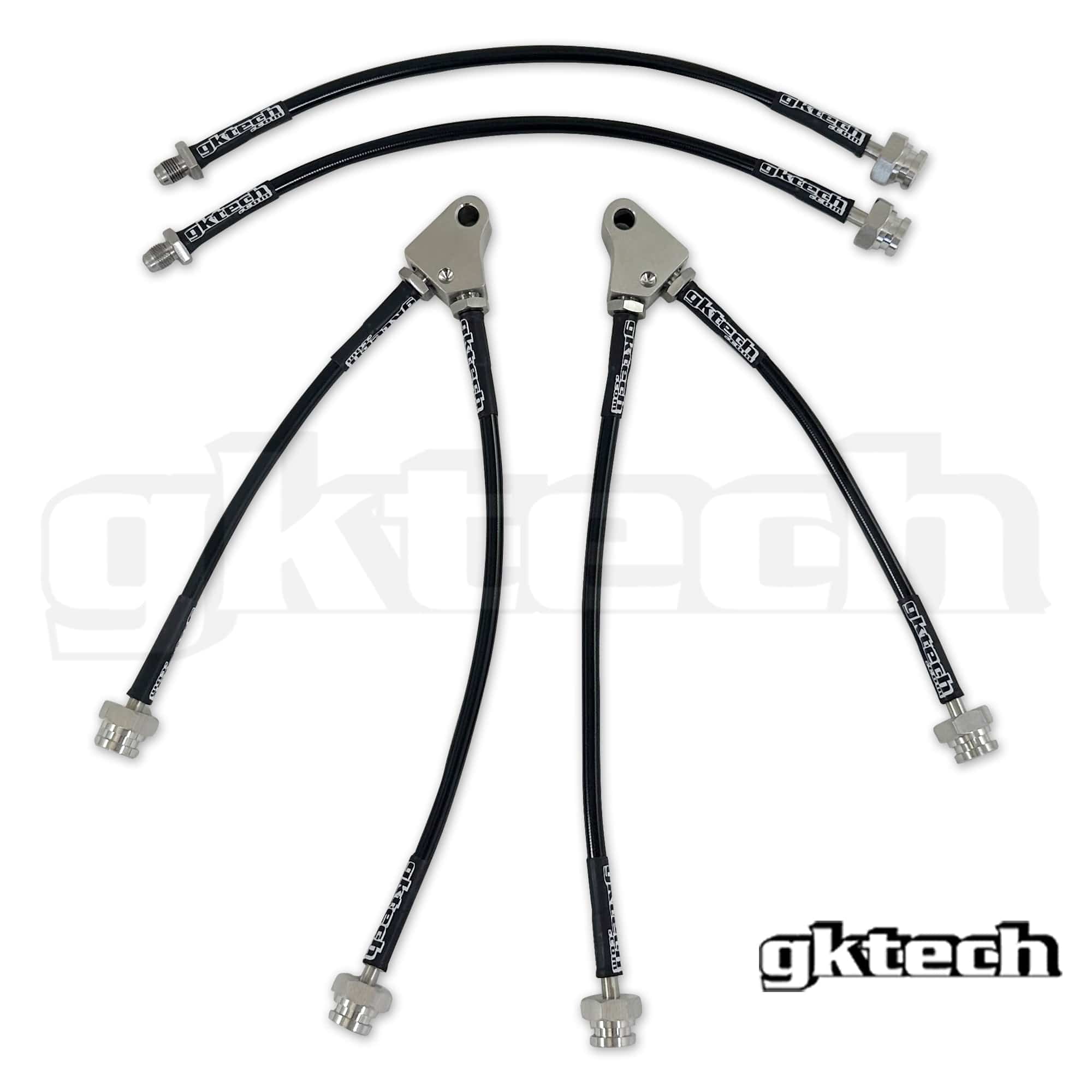

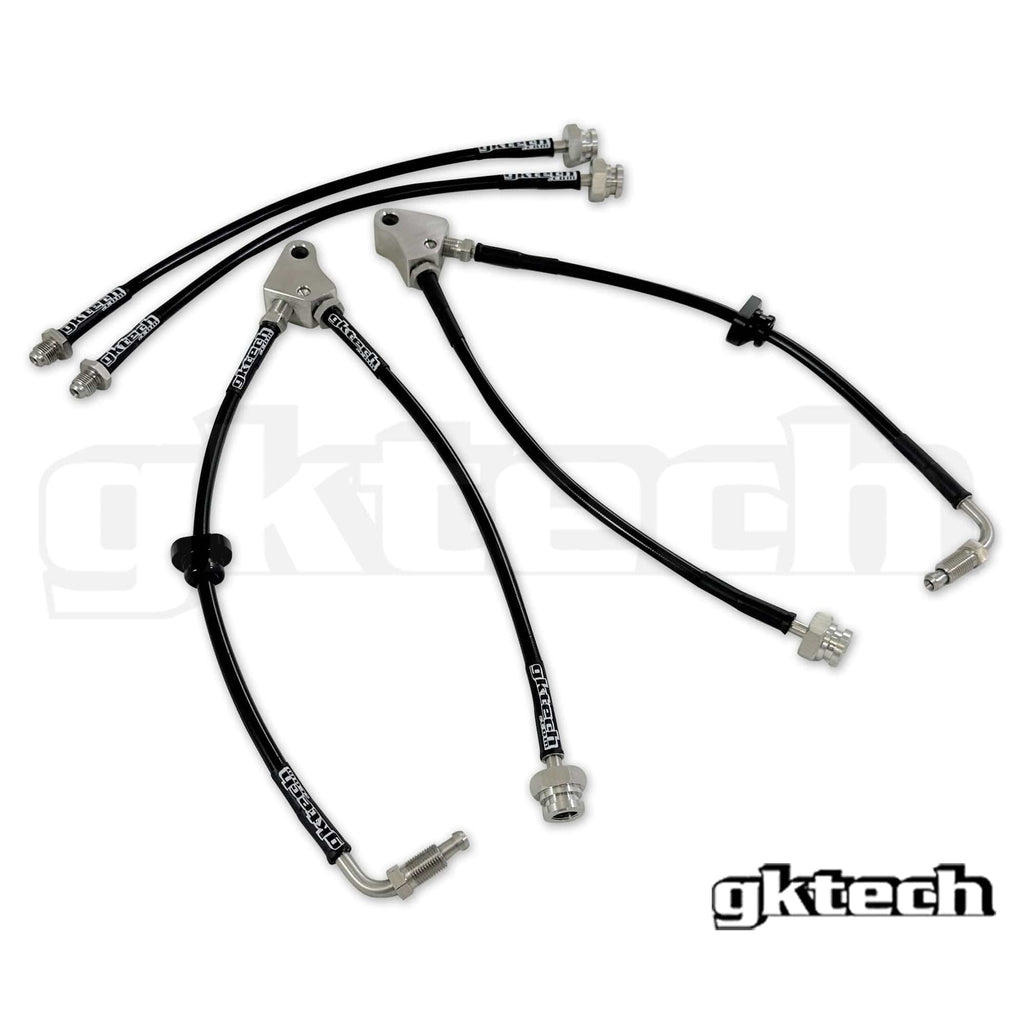

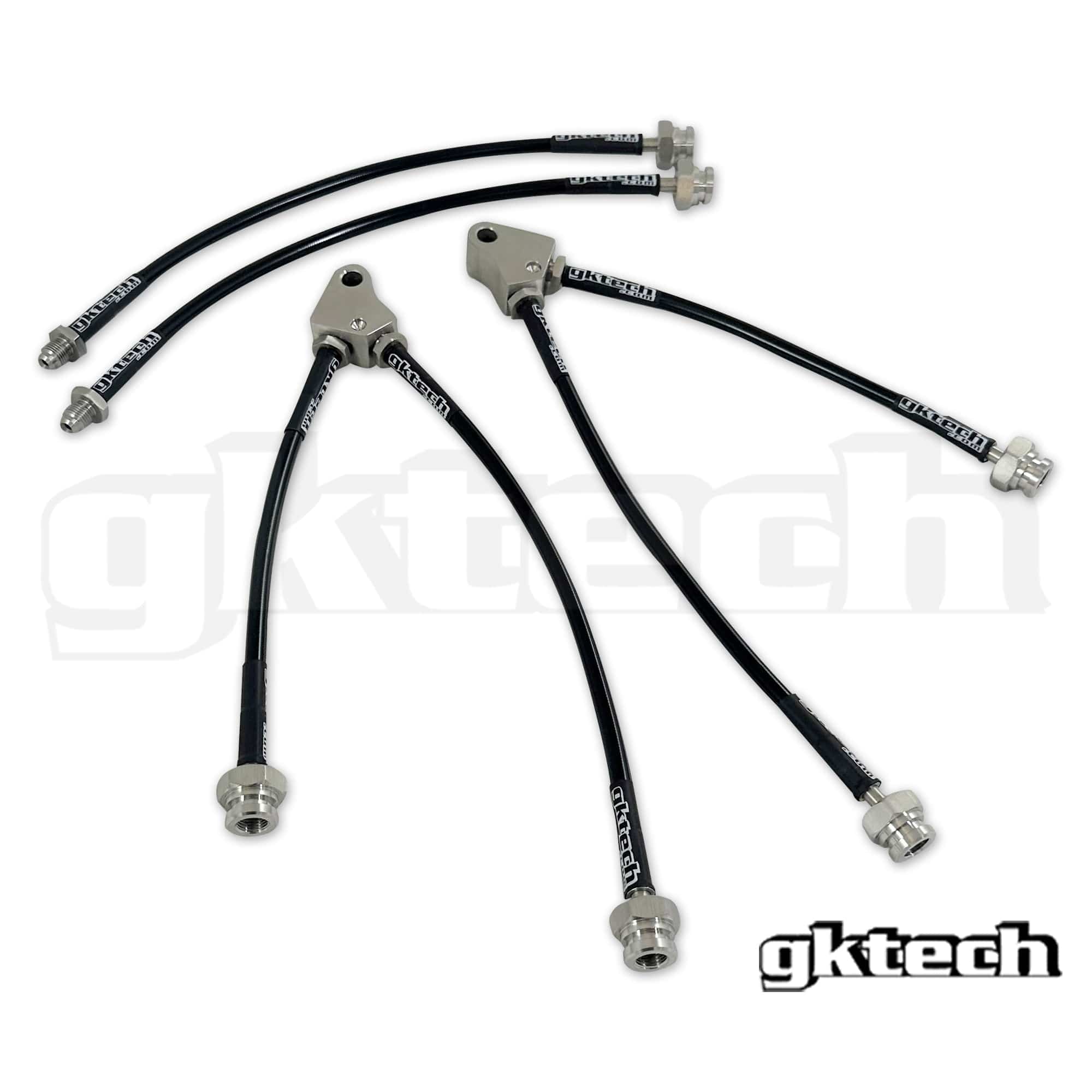

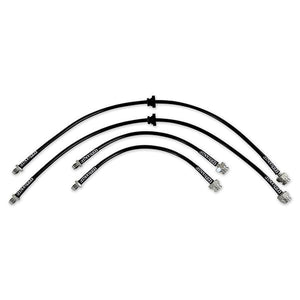

The GKTECH braided brake lines are a direct replacement of the factory lines and are stronger (read: more reliable) than the factory rubber lines which are prone to breaking but they also eliminate the spongy feel of the standard brake lines. The front lines are also longer to compensate for big brake setups or cars with more steering lock (which you would see stretching with the factory line)

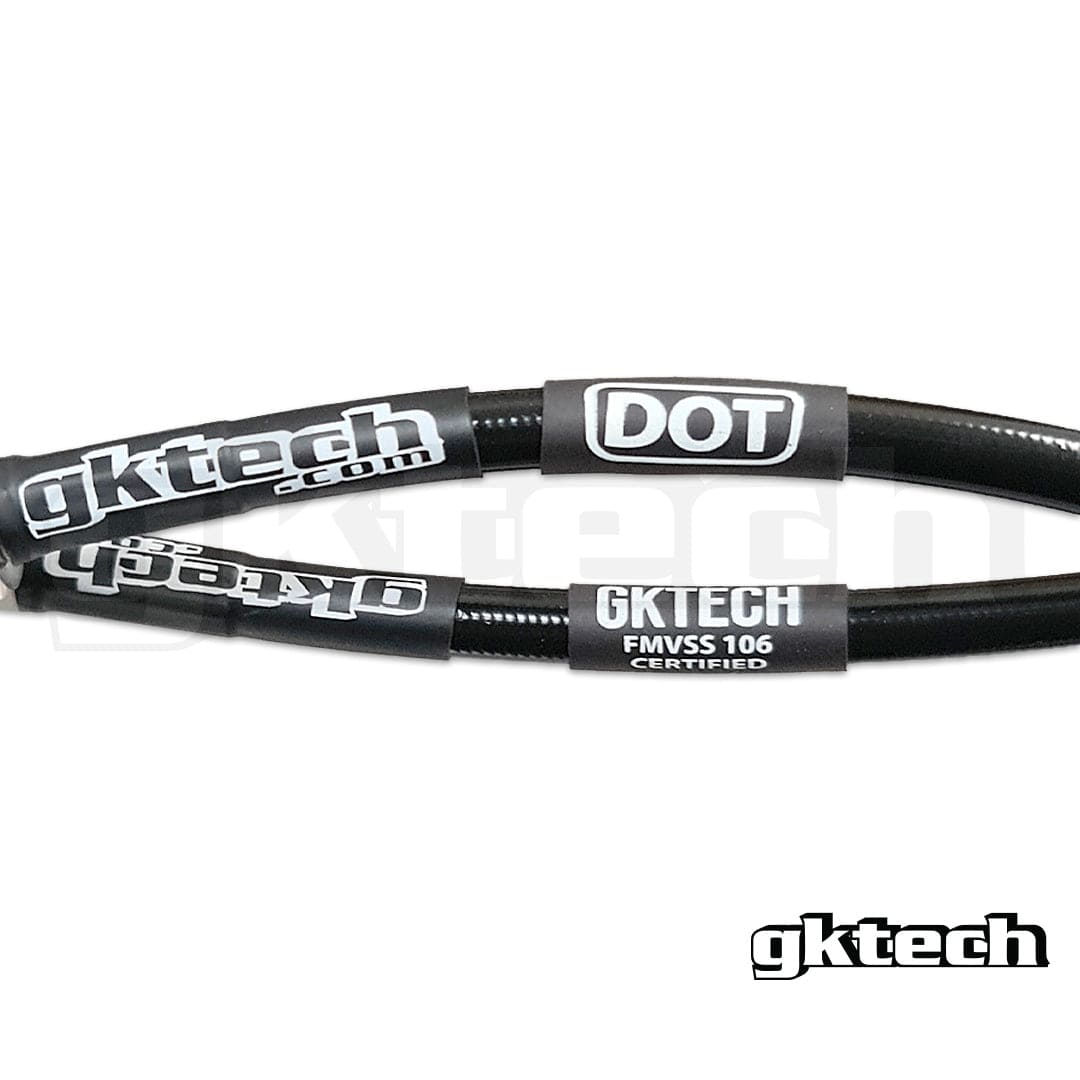

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test

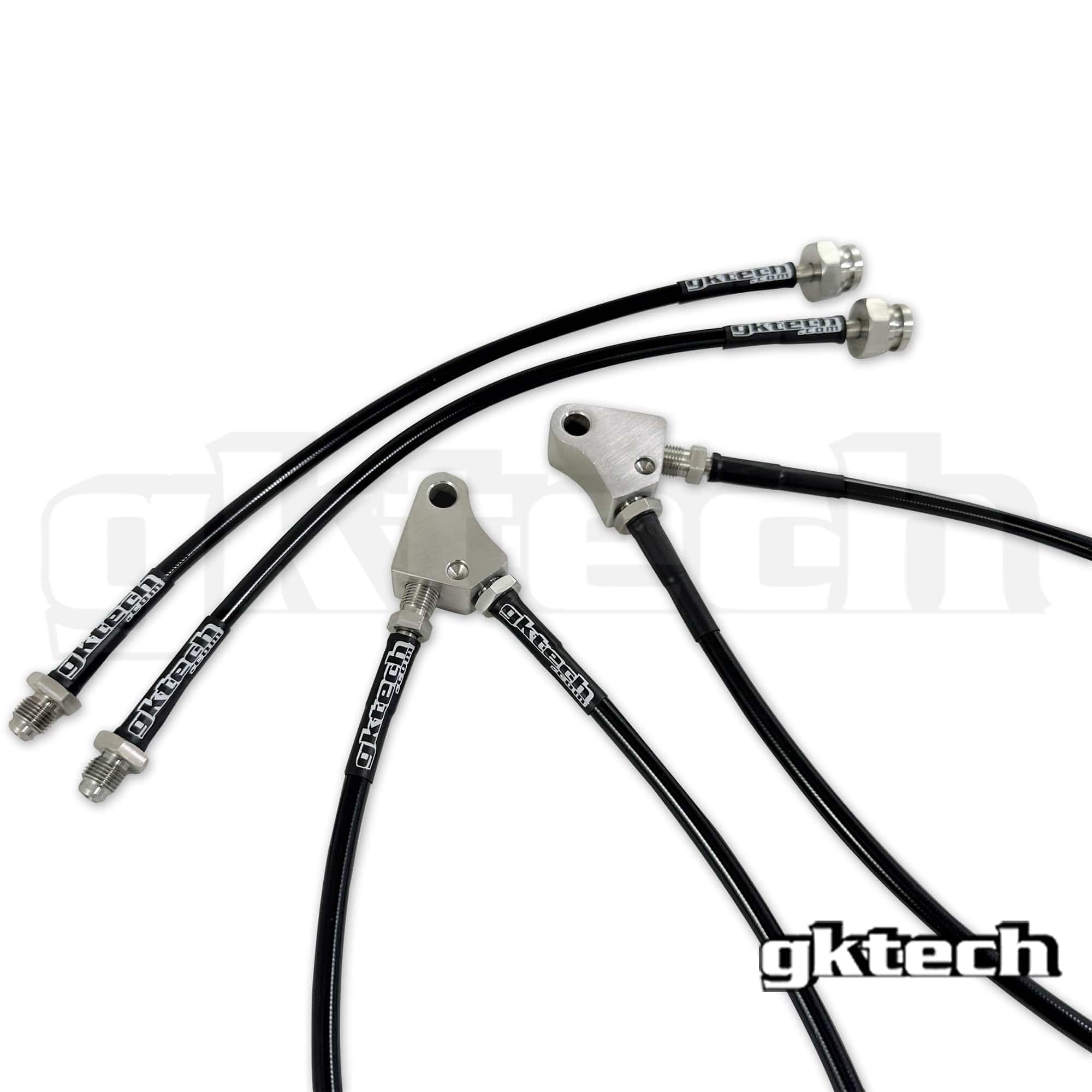

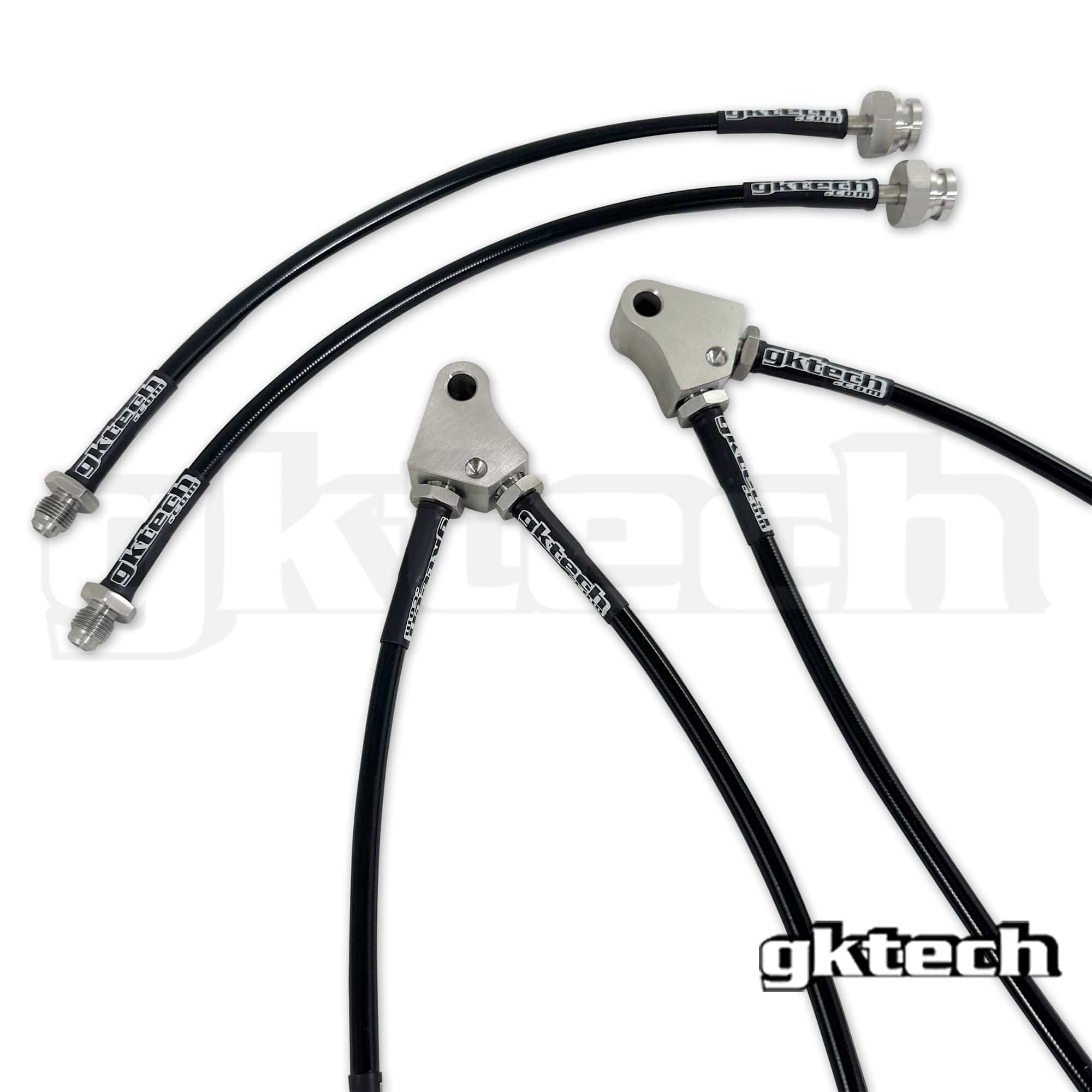

We have included a custom machined brake line block which sits in the OEM location which eliminates one long line which has tendencies to get caught on the tyre or other suspension components. This piece keeps the brake lines short and concise.

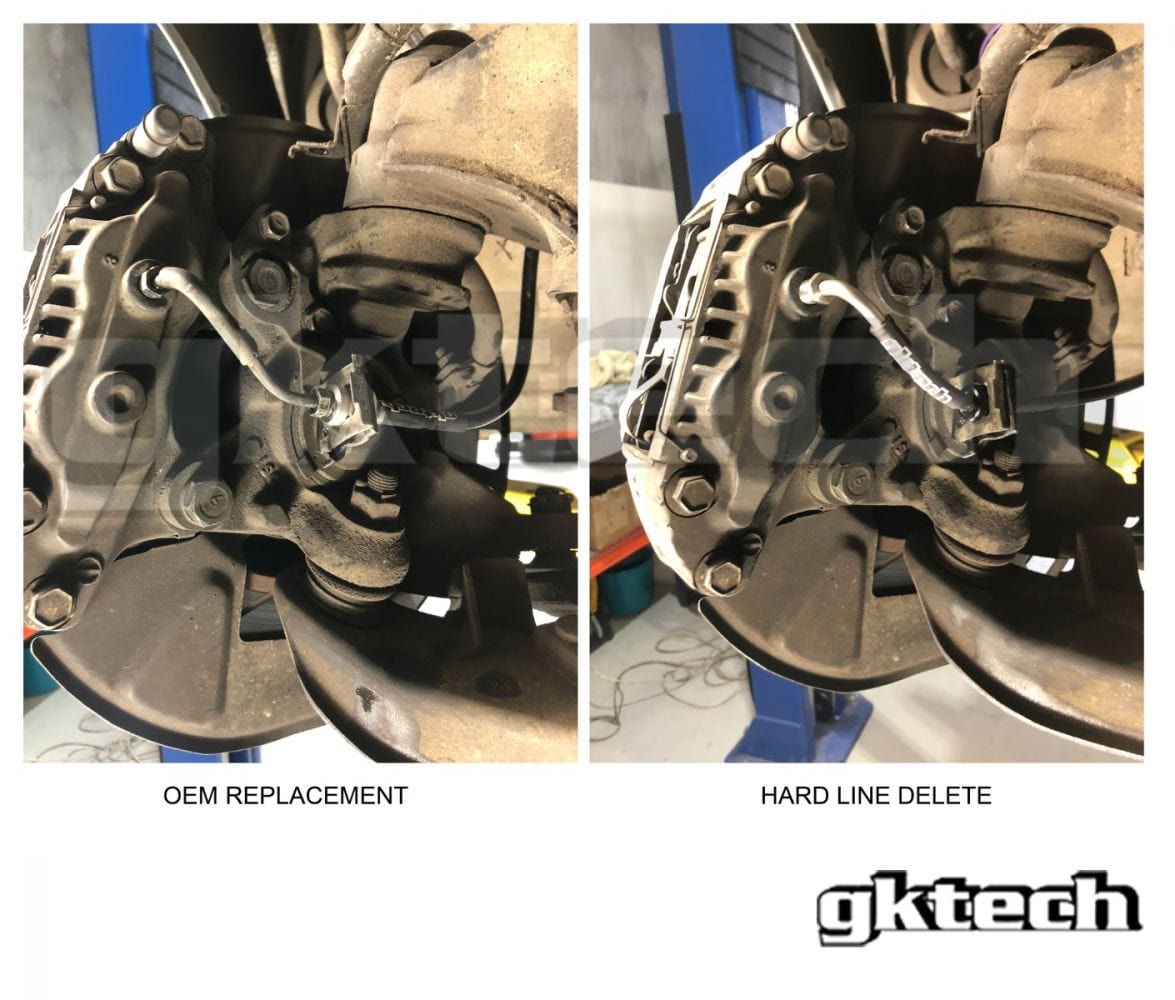

We have also included the option of keeping your OEM hard lines, or deleting them completely from both the front and rear brakes.
