GKTech Replacement bearing (PCMR12TS)
Suits Nissan R32, Z32
Brand: GKTech
Part Number: PCMR12TS
Description:

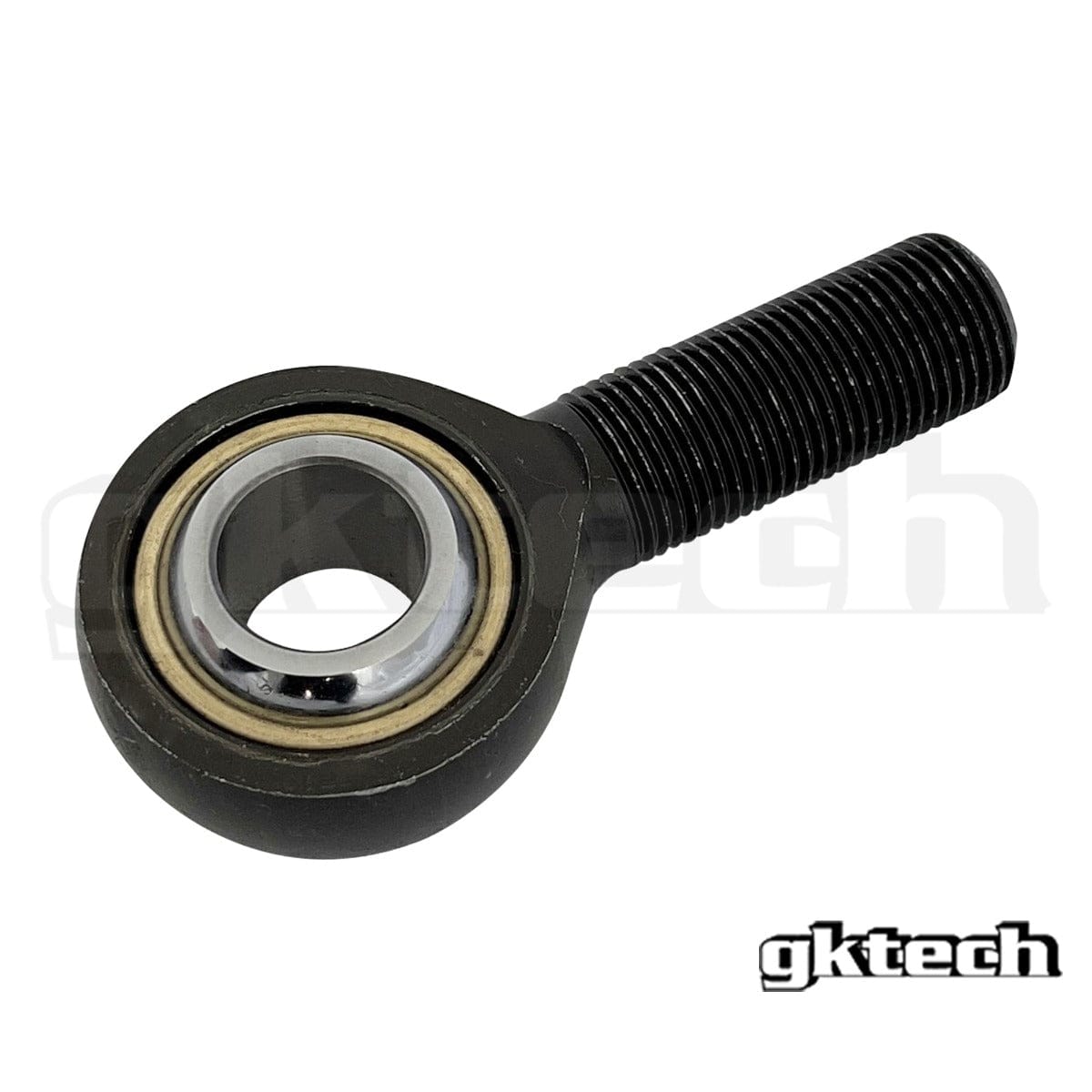

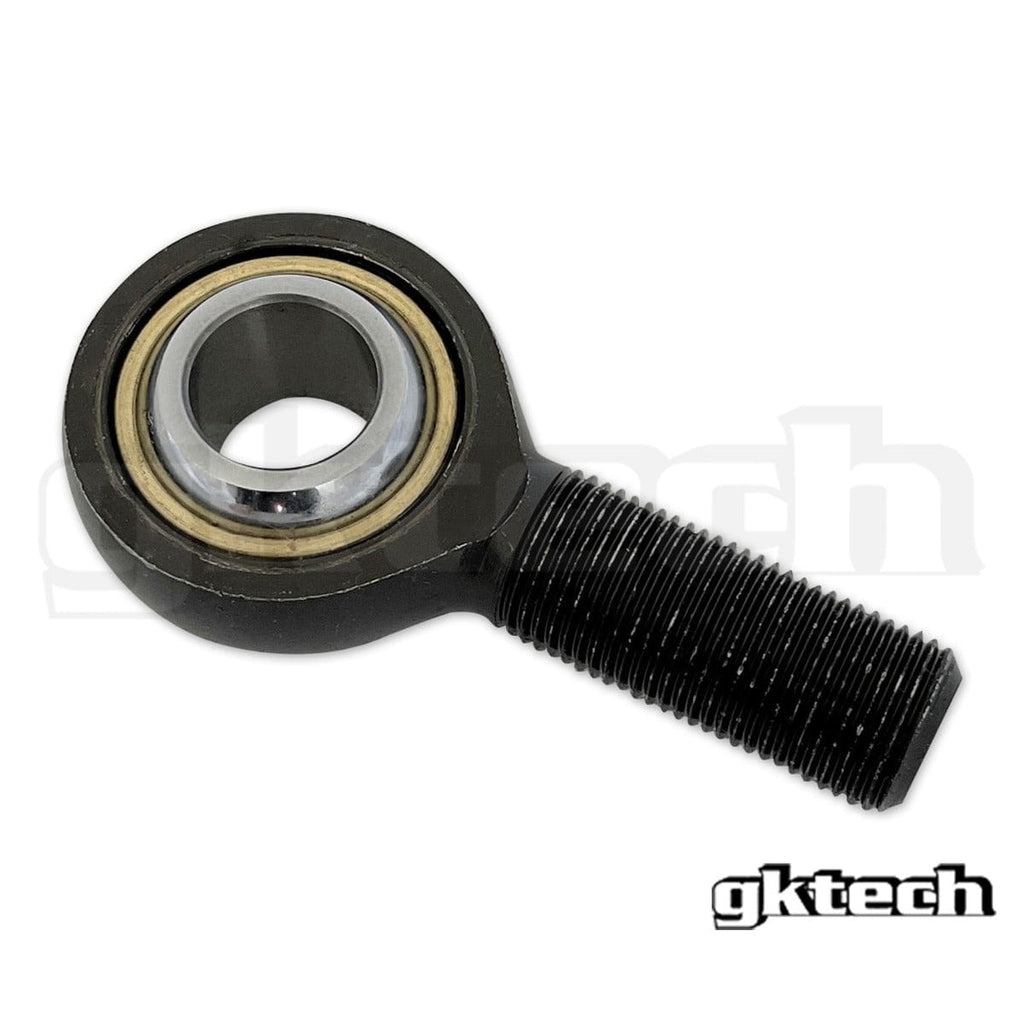

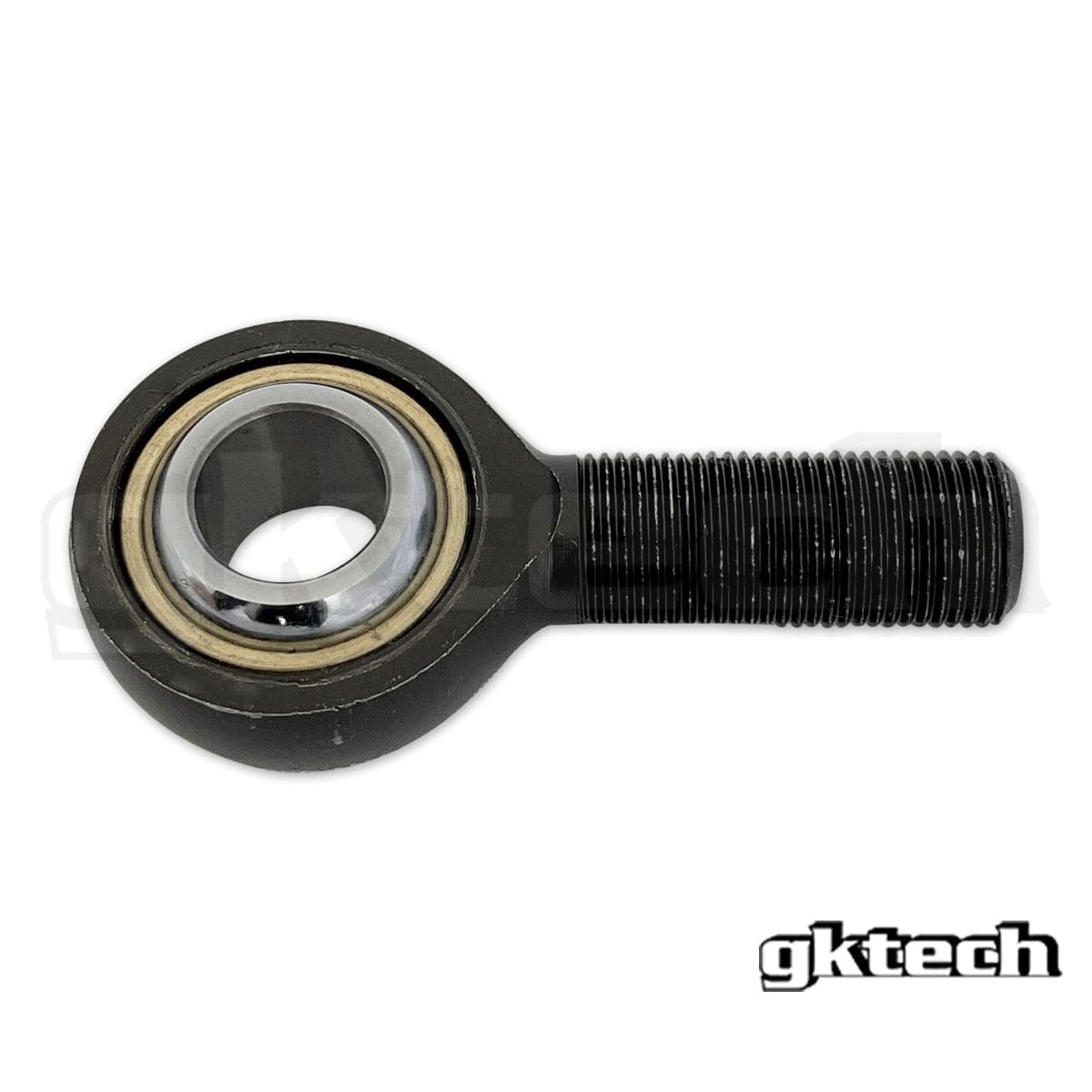

GKTech Replacement bearing, part number PCMR12TS. Suits Nissan Skyline GT-R R32, Nissan Skyline GTS-T R32, Nissan 300ZX Z32. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
Replacement PCMR12TS bearing Used in the following GKTECH products: R32 front upper camber arms (SKU= R32X-FUCA)
PCMR12TS
| IMPERIAL |
METRIC |
| ROD END BALL BORE SIZE |
ROD END BALL BORE SIZE |
| 0.7500 in |
19.0500 mm |
| ROD END BALL WIDTH |
ROD END BALL WIDTH |
| 0.8750 in |
22.2250 mm |
| THREAD LENGTH |
THREAD LENGTH |
| 1.7500 in |
44.4500 mm |
| THREAD SIZE |
THREAD SIZE |
| 3/4 - 16 UNF RH |
3/4 - 16 UNF RH |
| ROD END HEAD DIAMETER |
ROD END HEAD DIAMETER |
| 1.7500 in |
44.4500 mm |
| ROD END MISALIGNMENT ANGLE |
ROD END MISALIGNMENT ANGLE |
| 24 degrees |
24 degrees |
| ROD END STATIC LOAD CAPACITY (lbs) |
ROD END STATIC LOAD CAPACITY (kg) |
| 30,290 lbs |
13,739 kg |
| ROD END MATERIAL |
ROD END MATERIAL |
| Chromoly |
Chromoly |
| LUBRICATION |
LUBRICATION |
| PTFE lined |
PTFE lined |
Suits
- Nissan Skyline GT-R R32 (1989–1994), RB26DETT
- Nissan Skyline GTS-T R32 (1989–1993), RB20DET
- Nissan 300ZX Z32 (1989–2000), VG30DETT
