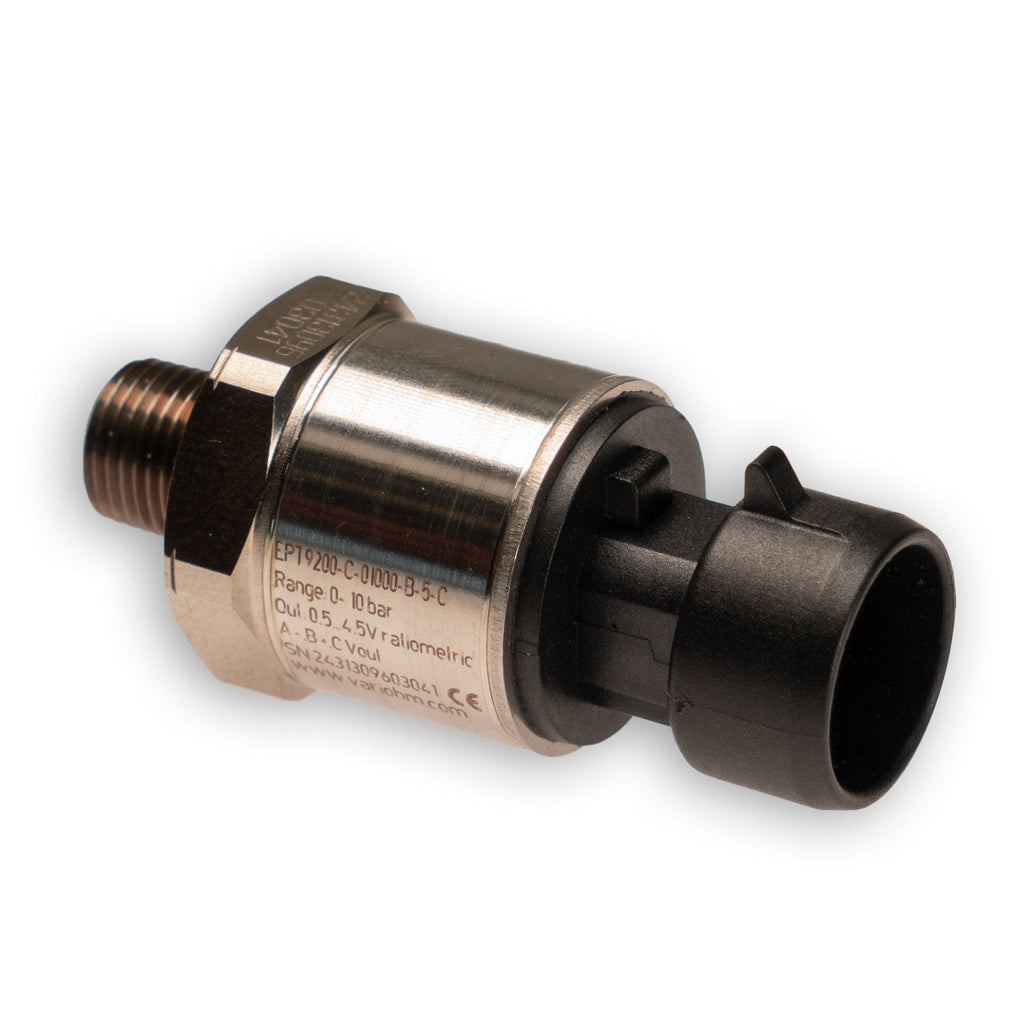

Link ECU Pressure Sensor (PS150) - New Enclosure
Pressure Sensor, oil or fuel, 10 Bar/150psi, NPT Thread
Brand: Link ECU
Part Number: 101-0326
Description:

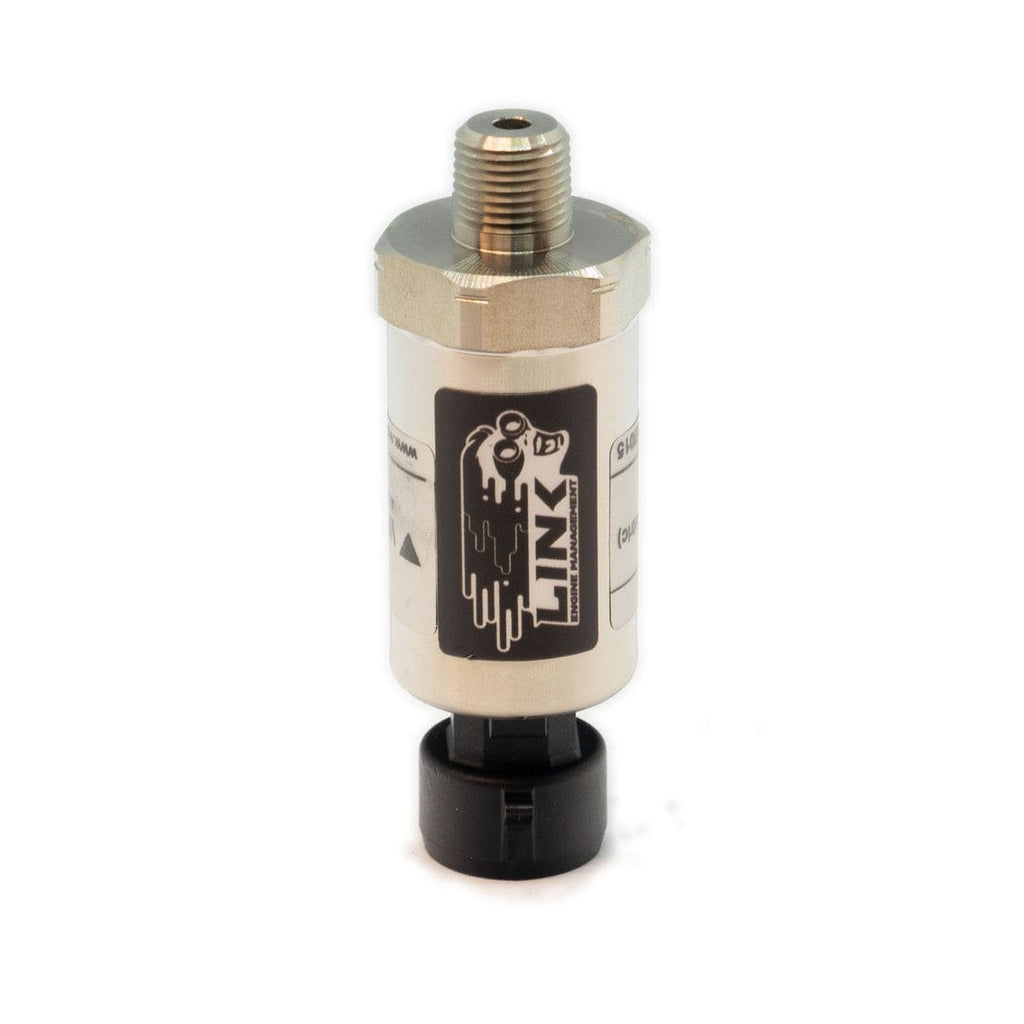

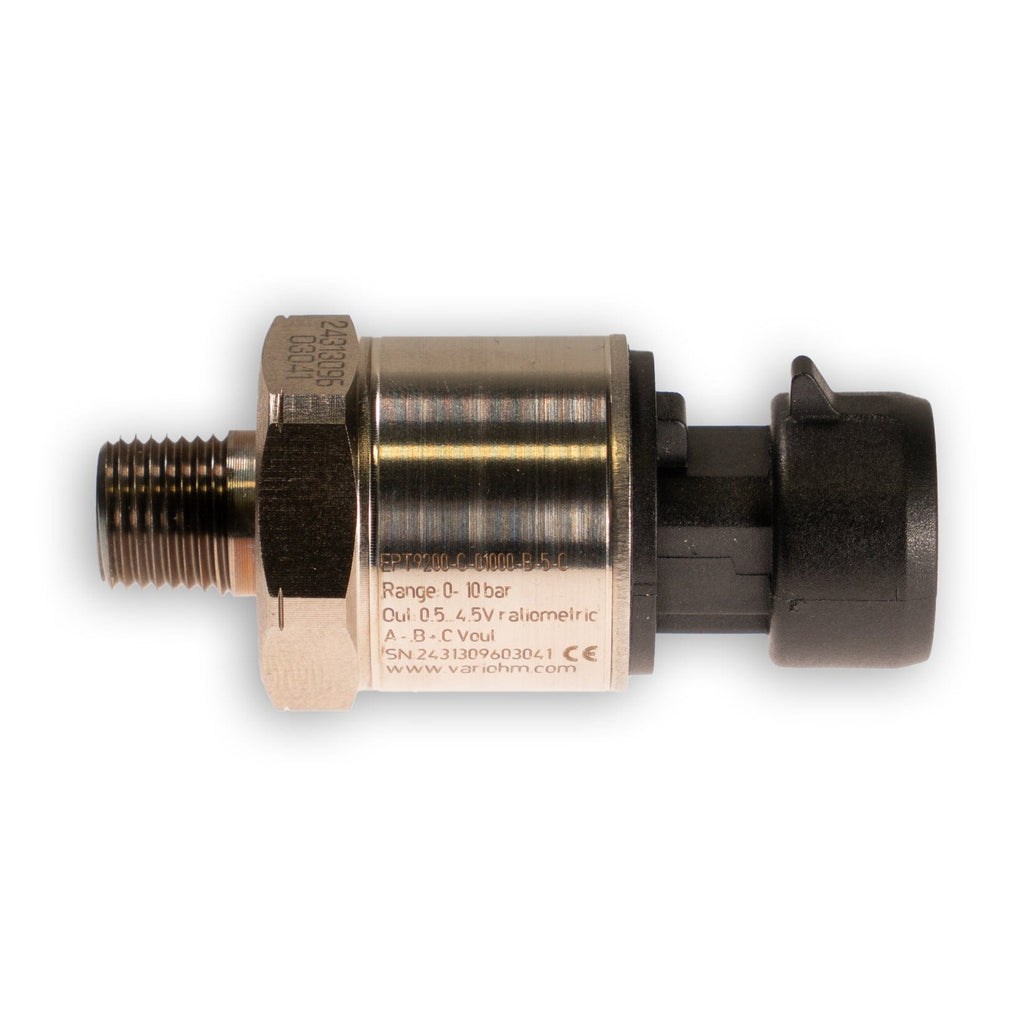

The Link PS150 Pressure Sensor is a compact, high-accuracy pressure sensor designed for demanding motorsport and automotive applications. Featuring a robust stainless steel construction and excellent resistance to vibration, shock and harsh operating environments, it provides reliable pressure measurement for fuel, oil, coolant, air and other compatible fluids. It delivers a 0.5-4.5V ratiometric output, making it ideal for use with Link ECUs and other aftermarket engine management systems.
Suits
- All Link ECUs.
- Other aftermarket ECUs with a 0.5-4.5V analogue input.
What's in the Box
- PS150 Pressure Sensor

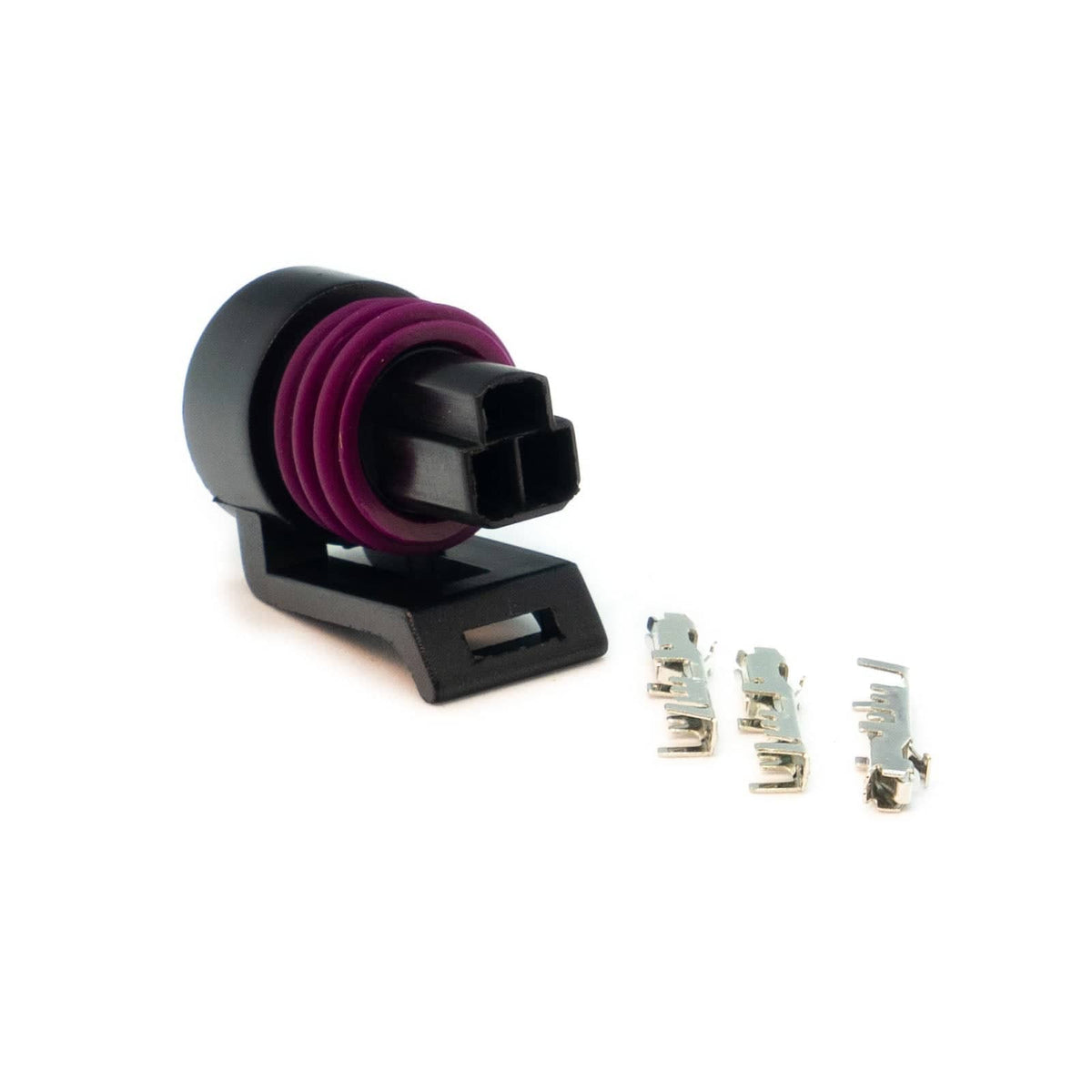

- TI Sensor Connector Kit
- Printed Accessory instructions
Specifications
-

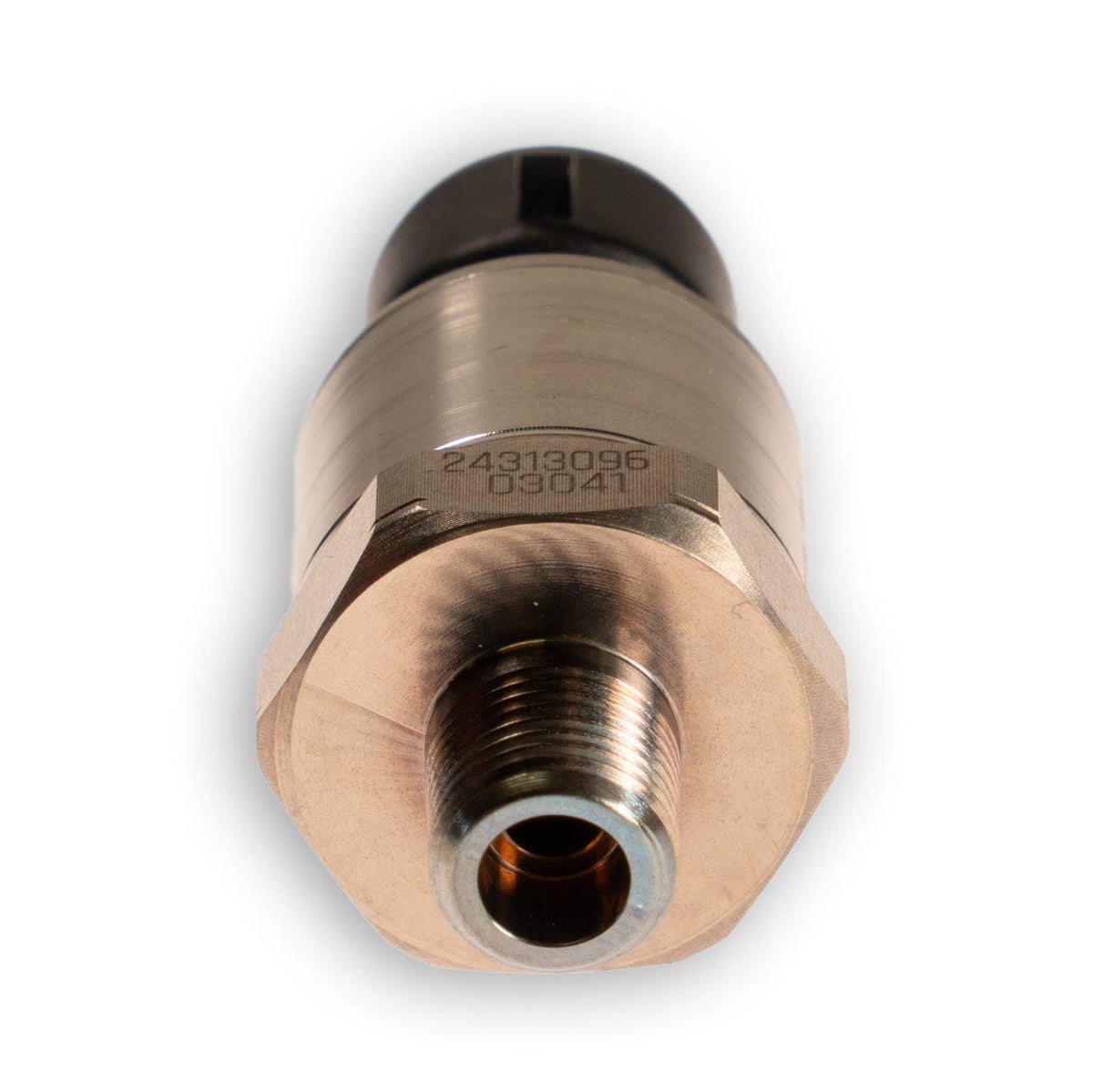

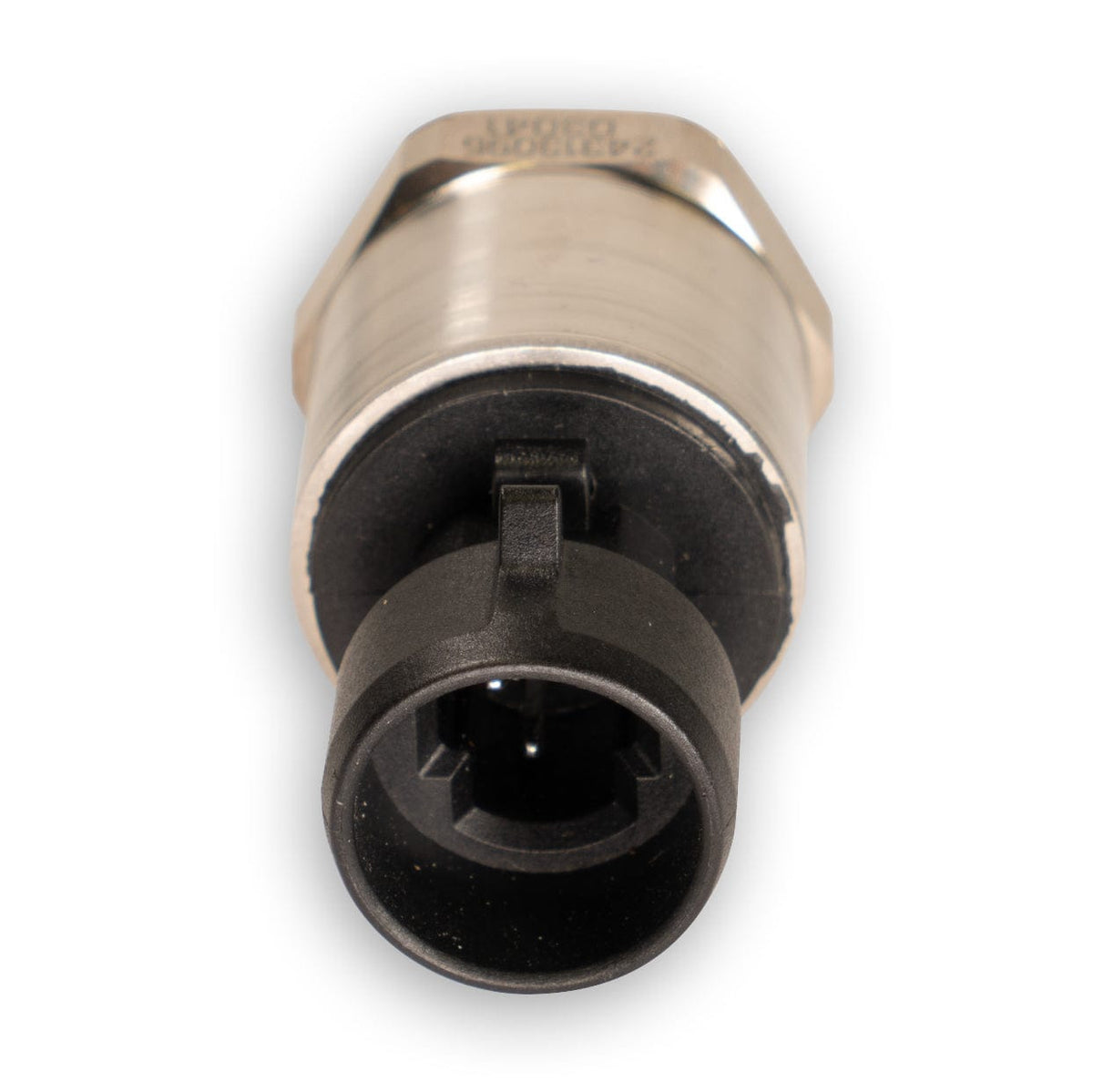

Highlights: The Link PS150 Pressure Sensor has the following specifications:; Pressure range: 0-150 psi (0-10 bar).; 0.5-4.5V ratiometric output.; 5V supply voltage.; Stainless steel sensing element and housing.; High accuracy (+/-0.5% full scale at 25degC).; Long-term stability of <=0.1% full scale per year; 1ms response time.; Excellent vibration and shock resistance.; Operating temperature: -40degC to +125degC.; IP67-rated (connector dependent).; Packard Metri-Pack electrical connector.; 1/4"-18 NPT male pressure port.
-
Product Dimensions: 50mm(L)x25mm(W)x25mm(H); 1.97in(L)x0.98in(W)x0.98in(H)
-
Product Weight: 50 grams (1.76 ounces)
-
Electrical: Operating Voltage Range: 5V; Maximum Input Voltage: 5V
-
PCLink Calibration Name: "Bosch 10 Bar 0 261 230 340"
-
Raw Calibration Specs: 0.5V = 0kPa, 4.5V = 1000kPa
-

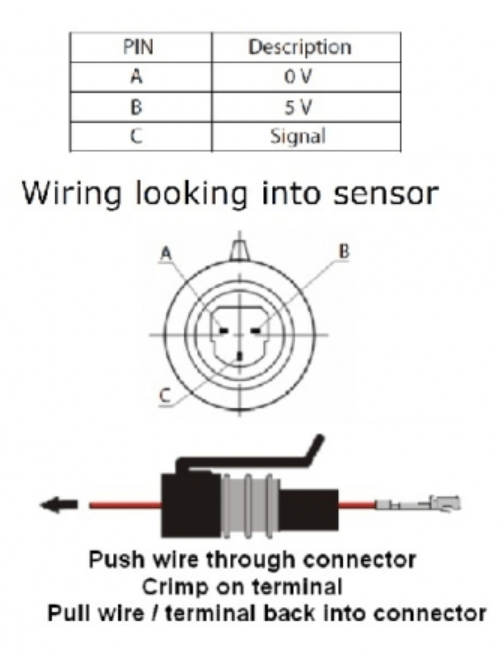

Connector: TI Sensor Connector Kit 101-0130
Notes
- Designed for use with a regulated 5V sensor supply. Compatible with fuel, oil, coolant, air and other compatible media. Ensure the correct pressure range is selected for your application.
