GKTech N-Style S14, S15 200SX braided brake lines (S145-BRKEN)
Suits Nissan S14, S15
Brand: GKTech
Part Number: S145-BRKEN
Description:
GKTech N-Style S14, S15 200SX braided brake lines, part number S145-BRKEN. Suits Nissan Silvia S14, Nissan Silvia S15. Designed and engineered by GKTech in Australia, supplied in New Zealand by Stealth Ride.
The GKTECH braided brake lines are a direct replacement of the factory lines and are stronger (read: more reliable) than the factory rubber lines which are prone to breaking but they also eliminate the spongy feel of the standard brake lines.
The front lines are also longer to compensate for big brake setups or cars with more steering lock (which would see stretching with the factory line)

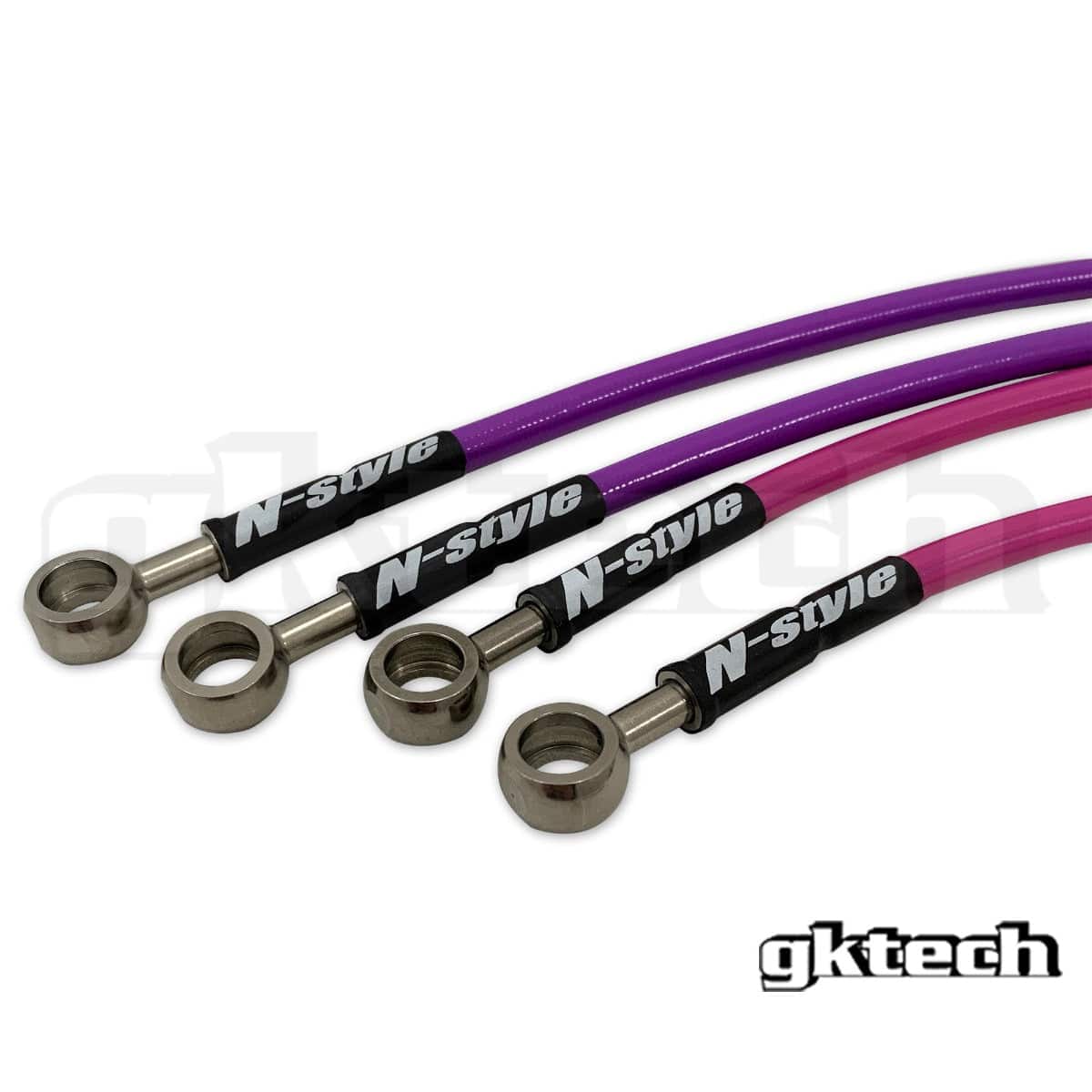

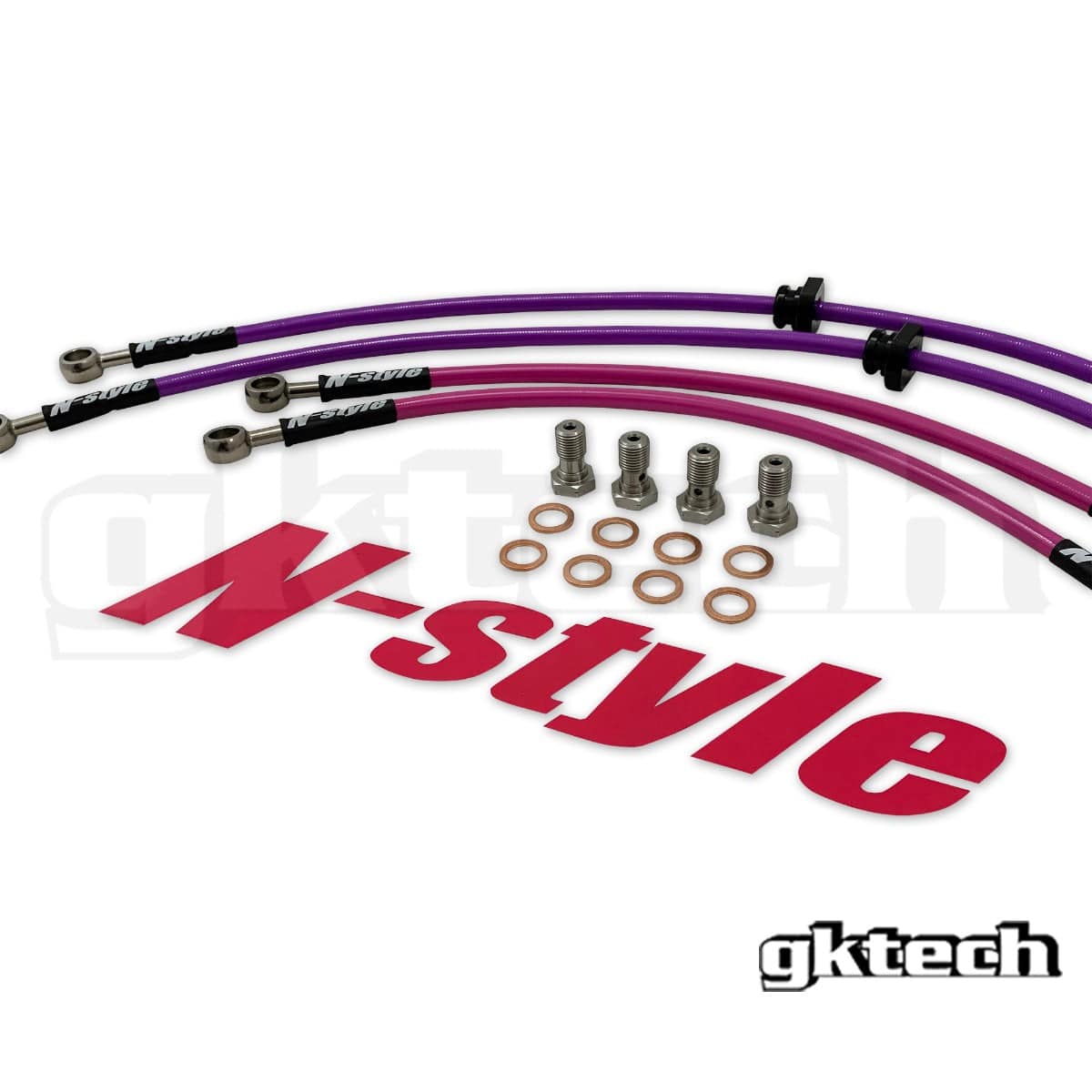

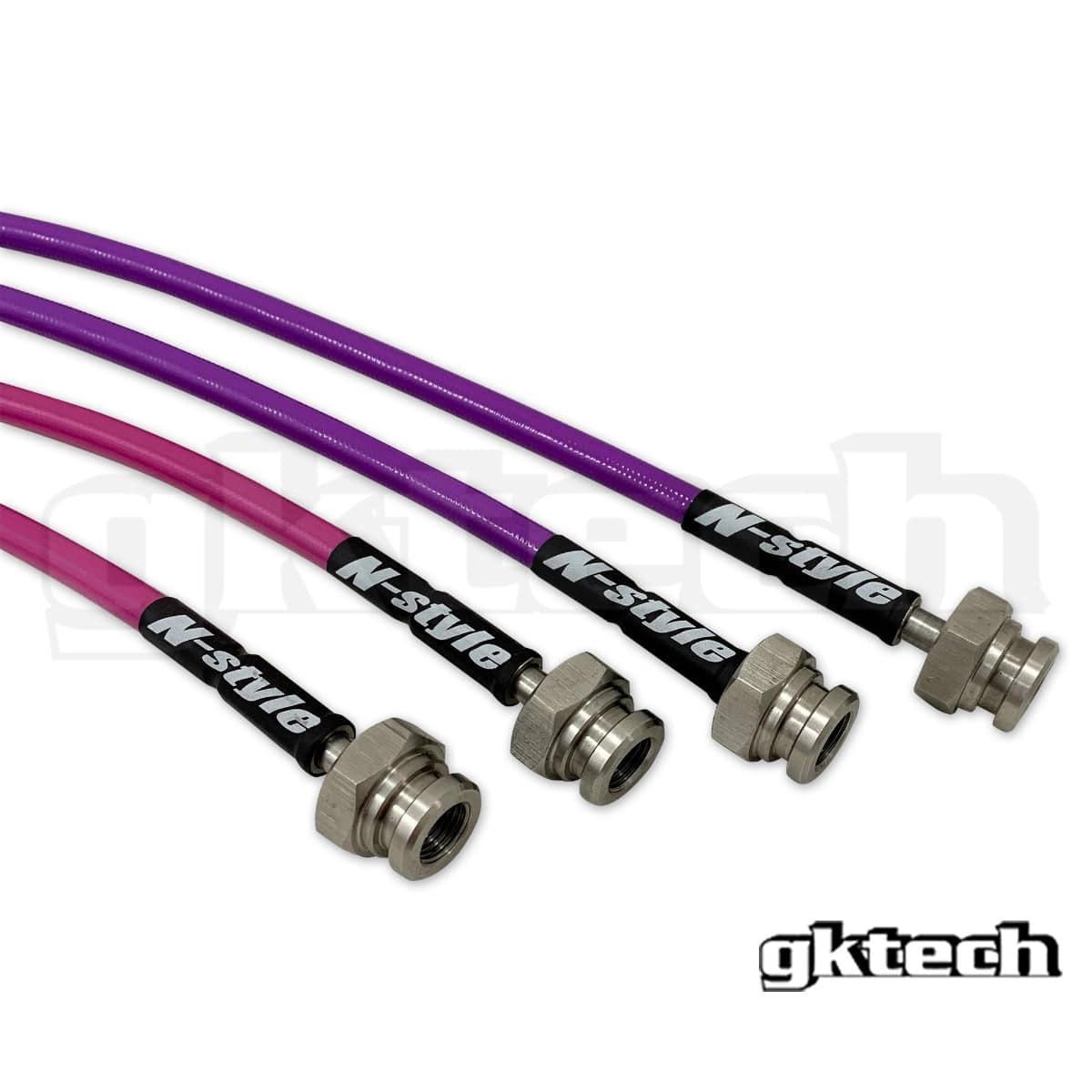

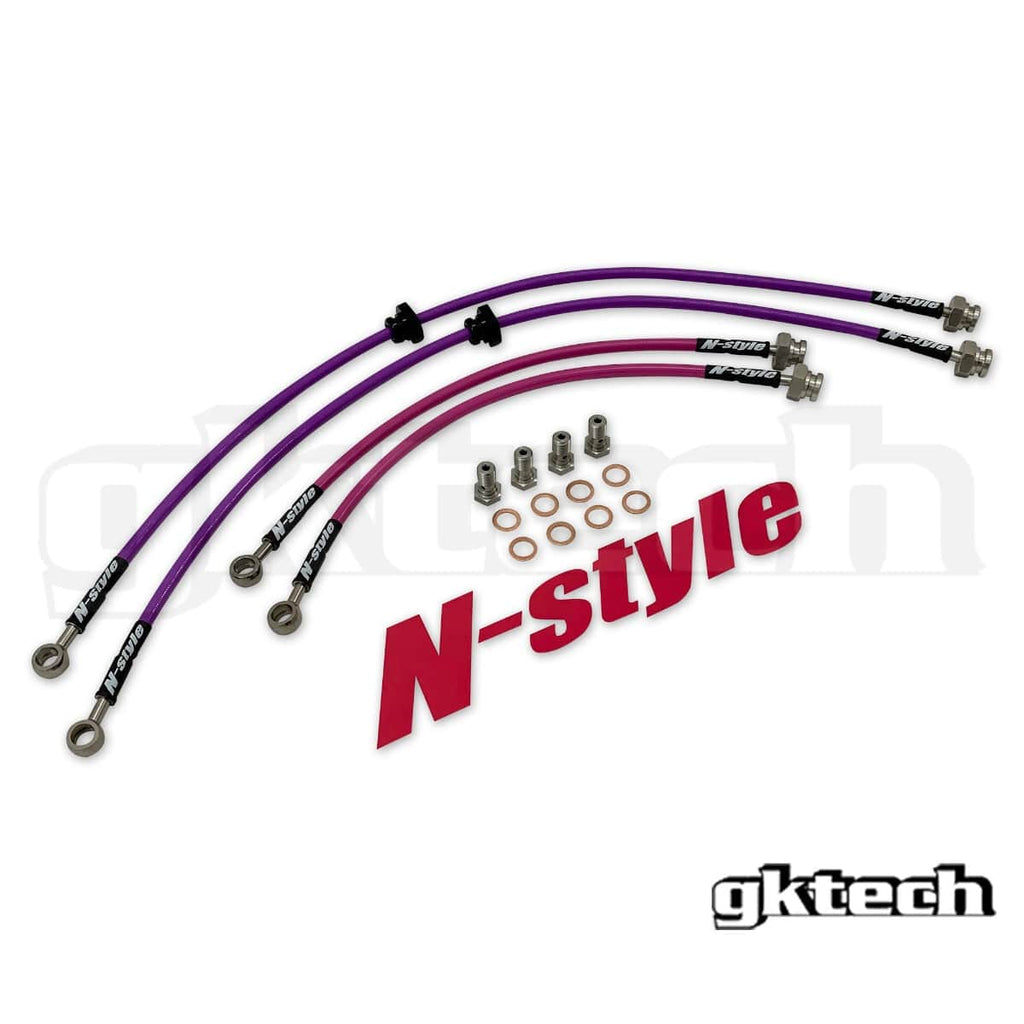

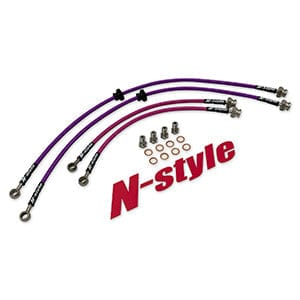

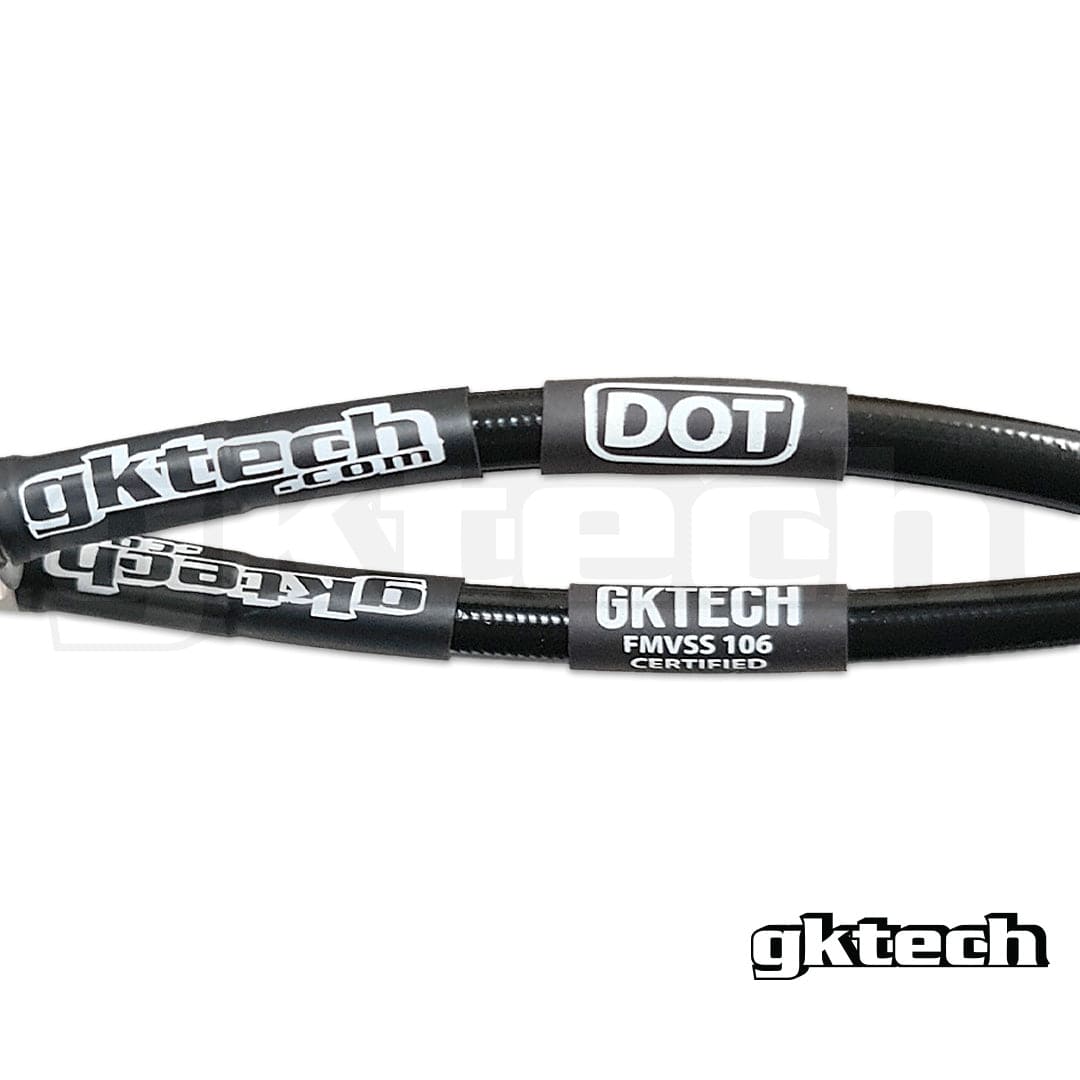

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.
The FMVSS106 testing procedure that the lines have been tested against includes the following tests:
- 370lbs pull test
- 35 hour whip test
- 7000psi burst test
- -45degC to 146degC temperature tests
- 24 hour salt corrosion resistance test
Suits
- Nissan Silvia / 200SX S14 (1993–1998), SR20DET
- Nissan Silvia / 200SX S15 (1999–2002), SR20DET
